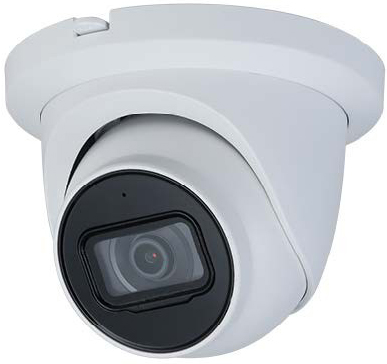

LTS LTDHIP3682NW-28ISM 8MP Lite IR Fixed-focal Eyeball Network Camera 2.8mm

SKU#

:

LTDHIP3682NW-28ISM

Regular Price

:

$229.95

Sale Price

:

$189.95

You Save

$40.00(17.40% )

Availability

:

Usually ships the next business day

Power Supply

:

Pre-Made Ethernet Cable

:

Quantity

:

LTS LTDHIP3682NW-28ISM 8MP Lite IR Fixed-focal Eyeball Network Camera 2.8mm

Model

LTDHIP3682NW-28ISM

Camera

Image Sensor

1/2.7� 8Megapixel progressive CMOS

Effective Pixels

3840 (H) x 2160 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s�1/100,000 s

Min. Illumination

0.009 Lux@F2.0

IR Distance

30 m (98.43 ft)

IR On/Off Control

Auto/Manual

IR LEDs Number

Pan/Tilt/Rotation Range

Pan: 0°-360°
Tilt: 0°-78°
Rotation: 0°-360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm
3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: Pan 105° x Tilt 56° x Diagonal 125°
3.6 mm: Pan 87° x Tilt 47° x Diagonal 104°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 1.0 m (3.3 ft)
3.6 mm: 1.9 m (6.2 ft)

DORI Distance

Lens	2.8mm	3.6mm
Detect	74.7 m (245.1 ft)	106.7 m (350.1 ft)
Observe	29.9 m (98.1 ft)	42.7 m (140.1 ft)
Recognize	14.9 m (48.9 ft)	21.3 m (69.6 ft)
Identify	7.5 m (24.6 ft)	10.7 m (35.1 ft)

Smart event

General IVS Analytics

Tripwire; intrusion

Video

Video Compression

H.265; H.264; H.264B; MJPEG

Smart Codec

Yes

Video Frame Rate

Main stream:
3840 � 2160 (1 fps�15 fps)
2688 � 1520 (1 fps�25/30 fps)
Sub stream:
704 � 576 (1 fps�25 fps)
704 � 480 (1 fps�30 fps)

Stream Capability

2 streams

Resolution

3840 x 2160 (3840 x 2160); 3072 x 2048 (3072 x 2048); 3072 x1728 (3072 x 1728); 2592 x 1944 (2592 x 1944); 2688 x 1520 (2688 x 1520); 3M (2048 x 1536); 2304 x 1296 (2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 Kbps�8192 Kbps
H.265: 12 Kbps�8192 Kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart IR

Yes

Image Rotation

0°/90°/180°/270° (Supports 90°/270° with 2688 x 1520 resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711A; G.711Mu; G.726; AAC

Network

Network

RJ-45 (10/100 Base-T)

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour

Interoperability

ONVIF(Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

User/Host

Edge Storage

LTS Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS

Browser

IE, Chrome, Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 7.2W

Environment

Operating Conditions

-40℃ to +55℃ (�40℉ to +131℉)/less than ≤ 95% RH

Storage Temperature

-40℃ to +60℃ (�40℉ to +140℉)

Protection

IP67

Structure

Casing

Metal

Dimensions

100.9 mm x Φ109.9 mm (3.97" x Φ4.33")

Net Weight

0.48 kg (1.1 lb)

Gross Weight

0.65 kg (1.4 lb)
