Home HD-TVI High Definition Cameras and DVRs HD-TVI Digital Video Recorders 4-32 Channel LTS LTD9232T-FA Platinum Enterprise Level 32 Channel HD-TVI DVR 2U

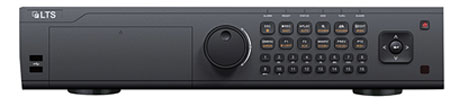

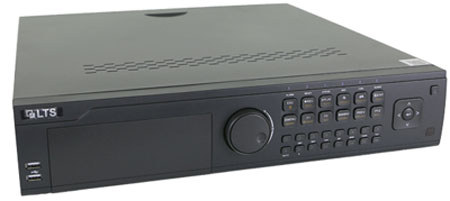

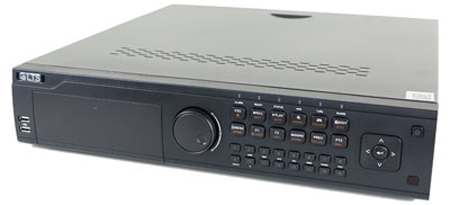

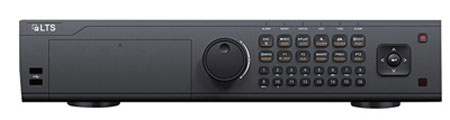

LTS LTD9232T-FA Platinum Enterprise Level 32 Channel HD-TVI DVR 2U
LTS LTD9232T-FA Platinum Enterprise Level 32 Channel HD-TVI DVR 2U
- H.264 & Dual Stream Video Compression
- 2U Case support up to 8 SATA and 48TB
- Bonus: add up to 16CH IP input
- Supports 32CH Simultaneous Playback
- 16 / 1 CH Audio I/O
- 16 / 8 CH Alarm I/O
- 2 Network Ports
- 2 HDMI Interface (1 Spot Out)
- Supports 8 POS
- Supports IP, HD-TVI, and Analog Cameras
Model | LTD9232T-FA | |
Recorder Series | Platinum Series | |
Recorder Channel | 32-Channel | |
Recorder Case | 2U Case | |
Recorder Technology | DVR | |
Featured Product | No | |
Video / Audio input | ||
Video Compression | H.264 | |
Analog and HD-TVI Video Input | 32CH | |
Video Input Interface | BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adapive | |
IP Input | Add up to 16CH ( 1080P@30fps) | |
Audio Compression | G.711u | |
Audio Input | 16-CH, RCA (2.0 Vp-p, 1 kΩ) | |
Two-way Audio Input | 1-CH, RCA (2.0 Vp-p, 1 kΩ) | |
Video / Audio output | ||
HDMI / VGA output | 2 HDMI (1 Spot Out) / 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60Hz | |
Encoding resolution | Main Stream: 1080P (Non-Real-Time) / 720P / VGA / WD1 / 4CIF / CIF Sub-Stream: WD1(12fps) / 4CIF(12fps) / CIF / QCIF / QVGA | |
Frame rate | Main Stream: 1 / 16 fps ~ Real-Time Frame Rate Sub-Stream: 1 / 16 fps ~ Real-Time Frame Rate | |
Video Bit Rate | 32 Kbps-6 Mbps | |
Audio Output | 1CH, RCA (Linear, 1 kΩ) | |
Audio Bit rate | 64 Kbps | |
Dual-Stream | Support | |
Stream Type | Video, Video & Audio | |
Synchronous Playback | 32CH | |
Playback Resolution | 1080P / 720P / V GA / WD1 / 4CIF / CIF / QVGA / QCIF | |
Network | ||
Remote Connections | 128 | |
Network Protocols | TCP / IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS | |
Hard disk | ||
SATA | 8 SATA Interfaces for 8 HDDs; 1 eSATA Interface | |
Capacity | Up to 6TB Capacity for Each Disk | |
External interface | ||
Network Interface | 2:10M / 100M / 1000M Self-Adaptive Ethernet Interface | |
Serial Interface | RS-232, RS-485, Keyboard | |
USB Port | 3 × USB2.0 | |
Alarm In/ Out | 16/ 8 | |
General | ||
Power Supply | 100 ~ 240VAC, 47 ~ 63HZ | |
Consumption | ≤ 67W | |
Working Temperature | 14°F - 131°F (-10 °C ~ +55 °C) | |
Working Humidity | 10% ~ 90% | |
Casing | 19in Rack-Mounted 2U Casing | |
Dimensions ( WxDxH) | 417.5 × 18.5 × 3. 5in (45 × 470 × 90mm) | |
Weight | 17.6lb (≤8kg) | |
Video | No |
