Home HD-TVI High Definition Cameras and DVRs HD-TVI Digital Video Recorders 4-32 Channel LTS LTD9232K-ST Platinum Enterprise Level 32 Channel 4K DVR with 32CH IP Input 2U

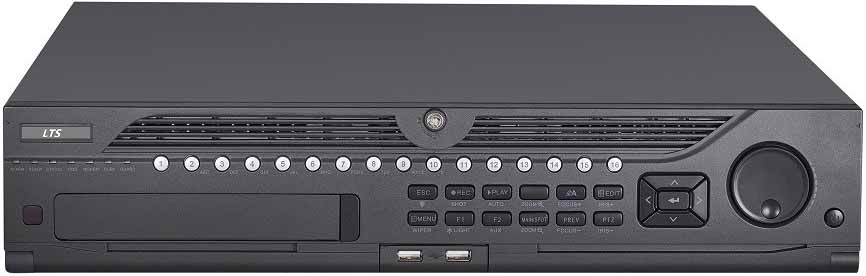

LTS LTD9232K-ST Platinum Enterprise Level 32 Channel 4K DVR with 32CH IP Input 2U
LTS LTD9232K-ST Platinum Enterprise Level 32 Channel 4K DVR with 32CH IP Input 2U
- TVI-P DVR 32ch(5MP TVI)+32IP(4K)
- Alarm/Audio/VGA,HDMIx2 Ul
- H.265+, 8xHDD
- 4K IPC input, 4k output
Model | LTD9232K-ST |
Recorder Series | Professional |
Recorder Channel | 32-Channel |
Recorder Case | 2U Case |
Recorder Technology | DVR |
Featured Product | No |
Video / Audio input | |
Video compression | H.265+/H.265/H.264 Zip+/H.264 |
HD-TVI video input | 32 CH |
HDTVI input | 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 |
AHD input | 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
HDCVI input | 4MP, 1080p25, 1080p30, 720p25, 720p30 |
Audio compression | G.711u |
Audio input | 16-ch, RCA (2.0 Vp-p, 1 KΩ) |
Video / Audio output | |
HDMI/VGA output | HDMI1/VGA: 1 -ch , 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz HDMI2: 1-ch, 4K(3840 × 2160)/30Hz, 2K(2560 × 1440)/60Hz, 1920× 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz |
CVBS output | 1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
Frame rate | Main stream: 8 MP@8fps/5MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p@25fps(P)/30fps(N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N) |
Video bit rate | 32 Kbps-10 Mbps |
Audio output | 2-ch, RCA (Linear, 1KO) |
Audio bit rate | 64 Kbps |
Dual-stream | Support |
Stream type | Video, Video & Audio |
Synchronous playback | 16 CH |
Network | |
Remote connection | 128 |
Network protocols | TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, IP Portal, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
Hard disk | |
SATA | 8 SATA |
Capacity | Up to 8TB capacity for each disk |
External interface | |
Network interface | 2, RJ45 10M/100M/1000Mself-adaptive Ethernet interface |
Serial interface | RS-232, RS-485 (full-duplex), Keyboard |
USB port | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
Alarm in / out | 16/8 |
General | |
Power supply | AC 100 to 240V |
Power Consumption | ≤ 74 W |
Working temperature | -10 °C~+55°C(14°F ~ 131 °F) |
Working humidity | 10% ~ 90% |
Dimension | 442 × 470 × 90 mm (17.4 × 18.5 × 3.5 inch) |
Weight | ≤10 kg (22.0 lb) |
