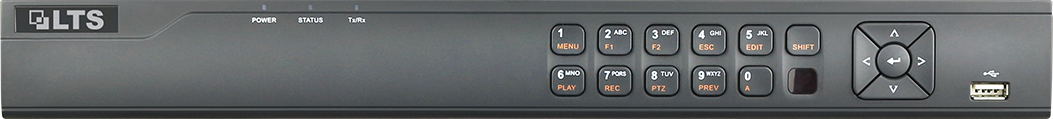

LTS LTD8516M-STN Turbo Smart DVR

Model	LTD8516M-STN
Recorder Series	TurboHD
Recorder Channel	16-Channel
Recorder Case	1U Case
Recorder Technology	TVI DVR
Motion Detection 2.0¹
Human/Vehicle Analysis	Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported
Perimeter Protection¹
Human/Vehicle Analysis	Up to 4-ch
Recording
Video compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution	Main stream: 8 MP@8 fps/5 MP@12 fps/3K@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video bit rate	32 Kbps to 10 Mbps
Dual stream	Support
Stream type	Video, Video & Audio
Audio compression	G.711u
Audio bit rate	64 Kbps
Video and Audio
IP video input²	8-ch (up to 24-ch): Enhanced IP mode on: 16-ch (up to 32-ch), each up to 4 Mbps Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Total bandwidth	128Mbps
Analog video input	16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input	8 MP@15 fps, 5 MP@20 fps, 3K@20 fps, 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
AHD input	5 MP@20 fps, 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
HDCVI input	5 MP@20 fps, 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
CVBS input	PAL/NTSC
CVBS output	1-ch, BNC (1.0 Vp-p, 75 Ω), Resolution: PAL: 704 � 576, NTSC: 704 � 480
VGA output	1-ch, 1920 � 1080/60Hz, 1280 � 1024/60Hz, 1280 � 720/60Hz, 1024 � 768/60Hz
HDMI output	1-ch, 4K (3840 � 2160)/30Hz, 2K (2560 � 1440)/60Hz, 1920 � 1080/60Hz, 1280 � 1024/60Hz, 1280 � 720/60Hz, 1024 � 768/60Hz
Video output mode	HDMI/VGA simultaneous output
Audio input	1-ch (up to 16-ch is optional), RCA (2.0 Vp-p, 1 KΩ) 16-ch via coaxial cable
Audio output	1-ch, RCA (Linear, 1 KΩ)
Two-way audio	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
Synchronous playback	16-ch
Network
Remote connection	128
Network protocol	TCP/IP, PPPoE, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP�, HTTPS, ONVIF
Network interface	1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Wi-Fi	Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary interface
SATA	2 SATA interfaces
Capacity	Up to 10 TB capacity for each disk
Serial interface	RS-485 (half-duplex)
USB interface	Front panel: 1 � USB 2.0 Rear panel: 1 � USB 3.0
General
Power supply	12 VDC, 5 A
Consumption (without HDD)	≤ 19 W
Working temperature	-10 °C to +55 °C (+14 °F to +131 °F)
Working humidity	10% to 90%
Dimension (W � D � H)	380 � 320 � 48 mm (15.0 � 12.6 � 1.9 inch)
Weight (without HDD)	≤ 2.1 kg (4.6 lb)
Note	1: Motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enable one function will make the other one unavailable. 2: Enhanced IP mode might be conflicted with smart events (motion detection 2.0 and perimeter protection) or other functions, please refer to the user manual for details.

free shipping

orders $500 and up

Search Product

Products

customer services

By Manufacturer

By Price

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

LTS LTD8516M-STN Turbo Smart DVR

SKU#

:

LTD8516M-STN

Regular Price

:

$599.95

Sale Price

:

$429.95

You Save

$170.00(28.34% )

Availability

:

Usually ships the next business day

Hard Drive

:

Warranty

:

Hi-Res Security Monitor

:

Quantity

:
