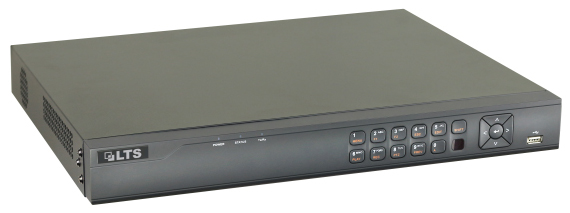

LTS LTD8516K-ST Platinum Professional Level 16 Channel HD-TVI 4.0 DVR
LTS LTD8516K-ST Platinum Professional Level 16 Channel HD-TVI 4.0 DVR
- H.265+ 16 Channel Video Recorder
- 4/1 RCA I/O
- 16 channels support HD-TVI / AHD/ ANALOG / CVI / IP input (5 in 1)
- 16 channels support up to 5MP HD-TVI input
- Up to 2-ch 6MP IP cameras input
- Support Live View, Storage, Playback up to 16 HD-TVI/Analog Cameras + 2 IP Cameras
- Up to 4k HDMI Video Output
- CVBS Output
- 2 SATA up to 16TB HDD
- 2 USB 2.0
Model | LTD8516K-ST | |
Recorder Series | Platinum Series | |
Recorder Channel | 16-Channel | |
Recorder Case | 1U Case | |
Recorder Technology | TVI DVR | |
Featured Product | No | |
VIDEO/AUDIO INPUT | ||
Video Compression | H.265+ / H.265 / H.264 Zip+ / H.264 | |
Video Input | 16ch BNC (1.0 Vp-p, 75 Ω), supporting coaxitron connection | |
IP Input | 2-ch, Up to 6 MP Resolution | |
HDTVI Input | 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 | |
AHD Input | 1080p25, 1080p30, 720p25, 720p30 | |
HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 | |
CVBS Input | Support | |
Audio Compression | G.711u | |
Audio Input | 4-CH, RCA (2.0 Vp-p 1 kΩ) | |
Two-Way Audio Input | 1-CH, RCA (2.0 Vp-p 1 kΩ) | |
VIDEO/AUDIO OUTUPUT | ||
HDMI/VGA Output | VGA: 1-ch, 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz HDMI: 1-ch, 4K(3840×2160)/30Hz, 2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | |
Encoding Resolution | 5 MP/4 MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF | |
CVBS Output | 1-ch, BNC (1.0 Vp-p, 1 kΩ), resolution: PAL: 704×576, NTSC: 704×480 | |
Frame Rate | Main stream: 5MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N) Sub-stream: WD1/4CIF/CIF@25fps(P)/30fps(N) | |
Video Bit Rate | 32 Kbps - 10 Mbps | |
Audio Output | 1-ch, RCA (Linear, 1 kΩ) | |
Audio Bit Rate | 64 Kbps | |
Dual Stream | Support | |
Stream Type | Video, Video & Audio | |
Synchronous Playback | 16ch | |
NETWORK | ||
Remote Connections | 128 | |
Network Protocols | TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF | |
HARD DISK | ||
SATA | 2 SATA | |
Capacity | Up to 8TB capacity for each disk | |
EXTERNAL INTERFACE | ||
Network Interface | 1: 10M / 100M self-adaptive Ethernet interface | |
Serial Interface | RS-485 (half-duplex) | |
USB Port | Front panel: 1×USB 2.0; Rear panel: 1×USB 3.0 | |
Alarm In/Out | 16/4 | |
GENERAL | ||
Power Supply | DC12V | |
Consumption | ≤ 25W | |
Working Temperature | -10°C ~ +55°C (14°F - 131°F) | |
Working Humidity | 10% ~ 90% | |
Chassis | 1U | |
Dimensions (WxDxH) | 380×320×45 mm (15.0×12.6×1.8 inch) | |
Weight | ≤ 4.4 lbs (2 Kg) |
