Home HD-TVI High Definition Cameras and DVRs HD-TVI Digital Video Recorders 4-32 Channel LTS LTD8504T-ST 3.0MP Platinum Advanced Level HD-TVI 4CH DVR

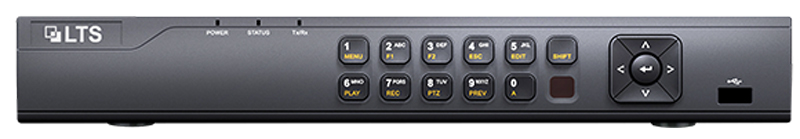

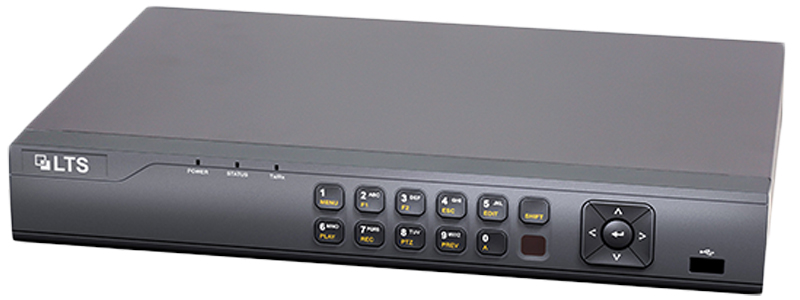

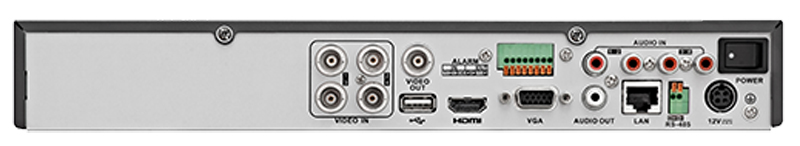

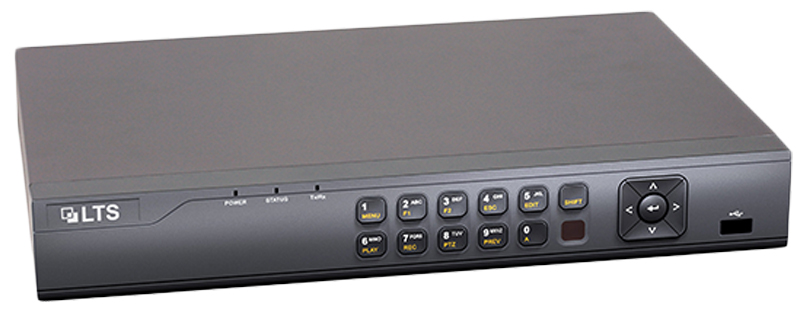

LTS LTD8504T-ST 3.0MP Platinum Advanced Level HD-TVI 4CH DVR
LTS LTD8504T-ST 3.0MP Platinum Advanced Level HD-TVI 4CH DVR
- 4 CH HD-TVI DVR
- Support Live View, Storage, Playback up to 4CH HD-TVI 3MP / Analog / Analog HD Cameras+ 2CH IP Camera up to 4.1MP
- Up to 1080P (1920x1080) HDMI Video Output
- 3MP@15fps/1080p@30fps
- CVBS Output
- 1 SATA up to 8TB HDD
- H.264/H.264 Zip+
- 2 USB 2.0
- 4CH Audio Input
- Long distance transmission over twisted-pair cable and coax cable
- Supports LTS 3MP HD-TVI Cameras
Model | LTD8504T-ST | |
Recorder Series | Platinum Series | |
Recorder Channel | 4-Channel | |
Recorder Case | 1U Case | |
Recorder Technology | TVI DVR | |
Featured Product | No | |
Video/Audio Input | ||
Video Compression | H.264 Zip+/H.264 | |
Video Input | 4ch BNC (1.0Vp-p, 75Ω) | |
IP Input | Up to 2CH (Support ONVIF, up to 4MP Resolution) | |
Audio Compression | G.711u | |
Audio Input | 4-CH, RCA (2.0 Vp-p kΩ) | |
Two-Way Audio Input | 1-CH, RCA (2.0 Vp-p kΩ) | |
Video/Audio Outuput | ||
HDMI/VGA Output | 1 -ch , 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz | |
Encoding resolution | 3MP@15fps/1080p@30fps/720p@30fps | |
CVBS output | 1-ch, BNC (1.0 Vp-p, 1 kΩ) | |
Frame Rate | Main stream: 30f ps(N)/25fps(P) Sub-stream:WD1/4CIF@12fps (non-real-time); CIF/QVGA/QCIF (real time) | |
Video Bit Rate | 32 Kbps-10 M bps | |
Audio Output | 1-ch, RCA (Linear, 1 kΩ) | |
Audio Bit Rate | 64 Kbps | |
Dual Stream | Support | |
Stream Type | Video, Video & Audio | |
Synchronous Playback | 4ch | |
Network | ||
Remote Connections | 128 | |
Network Protocols | TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, SAD P, NFS, iSCSI, UPnP™, HTTPS, ONVIF | |
HARD DISK | ||
SATA | 1 SATA | |
Capacity | Up to 8 TB capacity for each disk | |
External Interface | ||
Network interface | 1:10M / 100Mself-adapt ive Ethernet interface | |
Serial interface | RS-4 85 | |
USB Port | 2 × USB2.0 | |
Alarm In/Out | 4/1 | |
General | ||
Power supply | DC12V | |
Consumption | ≤ 15W | |
Working temperature | -10 °C ~ +55 °C(14°F - 131°F) | |
Working humidity | 10% ~ 90% | |
Chassis | 1U chassis | |
Dimensions (WxDxH) | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) | |
Weight | ≤1.5 Kg (4. lb) |
