Home HD-TVI High Definition Cameras and DVRs HD-TVI Digital Video Recorders 4-32 Channel LTS LTD8504K-DT Platinum 4 Channel 5MP Deep Learning DVR

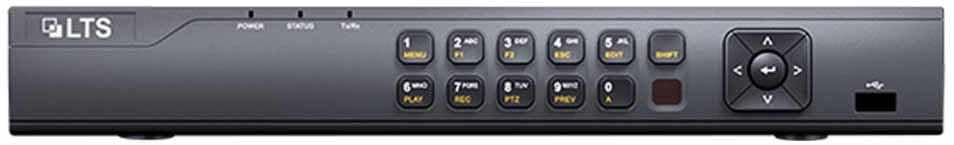

LTS LTD8504K-DT Platinum 4 Channel 5MP Deep Learning DVR
LTS LTD8504K-DT Platinum 4 Channel 5MP Deep Learning DVR
- 4-ch Deep Learning,
- 4 Turbo HD/CVI / AHD / CVBS self-adaptive interfaces input,
- 4-ch video&4-ch audio input,
- 2-ch IP video input,
- 1 SATA interface,
- H.265/H.265+ compression,
- 5MP: 12fps, 4MP: 15fps, 3MP: 18fps, 1920×1080P: 25(P)/30(N) fps/ch,
- Alarm I/O: 4/1, support CVBS output, standalone 1U case
Model | LTD8504K-DT |
Recorder Series | Professional |
Recorder Channel | 4-Channel |
Recorder Case | 1U Case |
Recorder Technology | DVR |
Featured Product | No |
VIDEO/AUDIO INPUT | |
Video Compression | H.265+/H.265/H.264 Zip+/H.264 |
Video Input | 4ch BNC interface (1.0Vp-p, 75 O), supporting coaxitron connection |
IP Input | 2-ch, Up to 6 MP resolution, Supports H.265+/H.265/H.264+/H.264 IP cameras |
HDTVI input | 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60 |
AHD input | 1080p25, 1080p30, 720p25, 720p30 |
HDCVI input | 1080p25, 1080p30, 720p25, 720p30 |
CVBS input | Support |
Audio Compression | G.711u |
Audio Input | 4-CH, RCA (2.0 Vp-p kΩ) |
Two-Way Audio Input | 1-CH, RCA (2.0 Vp-p kΩ) |
VIDEO/AUDIO OUTUPUT | |
HDMI/VGA Output | 1 -ch , 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz |
Encoding resolution | 5 MP/4 MP/3MP/1080p/720p/WD1/4CIF/VGA/CIFs |
CVBS output | 1-ch, BNC (1.0 Vp-p, 1 kO), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
Frame Rate | Main stream: 5MP@12fps/4 MP@15fps/3 MP@18fps;1080p/720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fp s (N) |
Video Bit Rate | 32 Kbps-10 M bps |
Audio Output | 1-ch, RCA (Linear, 1 kO) |
Audio Bit Rate | 64 Kbps |
Dual Stream | Support |
Stream Type | Video, Video & Audio |
Synchronous Playback | 4ch |
NETWORK | |
Remote Connections | 128 |
Network Protocols | TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, SAD P, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
HARD DISK | |
SATA | 1 SATA |
Capacity | Up to 8TB capacity for each disk |
EXTERNAL INTERFACE | |
Network interface | 1, RJ45 10M/100M self-adaptive Ethernet interface |
Serial interface | RS-4 85 (half-duplex) |
USB Port | 2 × USB2.0 |
Alarm In/Out | 4/1 |
GENERAL | |
Power supply | DC12V |
Consumption | ≤ 10W |
Working temperature | -10 °C ~ +55 °C(14°F - 131°F) |
Working humidity | 10% ~ 90% |
Chassis | 1U |
Dimensions (WxDxH) | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
Weight | ≤1.6Kg (2.6 lb) |
