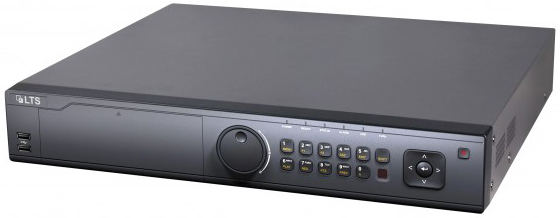

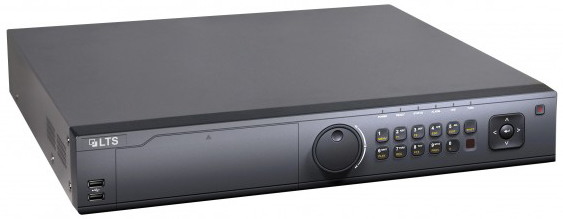

LTS LTD8432K-ST Platinum Enterprise Level 32 Channel HD-TVI DVR - with RAID
LTS LTD8432K-ST Platinum Enterprise Level 32 Channel HD-TVI DVR - with RAID
- 1.5U case with 4 HDD interface
- 32 Channel Video Recorder
- Support HD-TVI (up to 5MP) / AHD/ ANALOG / CVI / IP input (5 in 1)
- Support Live View, Storage, Playback up to 32 HD-TVI/Analog Cameras + 8 IP Cameras up to 8MP
- Up to 40CH 4K(8MP) IPC input
- Up to 4K (3840*2160) HDMI Video Output
- HDMI 1/VGA output @1920*1080, HDMI 2 output@ 4K, CVBS output
- 4 SATA up to 8TB each HDD
- 2 USB 2.0/ 1 USB 3.0
- RAID 0, 1, 5, 6, 10
Model | LTD8432K-ST | |
Recorder Series | Platinum Series | |
Recorder Channel | 32-Channel | |
Recorder Case | 1.5U Case | |
Recorder Technology | TVI DVR | |
Featured Product | Yes | |
Video / Audio input | ||
Video compression | H.265+/H.265/H.264 Zip+/H.264 | |
Analog and HD-TVI Video Input | 32CH / BNC interface (1.0Vp-p, 75 O), supporting coaxitron connection | |
IP Input | 8-ch (up to 40-ch); Up to 8 MP resolution; Supports H.265+/H.265/H.264+/H.264 IP cameras | |
Audio Compression | G.711u | |
Audio Input | 4-ch, RCA (2.0 Vp-p, 1kΩ) | |
Video / Audio output | ||
HDMI/ VGA Output | HDMI1/VGA: 1 -ch , 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz HDMI2: 1-ch, 4K(3840 × 2160)/30Hz, 2K(2560 × 1440)/60Hz, 1920× 1080/60Hz, 1280 × 1024/60Hz,1280 × 720/60Hz, 1024 × 768/60 Hz | |
Encoding Resolution | 5 MP/4 MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF | |
Frame rate | Main stream: 5MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30f ps ( N) | |
Video bit rate | 32Kbps-10Mbps | |
Audio Output | 1-CH, RCA (Linear, 1 kΩ) | |
Audio Bit Rate | 64 Kbps | |
Dual-Stream | Support | |
Stream Type | Video, Video & Audio | |
Synchronous Playback | 16CH | |
Network | ||
Remote Connections | 128 | |
Network Protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS | |
Hard disk | ||
SATA | 4 SATA Interfaces for 4 HDDs; 1 eSATA interface | |
Capacity | Up to 8TB capacity for each disk | |
External interface | ||
Network Interface | 2, RJ45 10M/100M/1000Mself-adaptive Ethernet interface | |
Serial Interface | RS-232, RS-485 (full duplex), Keyboard | |
USB Port | Front panel 2 x USB 2.0 / 1x USB 3.0 | |
Alarm In/Out | 16/4 | |
General | ||
Power Supply | AC100 to 240V | |
Consumption | ≤65W | |
Working Temperature | -10°C ~ 55°C(14°F-131°F) | |
Working Humidity | 10%~90% | |
Chassis | 1.5U Chassis | |
Dimesnsions (WxDxH) | 445 x 390 x 70mm (17.5x15.3x2.7inch) | |
Weight | ≤7Kg (15.4lb) |
