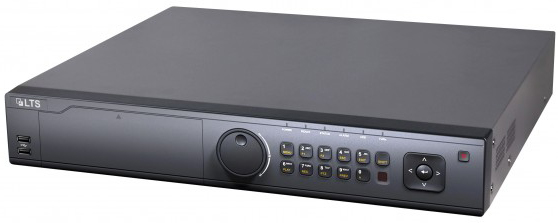

LTS LTD8416K-ST Platinum Enterprise Level 16 Channel 4K HD-TVI DVR - with RAID
LTS LTD8416K-ST Platinum Enterprise Level 16 Channel 4K HD-TVI DVR - with RAID
- 1.5U case with 4 HDD interface
- 16 Channel Video Recorder
- Support HD-TVI (up to 5MP) / AHD/ ANALOG / CVI / IP input (5 in 1)
- Support Live View, Storage, Playback up to 16 HD-TVI/ Analog Cameras + 2 IP Cameras up to 8MP
- Up to 18CH 8MP input
- Up to 4K (3840*2160) HDMI Video Output
- HDMI 1/VGA output @1920*1080, HDMI 2 output@4K
- CVBS output
- 4 SATA up to 8TB each HDD
- 2 USB 2.0
- RAID 0, 1, 5, 6, 10
Model | LTD8416K-ST | |
Recorder Series | Others | |
Recorder Channel | 16-Channel | |
Camera Technology | IP / Network | |
Recorder Case | 1.5U Case | |
Recorder Technology | TVI DVR | |
Featured Product | No | |
Video / Audio input | ||
Video compression | H.265+/H.265/H.264 Zip+/H.264 | |
HD-TVI video input | 16 CH | |
Video input interface | BNC interface (1.0Vp-p, 75 Ω), supporting coaxitron connection | |
IP input | 2-ch (up to 18-ch), Up to 8 MP resolution, Supports H.265+/H.265/H.264 Zip+/H.264 IP cameras | |
Supported camera types | HD-TVI, IP, AHD, CVI, Analog | |
Audio compression | G.711u | |
Audio input | 4-ch, RCA (2.0 Vp-p, 1 kΩ) | |
Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent) | |
Video / Audio output | ||
Encoding resolution | Main stream: 5 MP/4 MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF | |
Frame rate | Main stream: 5MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30 fps (N) | |
Video bit rate | 32 Kbps-10 Mbps | |
Audio output | 2-ch, RCA (Linear, 1KΩ, for VGA output and CVBS output respectively) | |
Audio bit rate | 64 Kbps | |
Dual-stream | Support | |
Stream type | Video, Video & Audio | |
Synchronous playback | 16 CH | |
Network | ||
Remote connection | 128 | |
Network protocols | TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, IP Portal, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP | |
Hard disk | ||
SATA | 4 SATA interfaces for 4 HDDs; 1 eSATA interface | |
Capacity | Up to 6TB capacity for each disk | |
External interface | ||
Network interface | 1; 10M / 100M / 1000M self-adaptive Ethernet interface | |
Serial interface | RS-232, RS-485, Keyboard | |
USB port | Fr ont panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 | |
Alarm in / out | 16 / 4 | |
General | ||
Power supply | AC 100 to 240 V | |
Power Consumption | ≤ 65W | |
Working temperature | -10 °C ~ +55 °C(14°F - 131°F) | |
Working humidity | 10% ~ 90% | |
Dimension | 445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch) | |
Weight | ≤5Kg |
