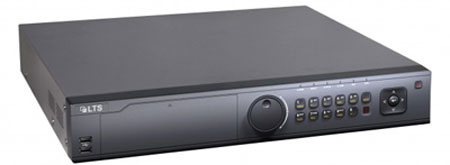

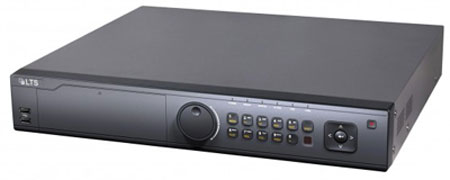

LTS LTD8408T-ST Platinum Enterprise Level 8 Channel HD-TVI DVR 1.5U
LTS LTD8408T-ST Platinum Enterprise Level 8 Channel HD-TVI DVR 1.5U
- H.264 & Dual-stream video compression
- Support HD-TVI/analog/IP camera triple hybrid
- Full channel@1080P resolution real-time recording
- HDMI and VGA output at up to 1920×1080P resolution
- 4 SATA HDD interface, up to 6TB for each disk
- Support NAS, IP SAN Network Storage4 x POS
- Long transmission distance over coax cable
- Support up to 8-ch synchronous playback
Model | LTD8408T-ST | |
Recorder Series | Platinum Series | |
Recorder Channel | 8-Channel | |
Recorder Case | 1U Case | |
Recorder Technology | DVR | |
Featured Product | No | |
Video / Audio input | ||
Video compression | H.264 | |
HD-TVI video input | 8-ch | |
Video input interface | BNC Interface (1.0Ω) | |
IP input | 2ch(1080p@30fps) | |
Audio compression | G.711u | |
Audio input | 4-ch, RCA (2.0 Vp-p, 1 KΩ) | |
Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 kΩ) | |
Video / Audio output | ||
HDMI/VGA output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz | |
Encoding resolution | Main stream: 1080P / 720P / VGA / WD1 / 4CIF / CIF Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA | |
Frame rate | Main stream: 1/16 fps ~ Real time frame rate Sub-stream: 1/16 fps ~ Real time frame rate | |
Video bit rate | 32 Kbps-8 Mbps | |
Audio output | 2-ch, RCA (Linear, 1KΩ, for VGA output and CVBS output respectively) | |
Audio bit rate | 64 Kbps | |
Dual-stream | Support | |
Stream type | Video, Video & Audio | |
Synchronous playback | 8-ch | |
Playback resolution | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF | |
Network | ||
Remote connection | 128 | |
Network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS | |
Hard disk | ||
SATA | 2 SATA interface | |
Capacity | Up to 4TB capacity for each disk | |

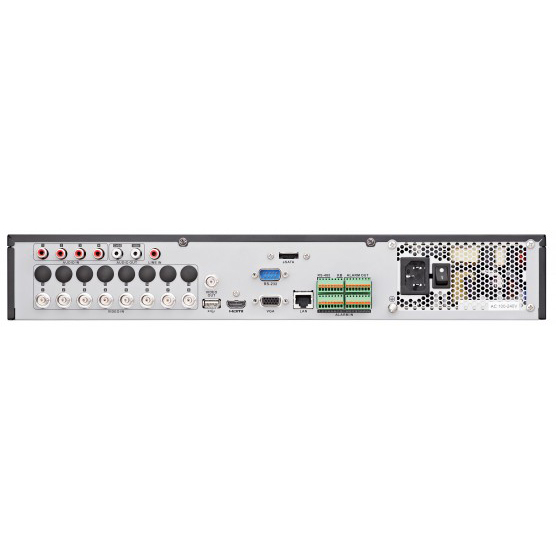

External interface | ||
Network interface | 1:10M / 100M self-adaptive Ethernet interface | |
Serial interface | RS-232, RS-485, Keyboard | |
USB port | 3 × USB2.0 | |
Alarm in/out | 16/4 | |
General | ||
Power supply | 100 ~ 240VAC, 47 ~ 63HZ | |
Power Consumption | ≤ 40W | |
Working temperature | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) | |
Working humidity | 10% ~ 90% | |
Chassis | 19-inch rack-mounted 1.5U chassis | |
Dimension | 445 × 390 × 70 mm (17.5 × 15.3 × 2.7 inch) | |
Weight | ≤5Kg (11.0lb) | |
Video | No |
