Home HD-TVI High Definition Cameras and DVRs HD-TVI Digital Video Recorders 4-32 Channel LTS LTD8308T-ST HD-TVI/Analog/IP Camera DVR 1080p 30fps Recording All Channels

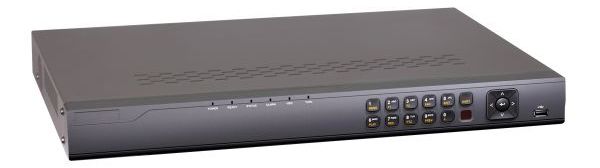

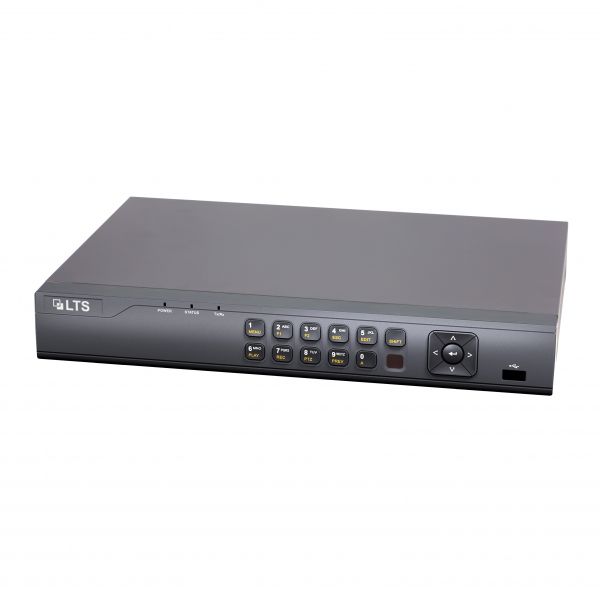

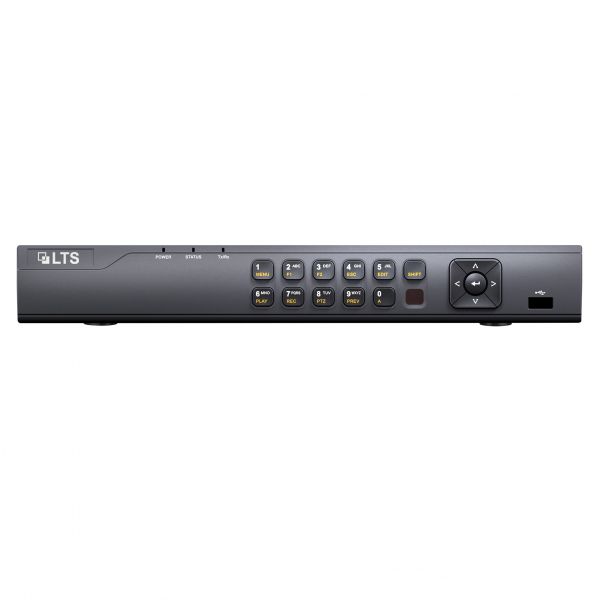

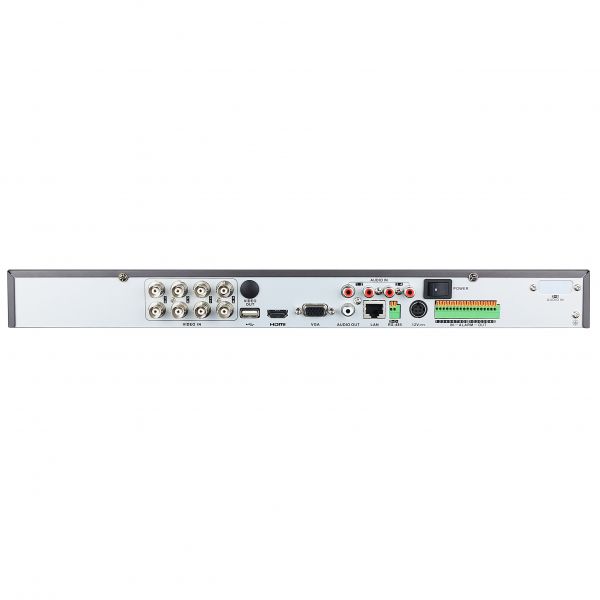

LTS LTD8308T-ST HD-TVI/Analog/IP Camera DVR 1080p 30fps Recording All Channels
LTS LTD8308T-ST HD-TVI/Analog/IP Camera DVR 1080p 30fps Recording All Channels
- H.264 & Dual-stream video compression
- Support HD-TVI/Analog/IP camera triple hybrid
- Full channel 1080P@30fps real-time recording
- HDMI and VGA output at up to 1920×1080P resolution
- Long transmission distance over coax cable
- Support up to 8ch synchronous playback
Model | LTD8308T-ST |
Video / Audio input | |
Video compression | H.264 |
HD-TVI video input | 8-ch |
Video input interface | BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive |
IP input | 2ch(1080p@30fps) |
Audio compression | G.711u |
Audio input | 4-ch, RCA (2.0 Vp-p, 1 kΩ)(using the 1st channel of audio input) |
Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 kΩ) |
Video / Audio output | |
HDMI/VGA output | 1920 ? 1080 / 60 Hz,1280 ? 1024 / 60 Hz, 1280 ? 720 / 60 Hz, 1024 ? 768 / 60 Hz |
Encoding resolution | Main stream: 1080P / 720P / VGA / WD1 / 4CIF / CIF Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA |
Frame rate | Main stream: 1/16 fps ~ Real time frame rate Sub-stream: 1/16 fps ~ Real time frame rate |
Video bit rate | 32 Kbps-8 Mbps |
Audio output | 1-ch, RCA (Linear, 1 kΩ) |
Audio bit rate | 64 Kbps |
Dual-stream | Support |
Stream type | Video, Video & Audio |
Synchronous playback | 8-ch |
Playback resolution | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
Network | |
Remote connection | 128 |
Network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP?, HTTPS |
Hard disk | |
SATA | 2 SATA interface |
Capacity | Up to 4TB capacity for each disk |
External interface | |
Network interface | 1:10M / 100M self-adaptive Ethernet interface |
Serial interface | 1; standard RS-485 serial interface, half-duplex |
USB port | 2 ? USB2.0 |
Alarm in/out | 8/4 |
General | |
Power supply | 12V DC |
Power Consumption | ≤ 20 W |
Working temperature | -10 ?C~+55?C(14?F ~ 131 ?F) |
Working humidity | 10% ~ 90% |
Chassis | 380mm 1U chassis |
Dimension | 380 ? 290 ? 48 mm (15.0" x 11.4" x 1.9") |
Weight | ≤ 2 kg (4.4 lb) |
