Home HD-TVI High Definition Cameras and DVRs HD-TVI Digital Video Recorders 4-32 Channel LTS LTD8308T-FA Platinum Professional Level 8 Channel HD-TVI DVR - Compact Case

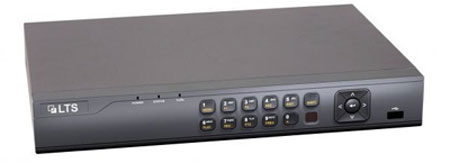

LTS LTD8308T-FA Platinum Professional Level 8 Channel HD-TVI DVR - Compact Case
LTS LTD8308T-FA Platinum Professional Level 8 Channel HD-TVI DVR - Compact Case
- H.264 & Dual-stream video compression
- Support HD-TVI/Analog/IP camera triple hybrid
- Full channel 1080P@ 15fps or 720P@ 30fps recording
- HDMI and VGA output at up to 1920×1080P resolution
- Long transmission distance over coax cable
- Support up to 8ch synchronous playback
Model | LTD8308T-FA |
Recorder Series | Platinum Series |
Recorder Channel | 8-Channel |
Recorder Case | Compact Case |
Recorder Technology | TVI DVR |
Featured Product | No | Video / Audio input |
Video compression | H.264 |
HD-TVI video input | 8-ch |
Video input interface | BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive |
IP input | 2ch(1080p@30fps) |
Audio compression | G.711u |
Audio input | 1-ch, RCA (2.0 Vp-p, 1 kΩ) |
Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 kΩ) | Video / Audio output |
HDMI/VGA output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
Encoding resolution | Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA |
Frame rate | Main stream: 1/16 fps ~ Real time frame rate Sub-stream: 1/16 fps ~ Real time frame rate |
Video bit rate | 32 Kbps-4 Mbps |
Audio output | 1-ch, RCA (Linear, 1 kΩ) |
Audio bit rate | 64 Kbps |
Dual-stream | Support |
Stream type | Video, Video & Audio |
Synchronous playback | 8-ch |
Playback resolution | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF | Network |
Remote connection | 128 |
Network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS | Hard disk |
SATA | 2 SATA interface |
Capacity | Up to 6TB capacity for each disk | External interface |
Network interface | 1:10M / 100M self-adaptive Ethernet interface |
Serial interface | 1; standard RS-485 serial interface, half-duplex |
USB port | 2 × USB2.0 |
Alarm in/out | 8/4 | General |
Power supply | 12V DC |
Power Consumption | ≤ 20 W |
Working temperature | -10 °C~+55°C(14°F ~ 131 °F) |
Working humidity | 10% ~ 90% |
Dimension | 315 × 230 × 45 mm 12.4” x 9.1” x 1.8” |
Weight | ≤ 1.5 kg (3.3 lb) |
Video | No |
