LTS LTD8308K-ET H.265+ Platinum Professional Level 8 Channel HD-TVI DVR

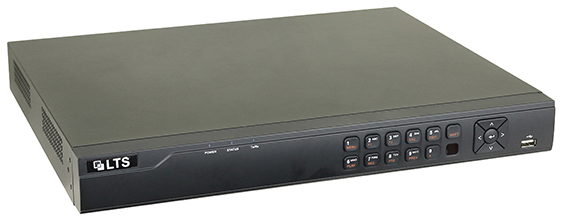

Additional View

LTS LTD8308K-ET H.265+ Platinum Professional Level 8 Channel HD-TVI DVR

Model	LTD8308K-ET
Recorder Series	Platinum Series
Recorder Channel	8-Channel
Recorder Case	1U Case
Recorder Technology	TVI DVR
Featured Product	No
VIDEO/AUDIO INPUT
Video Compression	H.265+ / H.265 / H.264 Zip+ / H.264
Analog Video Input	8ch BNC interface (1.0Vp-p, 75 Ω), supporting coaxitron connection
IP Video Input	2-ch, Up to 4 MP resolution, Supports H.265+/H.265/H.264Zip/H.264 IP cameras
HDTVI Input	3 MP 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Note: The 3 MP signal input is only available for channel 1/2
AHD Input	1080p25, 1080p30, 720p25, 720p30
HDCVI Input	1080p25, 1080p30, 720p25, 720p30
CVBS Input	Support
Audio Compression	G.711u
Audio Input	1-CH, RCA (2.0 Vp-p 1 kΩ)
Two Way Audio Input	1-CH, RCA (2.0 Vp-p 1 kΩ) (using the 1st audio input)
VIDEO/AUDIO OUTUPUT
HDMI/VGA Output	1-ch , 1920�1080/60Hz, 1280�1024/60Hz, 1280�720/60Hz, 1024�768/60Hz
Encoding Resolution	When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF When 1080p Lite mode enabled: 3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
CVBS Output	1-ch, BNC (1.0 Vp-p, 75 kΩ), resolution: PAL: 704�576, NTSC: 704�480
Frame Rate	When 1080p Lite mode not enabled: For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps(p)/30fps(N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps(p)/30fps(N) When 1080p Lite mode enabled: 3 MP @15fps 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps(P)/30fps(N) Sub-stream: WD1/4CIF@12fps;CIF@25fps(P)/30fps(N)
Video Bit Rate	32 Kbps - 6 Mbps
Audio Output	1-ch, RCA (Linear, 1 kΩ)
Audio Bit Rate	64 Kbps
Dual Stream	Support
Stream Type	Video, Video & Audio
Synchronous Playback	8ch
NETWORK
Remote Connections	128
Network Protocols	TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP�, HTTPS, ONVIF
HARD DISK
SATA	2 SATA
Capacity	Up to 8TB capacity for each disk
EXTERNAL INTERFACE
Network Interface	1, RJ45 10M / 100M self-adaptive Ethernet interface
Serial Interface	RS-485 (half-duplex)
USB Port	2�USB2.0
GENERAL
Power Supply	DC12V
Consumption	≤ 7.5W
Working Temperature	-10�C ~ +55�C (14�F - 131�F)
Working Humidity	10% ~ 90%
Chassis	1U
Dimensions (WxDxH)	380�320�48 mm (15.0�12.6�1.9 inch)
Weight	≤ 3.9 lbs (1.78 Kg)
