Home Discontinued Products LTS LTD8304T-FT 4 Channel 1U HD-TVI 1080p/Analog/IP Digital Video Recoder

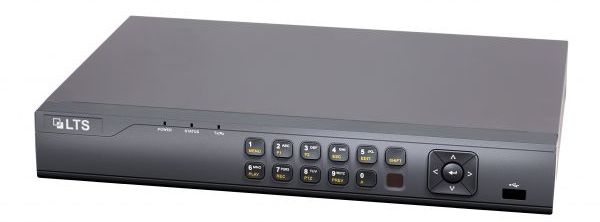

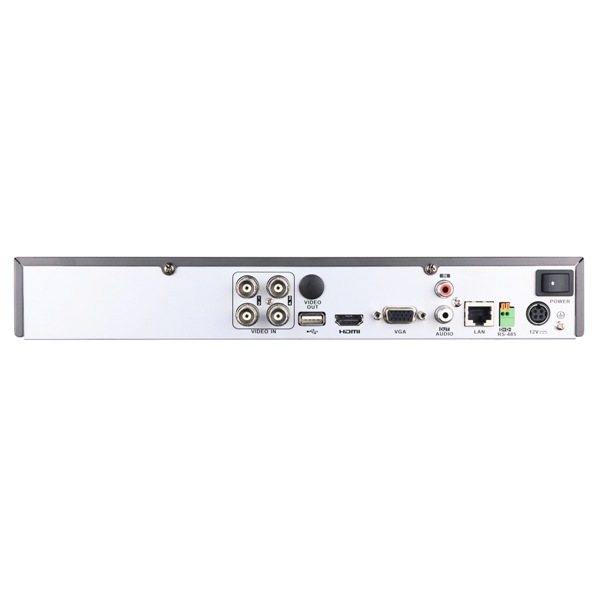

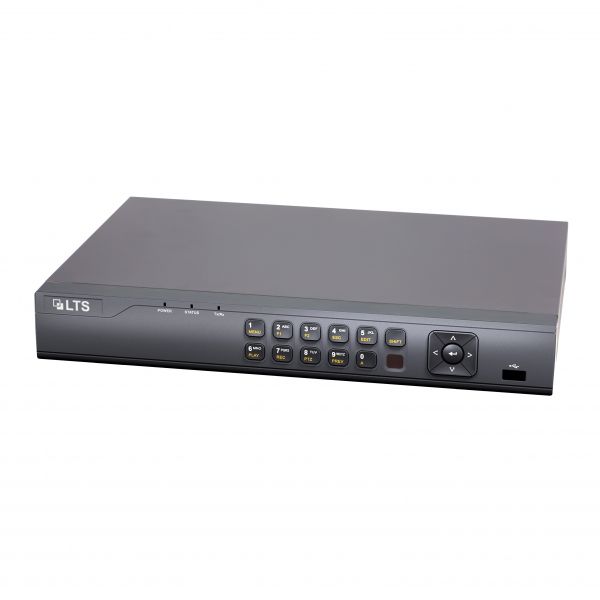

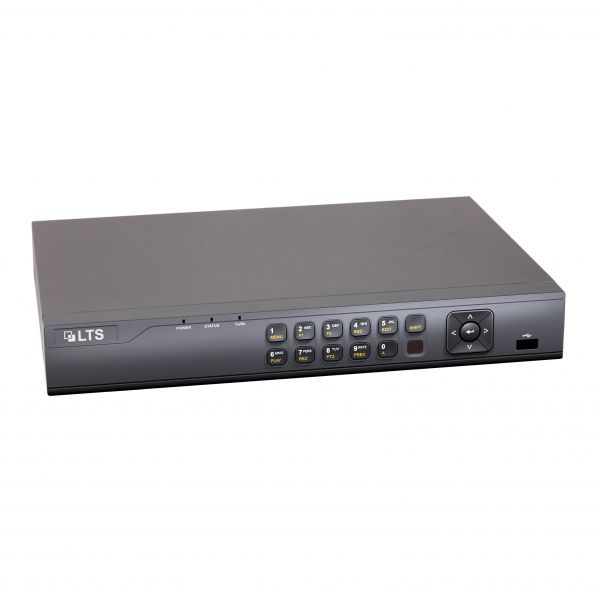

LTD8304T-FT 4 Channel 1U HD-TVI 1080p/Analog/IP Digital Video Recoder
LTD8304T-FT 4 Channel 1U HD-TVI 1080p/Analog/IP Digital Video Recoder
- H.264 & Dual-stream video compression
- Support HD-TVI/Analog/IP camera triple hybrid
- Full channel 1080P@ 12fps or 720P@ 30fps recording
- HDMI and VGA output at up to 1920×1080P resolution
- Long transmission distance over coax cable
- Support up to 4ch synchronous playback
Model | LTD8304T-FT |
Video / Audio input | |
Video compression | H.264 |
HD-TVI video input | 4-ch |
Video input interface | BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive |
IP input | 1ch(1080p@30fps) |
Audio compression | G.711u? |
Audio input | 1-ch, RCA (2.0 Vp-p, 1 kΩ) |
Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 kΩ) |
Video / Audio output | |
HDMI/VGA output | 1920 ? 1080 / 60 Hz,1280 ? 1024 / 60 Hz, 1280 ? 720 / 60 Hz, 1024 ? 768 / 60 Hz |
Encoding resolution | Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA |
Frame rate | Main stream: 1/16 fps ~ Real time frame rate Sub-stream: 1/16 fps ~ Real time frame rate |
Video bit rate | 32 Kbps-6 Mbps |
Audio output | 1-ch, RCA (Linear, 1 kΩ) |
Audio bit rate | 64 Kbps |
Dual-stream | Support |
Stream type | Video, Video & Audio |
Synchronous playback | 4-ch |
Playback resolution | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
Network | |
Remote connection | 128 |
Network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP?, HTTPS |
Hard disk | |
SATA | 1 SATA interface |
Capacity | Up to 4TB capacity for each disk |
External interface | |
Network interface | 1:10M / 100M self-adaptive Ethernet interface |
Serial interface | 1; standard RS-485 serial interface, half-duplex |
USB port | 2 ? USB2.0 |
General | |
Power supply | 12V DC |
Power Consumption | ≤ 15 W |
Working temperature | -10 ?C~+55?C(14?F ~ 131 ?F) |
Working humidity | 10% ~ 90% |
Chassis | 1U chassis |
Dimension? | 315 ? 230 ? 45 mm (12.4" x 9.1" x 1.8") |
Weight | ≤ 1.5 kg (3.3 lb) |
