Home IP Cameras and Network Video Recorders NVRs IP Cameras and NVR's by LTS LTS Platinum Series IP NVR's - Network Video Recorders LTS LTD7204-WH H.264 4Ch Analog + 1Ch IP Dual-Stream DVR NVR

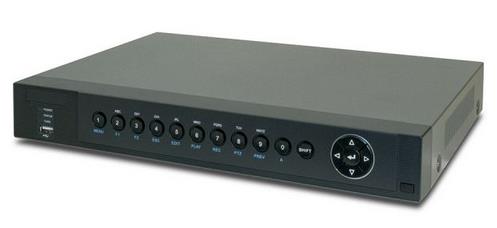

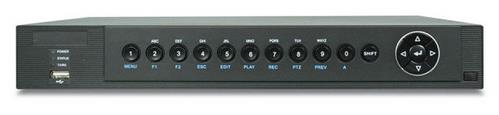

LTS LTD7204-WH H.264 4Ch Analog + 1Ch IP Dual-Stream DVR NVR
H.264 video compression,WD1(960*576) resolution real-time recording,HDMI and VGA output at up to 1920×1080P resolution,Dual-stream,Up to 4/8/16-ch synchronous playback,NTP, SMTP, NFS, UPnP and iSCSI protocol.
Product Features
- H.264 video compression
- WD1(960*576) resolution reasl-time recording
- HDMI and VGA output at up to 1920×1080P resolution
- Dual-stream
- Up to 4/8/16-ch synchronous playback
- NTP, SMTP, NFS, UPnP and iSCSI protocols
Model | LTN7604V-P4 |
Video / Audio input | |
Video compression | H.264 |
Video input | 4-ch |
Video input interface | BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive |
Audio compression | G.711u |
Audio input | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 k Ω) (using the audio input) |
Video / Audio output | |
HDMI/VGA output | 1-ch, resolution: 1080P: 1920?1080/60Hz; SXGA: 1280?1024/60Hz; 720P: 1280?720/60Hz;XGA: 1024?768/60Hz |
CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution:NTSC: 704 ? 480,PAL: 704 ? 576 |
Encoding resolution | WD1 / 4CIF / 2CIF / CIF / QCIF |
Frame rate | 30 fps(N) / 25 fps (P) |
Video bit rate | 32Kbps~2048Kbps,or use defined(Max.3072Kbps) |
Audio output | 1-ch, RCA (Linear, 1 k Ω) |
Audio bit rate | 64 Kbps |
Dual-stream | Support; Sub-stream: CIF / QCIF @ 30 fps(N) / 25 fps (P) |
Stream type | Video, Video & Audio |
Synchronous playback | 4-ch |
Hard disk | |
SATA | 1 SATA interfaces |
Capacity | Up to 4TB capacity |
External interface | |
Network interface | 1, RJ45 10M / 100M Ethernet interface |
Serial interface | 1 RS-485 interface, half-duplex |
USB interface | 2, USB2.0 |
Alarm in/out | 4ch/1ch |
General | |
Power supply | 12 VDC |
Power Consumption | ≤ 10 W |
Working temperature | -10 ?C ~ +55 ?C |
Working humidity | 10% ~ 90% |
Chassis | Standalone 1U chassis |
Dimension | 315 ? 230 ? 45 mm |
Weight | ≤ 2kg |
