Home HD-TVI High Definition Cameras and DVRs HD-TVI Digital Video Recorders 4-32 Channel LTS LTD4108T-FA Platinum X Professional Level 8 Channel HD-TVI DVR - Compact Case

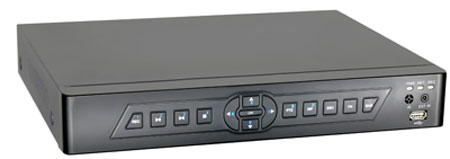

LTS LTD4108T-FA Platinum X Professional Level 8 Channel HD-TVI DVR - Compact Case
LTS LTD4108T-FA Platinum X Professional Level 8 Channel HD-TVI DVR - Compact Case
- HD-TVI H.264 DVR, Dual-Stream Video Compression
- Support HD-TVI, IP, Analog Cameras
- Full Channel 1080P@15fps, 720P@30fps Recording
- HDMI and VGA Output up to 1920x1080P Resolution
- Long Transmission Distance Over Coax Cable
Model | LTD4108T-FA | |
Recorder Series | Others | |
Recorder Channel | 8-Channel | |
Recorder Case | Compact Case | |
Recorder Technology | TVI DVR | |
Featured Product | No | |
Video / Audio input | ||
Video compression | H.264 | |
HD-TVI video input | 8ch | |
Video input interface | BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adapive | |
IP input | 2ch(1080p@30fps) | |
Audio compression | G.711A | |
Audio input | 1-ch, RCA(2.0 Vp-p, 1 kΩ) | |
Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 kΩ) | |
Video / Audio output | ||
HDMI / VGA output | 1920 x 1080,1280 x 1024, 1280 x 720, 1024 x 768/60 Hz | |
CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 | |
Encoding resolution | Main stream: 1080P(non-real-time) / 720P / WD1 / 4CIF Sub-stream: CIF / QCIF | |
Frame rate | Main stream: 1fps ~ Real time frame rate Sub-stream: 1fps ~ Real time frame rate | |
Video bit rate | 1280 Kbps-7168 Mbps | |
Audio output | 1-ch, RCA (Linear, 1 kΩ) | |
Audio bit rate | 64 Kbp | |
Dual-stream | Support | |
Stream type | Video, Video & Audio | |
Synchronous playback | 8-ch | |
Playback resolution | 1080P / 720P / WD1 / 4CIF / CIF / QCIF | |
Network | ||
Remote connections | 10 | |
Network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS | |
Hard disk | ||
SATA | 1 SATA interfaces | |
Capacity | Up to 4TB capacity for each disk | |
External interface | ||
Network interface | 10M / 100M /1000M | |
Serial interface | 1; standard RS-485 serial interface, half-duplex | |
USB port | 2 × USB2.0 | |
Alarm in/out | 8/4 | |
General | ||
Power supply | DC 12V | |
Consumption | ≤ 10 W | |
Working temperature | -0 °C ~ +55 °C(32°F - 131°F) | |
Working humidity | 10% ~ 90% | |
Dimension | 12.6 × 9.6 × 2.0" 320 ×245 × 50mm | |
Weight (without hard disk) | ≤ 3.3 lb (1.5Kg) | |
Video | No |
