Home HD-TVI High Definition Cameras and DVRs LTS LTAB4020T Single Channel Passive Video Balun up to 5MP HD-TVI, CVI, A-HD, CVBS

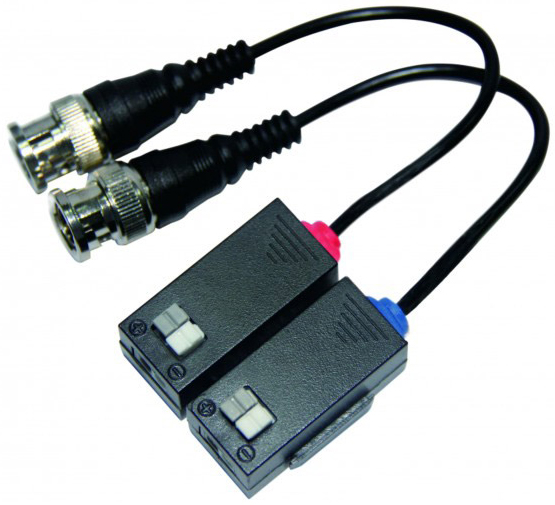

LTS LTAB4020T Single Channel Passive Video Balun up to 5MP HD-TVI, CVI, A-HD, CVBS
LTS LTAB4020T Single Channel Passive Video Balun up to 5MP HD-TVI, CVI, A-HD, CVBS
- Supports up to 5MP HD-TVI, 2 Year Warranty
- Real-time transmission over UTP cat5e/6
- Compatible with all HD-TVI/CVI/AHD/Analog cameras
- Copper pin BNC connector, connectable style
- Built-in solid state TVS (Transient Voltage Suppressor) for surge protection
- Application Diagram
- Push-pin terminal with pigtail
- Save Installation Time and Quickly Connect to Cameras from DVRs Easily
Model | LTAB4020T | ||||||||||||||
Video Parameters | |||||||||||||||
Video Format | HD-TVI/CVI/AHD/CVBS | ||||||||||||||
Operating Frequency | DC to 42MHz | ||||||||||||||
Max Distance |
|
||||||||||||||
Common Mode/ Differential Mode Rejection | 15KHz to 42MHz 60 dB type | ||||||||||||||
Impedance | Coax: Male BNC 75 unbalanced; UTP: push-pin terminal block 100 balanced | ||||||||||||||
Attenuation | 1.5 dB typ Max | ||||||||||||||
Wire Type | |||||||||||||||
Network Wiring | One Unshielded Twisted Pair (for each video signal) 24-16 AWG ( 0.5-1.31mm) | ||||||||||||||
Category Type | 2 or better | ||||||||||||||
Impedance | 100 ± 20 ohms | ||||||||||||||
DC Loop Resistance | 52 ohms per 1,000ft (18 ohms per 100m) | ||||||||||||||
Differential Capacitance | 19 pF/ft max (62 pF/m max) | ||||||||||||||
Connector | |||||||||||||||
Video input/outpu | Male BNC connector | ||||||||||||||
Video input/output | Tool-less push-pin terminal block | ||||||||||||||
Mechanical | |||||||||||||||
Housing | ABS engineering plastic | ||||||||||||||
Body Color | Black | ||||||||||||||
Dimensions | 180 x 16 x 17.6 mm (7.09 x 0.63 x 0.69 ”) (BNC connector & cable excluded) | ||||||||||||||
Net Weight | 40g (0.088lb) | ||||||||||||||
Power | |||||||||||||||
Power | No external power required | ||||||||||||||
ENVIRONMENTAL | |||||||||||||||
Ingress protection level | IP 54 | ||||||||||||||
Power supply | AC 16V to 2 4 V | ||||||||||||||
Power frequency | 50 Hz to 60 Hz |
