Home Accessories, Power Supplies, Tools, Cable, Connectors CCTV Tools and Service Monitors LTS LTA-AU25MM Professional CCTV Hand Set 2.5 inch LCD Speed Dome & Video Signal Test Monitor

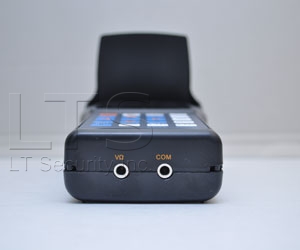

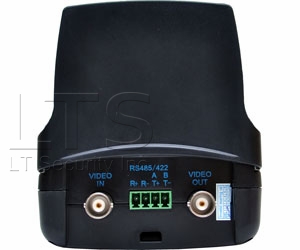

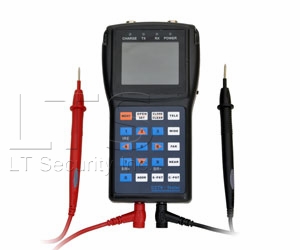

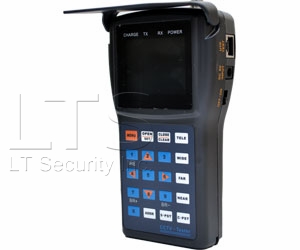

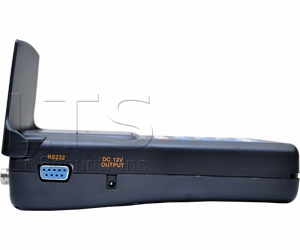

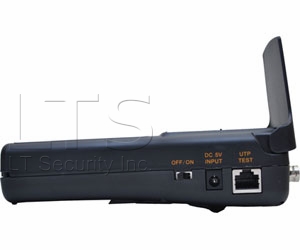

LTS LTA-AU25MM Professional CCTV Hand Set 2.5 inch LCD Speed Dome & Video Signal Test Monitor
LTS LTA-AU25MM Professional CCTV Hand Set 2.5 inch LCD Speed Dome & Video Signal Test Monitor
- Professional CCTV Test Hand Set 2.5" LCD Speed Dome Test Monitor
- Video Signal and Picture Quality Tester
- Basic Operation Test for PTZ Products
- Function Include Pan/ Tilt, Zoom In/ Out, Preset Setting and Operation, Speed Adjustment
- Support Multi-Protocol and Baud Rate, Communication via RS-232, RS422 Simplex, RS485 Port and RJ45 Pin Test
- UTP Wiring Condition Test Green, White, Black and Blue Color Bar Generation to Allow Video Inspection
- Video Generating Signal Support PAL or NTSC
- Hexadecimal Data Content Displayed for Analyze
Model | LTA-AU25MM |
Signal Mode | NTSC/ PAL Automatically Suitable |
Display | 2.5 inch LCD Screen, 960 x 240 Resolution |
Video Input | BNC x 1 |
Video Output | BNC x 1 |
Communication | RS-232, RS422 Simplex, RS485 Port and RJ45 Pin Test |
Protocol | Pelco D, Pelco P, Samsung, Panasonic and Molynx |
Baud Rate | 2400, 4800, 9600 and 19200 |
Signal Generating | Output 1 Channel Video Signal for Testing Monitor |
UTP Cable Test | Connection Stated and Displayed in the Screen |
RS485 Data Test | Date Sent from Controlling Device |
Operation | English OSD Menu |
Power Adapter | DC 9V |
Battery | 2 pcs 18490 Standard Batteries 3.7V, Capacity 1400mAh |
Rechargeable | 5 Hours Recharging Time, Work for 5 Hours |
Low Consumption | Sleeping Mode, Display Battery Power Meter |
Operating Temperture | -22? F ~ 158? F |
Humidity | 30%~ 90% RH, Condensation |
Power Adapter | Included |
Device Dimensions | 6.50" x 3.90" x 1.75" |
Device Weight | 0.48 lbs |
Package Dimensions | 9.25" x 8.25" x 2.90" |
Package Weight | 1.56 lbs |
