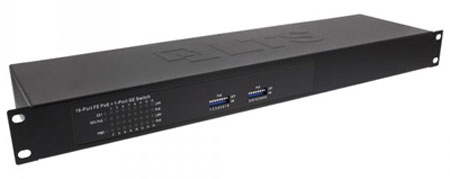

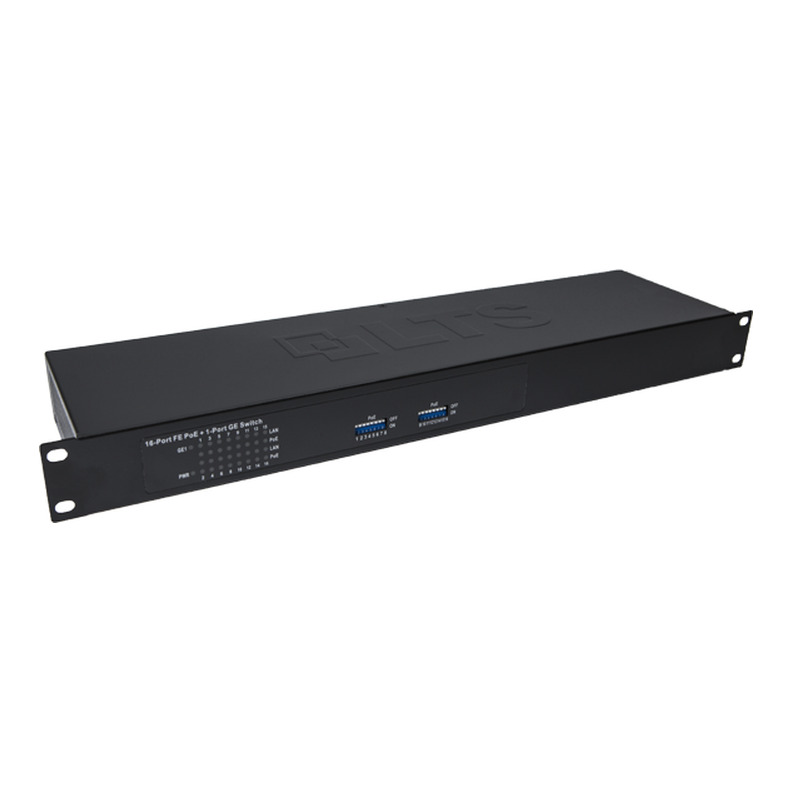

Home IP Cameras and Network Video Recorders NVRs IP Accessories, PoE Switches, Power Injectors LTS LT-SW1601I 16 POE Ports
LTS LT-SW1601I 16 POE Ports
LTS LT-SW1601I 16 POE Ports
- 16 POE Ports
- 100mbps Data Transfer Rate
- 250W Max Power
- IEEE 802.3af
- 16 DIP Switches
- Power Protection
- 19" Rack Mountable
Model | LT-SW1601I |
Standards | IEEE 802.3/u 10/100/1000Base/TX IEEE 802.3x Flow Control IEEE 802.3af PoE compliant Midspan PoE compliant |
Number of Ports | 16 PoE ports + 1 gigabit uplink port |
MAC Address | 8k |
Buffer Memory | 512kb |
Transmission Method | Store and Forward |
Filtering/Forwarding Rates | 1000Mbps port - 1,488,000pps 100Mbps port - 148,800pps 10Mbps port - 14,880pps |
Transmission Media | 10BaseT CAT 3, 4, 5 UTP 100/1000BaseTX CAT 5 UTP/STP |
Max Power | 250W (30W per port) |
Output PoE Pin | 4, 5, 7, 8 |
LED Indicators | Ports 1-16: 10/100Mbps, PoE on/off, Power, Port 17: 10/100/1000Mbps |
Power Adapter | Input: 100-240VAC, 50-60Hz Output: 56VDC 3.6A (250W) |
Dimensions H x W x D | 18.9” x 4.6” x 1.6” (480 x 118 x 40mm) |
Weight | 4 lbs (1.8kg) |
Operating Temperature | 32ºF ~ 122ºF (0ºC - 50ºC) |
Humidity | 10 ~ 90% RH (Non-Condensing) |
Certifications | FCC Class A, CE |
