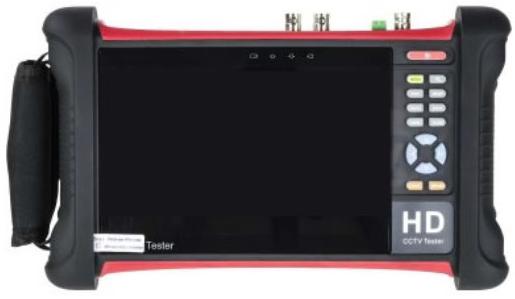

Telpix LD-M8000 7 Inch Tester Monitor for 5MPTVI / 4MPCVI / 4MP / AHD IP ANALOG / HD SDI / EX SDI Tes

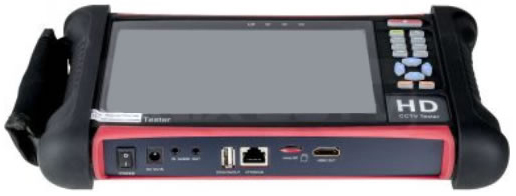

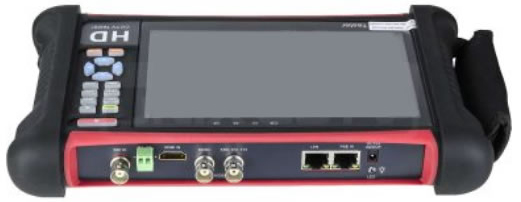

Additional View

Telpix LD-M8000 7 Inch Tester Monitor for 5MPTVI / 4MPCVI / 4MP / AHD IP ANALOG / HD SDI / EX SDI Tes

New?7 inch retina touch screen ,1920*1200 resolution

New- 264 &H .265 ,4K video display via mainstream

New-5MP TVI test,5FPS,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu

4MP AHD test, 2560 × 1440P15F/25F/30FHD,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu

4MP CVI test,2560 × 1440P25F/30F, 4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu

HD SDI/EX-SDI camera test ,support 1080P 50/60 FPS

IP & CVBS camera test ,PTZ controller

New- Rapid video, just by one key to detect all network cameras and auto display

TesterPlay (screen projection): tester, mobile phone and PC display at the same time (For android version mobile phone)

Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report

New- IP and analog testing at the same time ,converter test from analog to digital with dual test window IP & CVBS

New- In HDMI in mode, It can converter test from analog to digital with dual test window IP & HDMI in or Analog & HDMI in

New- RJ45 cable TDR test, testcable pair status, length, attenuation, reflectivity, impedance, skew etc

Cable tracer, search BNC cable, network cable and telephone cable from the mess cables

Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need to customize

New- Shortcut button, drop-down menu, can select PoE power ,IP setting, WLAN switch, HDMI IN functions etc in any interface

New- Screen lock, password lock and pattern lock are optional

New- HDMI signal in and out , support 1080P

NEW- Backlit buttons.

New- HDMI signal input,720 × 480p /720 × 576p /1280 × 720p /1920 × 1080p /1024 × 768p/1280 × 1024p /1280 × 900p /1440 × 900p display image ,record and snapshot

New- CVBS loop test, the tester send and receive color bar generator signal ,to check BNC cable

New- Traffic monitoring of the tester “LAN port”, display network port or WIFI connection real-time upload and download speeds and other network parameters

New- Customers self update software ,you can install apps with android version ,such as Skype, wechat etc

ONVIF camera test, support 2592*1520, Network PTZ controller (ONVIF)

Built in Wi-Fi ,display image from the wireless camera , create WIFI hotspot

New- 4K video files and MKV/MP4 media files play

PoE DC48V power output, Max power 24W,12V /2A power output/5V 2A power output, as a power bank

New- Quick office, quick office app ( support excel ,word ,ppt format ) doc. editable 8GB SD card including

IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester’s IP address

PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG

Video level meter, Video PEAK lever, SYNC level, COLOR BURST measurement

Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

POE voltage measurement, PING test ,IP address scan, port flashing etc

Audio in /out , support record and save the audio/LED lamp, calculators, music players and other application tools

4 V /5000mAh Lithium Ion Polymer Battery, after 6 ~ 7 hours charging , working time lasts 10 hours

LCD	Model	LD-M8000
	Size & Display resolution	New 7 inch touch screen with retina display ,1920*1200 resolution
Video Mode	CVBS	1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)
		Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement
		PTZ control,RS485 control, Baud 600 ~ 115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, etc
		CVBS loop test	the tester send and receive color bar generator signal, check BNC cable
	IP camera test	IP Discovery/Quick ONVIF/ IPC test /RTSP play/Client APK
		Rapid ONVIF	Rapid onvif ,can create testing report
		Hik test tool	pressing just one key to activate hikvision camera ,Image test, can modify the user name, password and IP parameters
		Dahua test tool	Dahua camera test, modify the user name, password and IP parameters
	IP& CVBS test	IP& CVBS test at the same time ,converter test from analog to digital with dual test window
	Coaxial HD test	5MP TVI camera test?2688 × 1520p 15fps?2560 × 1944P12.5FPS, 2048 × 1536p 18fps?1080p 25/30fps?720p 25/30/50/60fps?UTC control/ call OSD menu
		4MP CVI camera test: 2560 × 1440P25F/30F,1080p 25/30fps?720p 25/30/50/60fps?UTC control d call OSD menu
		4MP AHD test,2560 × 1440P15F/25F/30F,2048 × 1536p 18/25/30fps?1080p 25/30fps?720p 25/30fps ?UTC control d call OSD menu
		HD SDI/EX-SDI camera test ,support1080p 25/30/50/60fps?1080i 50/60fps?720p 25/30/50/60fps
	HDMI input	1 channel HDMI input,support720 × 480p /720 × 576p /1280 × 720p /1920 × 1080p /1024 × 768p/1280 × 1024p /1280 × 900p /1440 × 900p/
	Zoom Image	4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back
Analog Video out	color bar generator	Output one channel PAL/NTSC color bar video signal for testing monitor or video cable
HDMI output	1 channel HDMI output, support 1920*1080P
	12V/2Apower output	Output DC12V/2A power out ,supply temporarily power for the camera
Power output	PoE power output	48V PoE power output, max power 24W
	5V/2A power output	USB 5V 2A power output, as a power bank
Cable test	TDR cable test	BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM
	Cable tracer	search BNC cable, network cable and telephone cable from the mess cables
	UTP cable test	Test UTP cable connection status and display on the screen. Read the number on the screen
	RJ45 cable TDR test	testcable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement range 180M
TesterPlay	screen projection: tester, android version mobile phone and PC display at the same time
Network test	Trace route, Link monitor ,DHCP server, port flashing , Ping test
Wi-Fi	Built in WIFI,speeds150M,display wireless camera image
Audio test	1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
Data monitor	Captures and analyzes the command data from controlling device?also can send hexadecimal
PoE test	Measurement POE switch or PSE power supply voltage and cable connection status
Drop-down menu	You can select PoE power switch ,IP setting, WLAN switch , HDMI IN functions etc in any interface
External power supply	DC 12V 2A
Battery	Built-in 7.4V Lithium polymer battery ,5000mAh
Rechargeable	After charging 6 ~ 7 hours, normal working time 10 hours
Operation setting	OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish,Spanish etc
Auto off	1 ~ 30 (mins)
Working Temperature	14°F ~ 122°F(−10°C ~ 50°C)
Working Humidity	30% ~ 90%
Dimension/Weight	255mm × 160mm × 46mm / 0.95Kg
A	AHD camera test,4MP AHD camera test,2560 × 1944P12.5FPS, 2048 × 1536p 18/25/30fps?1080p 25/30fps?720p 25/30fps ,UTC control/ call OSD menu
H	TVI camera test: 5MP TVI camera test,2688 × 1520p 15fps?2560 × 1944P12.5FPS, 2048 × 1536p 18fps?1080p 25/30fps?720p 25/30/50/60fps? UTC control/ call OSD menu
D	CVI camera test : 4MP CVI camera test,2560 × 1440P25F/30F,1080p 25/30fps?720p 25/30/50/60fps?UTC control d call OSD menu
S	HD SDI/EX-SDI camera test ,support 1080p 25/30/50/60fps?1080i 50/60fps?720p 25/30/50/60fps
L	Video level meter :PEAK ,SYNC signal level, color burst chroma level measurement
C	Cable tracer:search BNC cable, network cable and telephone cable from the mess cable
