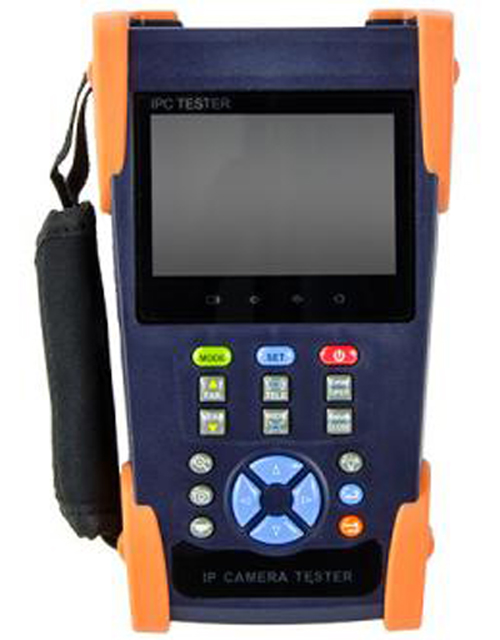

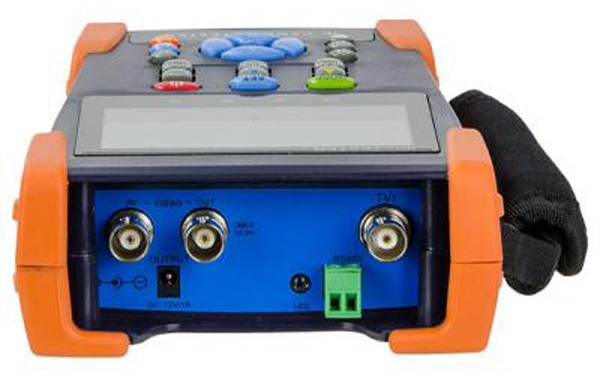

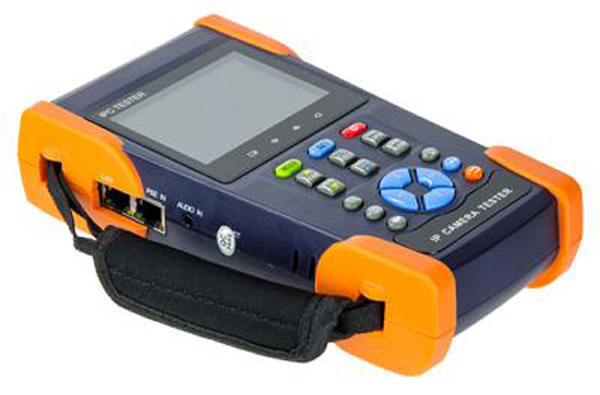

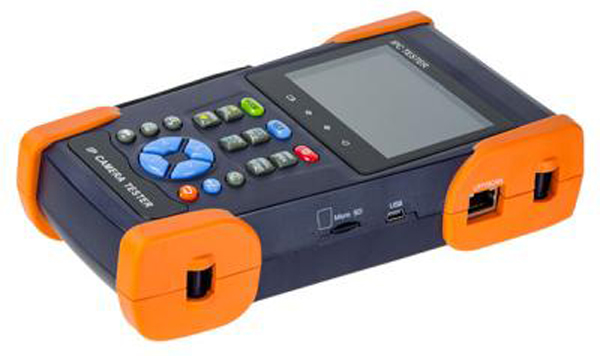

Eyemax LD-M4400T HD CCTV Test Monitor / IP + HD-TVI

Additional View

Eyemax LD-M4400T HD CCTV Test Monitor / IP + HD-TVI

Model	LD-M4400T
Display	3.5 inch Capacitive touch screen, resolution 480 (RGB) x 320
Network Port	10/100M auto adapt, RJ45
WIFI	Built in WIFI, speeds 150M, allows you to connect to a wireless network and view IP camera
IP Camera Type	ONVIF, ONVIF PTZ, Dahua IPC-HFW2100P, Hikvision DS- 2CD864-E13, Samsung SNZ-5200, Tiandy TD-NC9200S2, Kodak IPC120L, Honeywell HICC-2300T, RTSP Viewer. Customized welcom
Video Input/Output	1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)
Video Level Test	Video signals measured in IRE or mV
Zoom Image	Supports Analog and IP camera image zooming & movement
Snapshot, Video Record & Playback	Capture still images and record live video. Media player will view photos and playback video
12V/1A Power Output	Output DC 12V / 1A power for camera
Audio Test	1 channel audio signal input, test whether sound normal, sup- ports record and save audio
PTZ Control	Support RS232/RS485 control, Baud 600-115200bps, Compat- ible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc
Video Signal Generator	Output one channel PAL/NTSC color bar video signal for testing monitor or video cable (red, green, blue, white, black)
Color Bar Generator	Local side PC can login the tester, send the signal by network, test network connection communication whether normal
UTP Cable Tester	Test UTP cable connection status and display on the screen. Read the number on the screen
Data Monitor	Captures and analyzes the command data from controlling device, also can send hexadecimal
Network Test	IP address scan, link scan, and Ping test. Quickly search for the IP camera�s IP address on your network
PoE Test	Measures PoE switch voltage and displays pin coniguration
External Power Supply	DC 5V (1.5A)
Battery	Built-in 3.7V Lithium polymer battery, 3000m/Ah
Rechargeable	After charging 3-4 hours, normal working time 8 hours
Operation setting	Capacitive touch screen, OSD menu, select your desired lan- guage: English, Chinese, Korean, Russian, Italian or Polish, etc
Auto off	1-30 (mins)
Working Temperature	-10�C ~ +50�C
Working Humidity	30% - 90%
Dimension	194mm x 112mm x 48mm

free shipping

orders $500 and up

Search Product

Products

customer services

By Manufacturer

By Price

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

Additional View

Eyemax LD-M4400T HD CCTV Test Monitor / IP + HD-TVI

SKU#

:

LD-M4400T

Regular Price

:

$499.95

Sale Price

:

$349.95

You Save

$150.00(30.00% )

Availability

:

Usually ships the next business day
