Home Accessories, Power Supplies, Tools, Cable, Connectors CCTV Tools and Service Monitors Unix LD-CT-695 3.5inch Multi-function CCTV Test Monitor

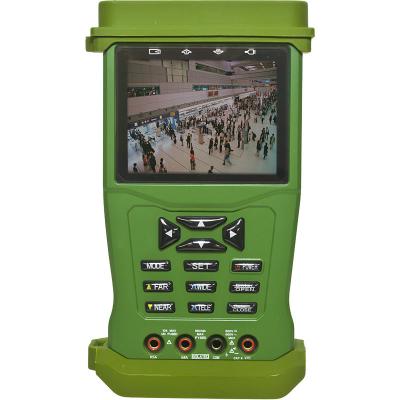

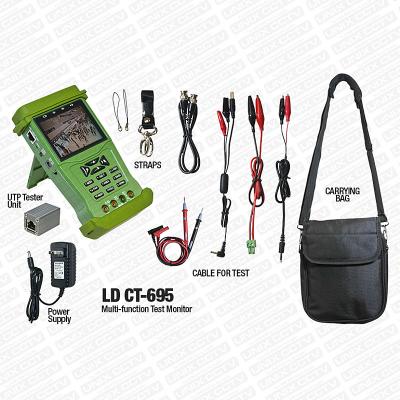

Unix LD-CT-695 3.5inch Multi-function CCTV Test Monitor
- 3.5inch color LCD with 960 x 240 resolution
- CCTV camera tester
- PTZ control tester
- UTP cable tester
- DC 12V 1A power out
- Audio tester
- RS-485 data tester
- Digital multimeter
- Carrying bag included
- DC 9V / 2A power adapter included
- 1600mA eechargeable battery included
- Digital multi-meter specs
- AC/DC Voltage : 0~300V
- AC/DC Current : 400.0�A � 4000�A � 40.00mA � 400.0mA � 10A
- Resistance : 400.0? � 4.000K � 40.00K � 400.0K � 4.000M � 40.00M
- Capacitance : 4.00nF~400�F
- Continuity : < 50? sound reminder
LD CT-695 | ||
Video signal test | ||
Signal mode | NTSC/PAL automaticcally select | |
Display | 3.5" inch LTPS LCD screen, 960 ? 240 resolution | |

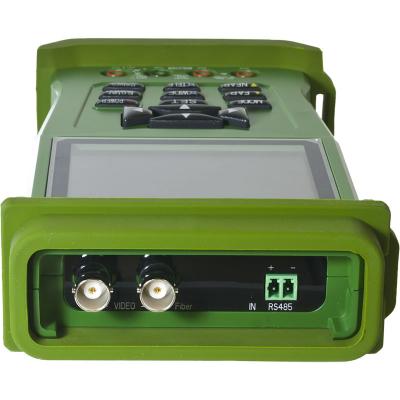

Video Input | 1 channel BNC | |
Video output | 1 channel BNC | |
PTZ test | ||
Communication | RS485 | |
PTZ protocol | PELCO P/D and kinds of protocols, special protocol could be customized | |
Other functions | ||
Power output | Supply 12V power to camera | |
Audio Test | 1 channel audio signal output | |
Audio Test | 1 channel audio signal output | |
UTP Cable Test | Test UTP Cable connection state and display on the screen. | |
RS-485 Data Test | Test the RS485 data sent from control device. | |
Power | ||
Power Adapter | DC 9V / 2A | |
Battery | 1600mAH | |
Digital Multi-meter | ||
AC / DC Voltage | 0~300V | |
AC / DC Current | 400.0?A ? 4000?A ? 40.00mA ? 400.0mA ? 10A | |
Resistance | 400.0? ? 4.000K ? 40.00K ? 400.0K ? 4.000M ? 40.00M | |
Capacitance | 4.00nF~400?F | |
Continuity | < 50? sound reminder | |
Test Speed | 3 seconds at a time | |
Other Parameters | ||
Work Temperature | -30?C ~ +70?C | |
Work Humidity | 30% ~ 90% | |
Dimension | 105 ? 44 ? 188mm / 4.1 ? 1.7 ? 7.4in |
