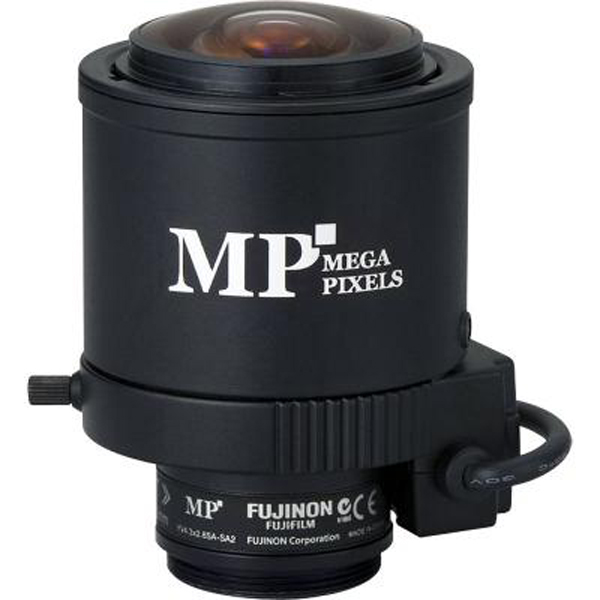

Fujinon LA-MPFU2812AS Mega Pixel 2.8~12mm Vari-Focal Lens
High image-quality monitoring with optical performance supporting 3 megapixels. WIDE 2.2mm, achieving a horizontal field angle of 120 degrees (when used on 1/3 cameras). Compact and lightweight design, best suited for use with dome cameras. Designed to maximize optical performance with high-accuracy aspheric lens, low-dispersion glass, and high refractive-index glass. Built-in ND filter of T360, supporting high sensitivity cameras.
- High image-quality monitoring with optical performance supporting 3 megapixels.
- Wide f2.8-12mm range accommodates various applications.
- Designed to maximize optical performance with high-accuracy aspheric lens, low-dispersion glass, and high refractive-index glass.
- Built-in ND filter of T360, supporting high sensitivity cameras.
Model | LA-MPFU2812AS |
Focal Length (mm) | 2.8~12(4.3×) |
Iris Range | F1.4 ~ T360(Equivalent to F360) |
Zoom Operation | Manual |
Focus Operation | Manual |
Iris Operation | Auto(DC Type)(*1) |
1/3" WIDE Angle Of View (H × V) | 100° 2' × 74°03' |
1/3" TELE Angle Of View (H × V) | 23° 6' × 17°36' |
1/4" WIDE Angle Of View (H × V) | 74° 3' × 55°06' |
1/4" TELE Angle Of View (H × V) | 17°6' × 13°13' |
Focusing Range (From Front Of The Lens)(m) | ∞ ~ 0.3 |
1/3" WIDE Object Dimensions at M.O.D. (H × V)(mm) | 753 × 476 |
1/3" TELE Object Dimensions at M.O.D. (H × V)(mm) | 131 × 98 |
1/4" WIDE Object Dimensions at M.O.D. (H × V)(mm) | 476 × 329 |
1/4" TELE Object Dimensions at M.O.D. (H × V)(mm) | 98 × 73 |
Back Focal Distance (in air)(mm) | 7.83 |
Exit Pupil Position (From Image Plane)(mm) | 455 |
Filter Thread (mm) | _ |
Mount | CS |
Mass (g) | 80 |
Coil Resistance | Drive Coil 190Ω Damping Coil 500Ω |
Currnet Consumption | 23mA(Max.) at DV 4V |
Remarks | ·With Metal Mount (*1)When power is turned off, iris will automatically close. YV4.3 × 2.8SA-SA2L : Long Cable Type (230mm) |
