Home Accessories, Power Supplies, Tools, Cable, Connectors Lenses for Professional Box Cameras Magapixel Camera Lenses Fujinon LA-MPFU2808AS Mega Pixel 2.8~8mm Vari-Focal Lens

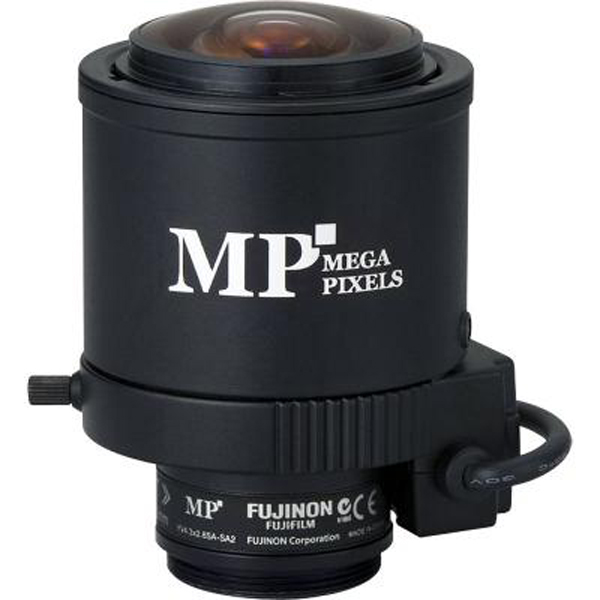

Fujinon LA-MPFU2808AS Mega Pixel 2.8~8mm Vari-Focal Lens
High image-quality monitoring with optical performance supporting 3 megapixels. WIDE 2.8mm, achieving a horizontal field angle of 100 degrees (when used on 1/3 cameras). Compact and lightweight design, best suited for use with dome cameras. Designed to maximize optical performance with high-accuracy aspheric lens, low-dispersion glass, and high refractive-index glass. Built-in ND filter of T360, supporting high sensitivity cameras.
- High image-quality monitoring with optical performance supporting 3 megapixels.
- WIDE 2.8mm, achieving a horizontal field angle of 100 degrees when used on 1/3 cameras).
- Compact and lightweight design, best suited for use with dome cameras.
- Designed to maximize optical performance with high-accuracy aspheric lens, low-dispersion glass, and high refractive-index glass.
- Built-in ND filter of T360, supporting high sensitivity cameras.
Model | LA-MPFU2808AS |
Focal Length (mm) | 2.8~8(2.8×) |
Iris Range | F1.2 ~ T360(Equivalent to F360) |
Zoom Operation | Manual |
Focus Operation | Manual |
Iris Operation | Auto(DC Type)(*1) |
1/3" WIDE Angle Of View (H × V) | 100°00' × 73°45' |
1/3" TELE Angle Of View (H × V) | 35°03' × 26°18" |
1/4" WIDE Angle Of View (H × V) | 73°45' × 54°49' |
1/4" TELE Angle Of View (H × V) | 26°18' × 19°44' |
Focusing Range (From Front Of The Lens)(m) | ∞ ~ 0.3 |
1/3" WIDE Object Dimensions at M.O.D. (H × V)(mm) | 744 × 468 |
1/3" TELE Object Dimensions at M.O.D. (H × V)(mm) | 197 × 146 |
1/4" WIDE Object Dimensions at M.O.D. (H × V)(mm) | 468 × 323 |
1/4" TELE Object Dimensions at M.O.D. (H × V)(mm) | 146 × 108 |
Back Focal Distance (in air)(mm) | 7.7 |
Exit Pupil Position (From Image Plane)(mm) | 314 |
Filter Thread (mm) | _ |
Mount | CS |
Mass (g) | 55 |
Coil Resistance | Drive Coil 190Ω Damping Coil 500Ω |
Currnet Consumption | 23mA(Max.) at DV 4V |
Remarks | ·With Metal Mount (*1)When power is turned off, iris will automatically close. YV2.8 × 2.8SA-SA2L : Long Cable Type (230mm) |
