Surveillance Mega-Store Ultimate Destination for All CCTV Needs

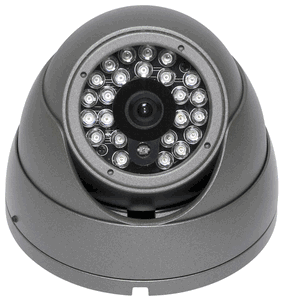

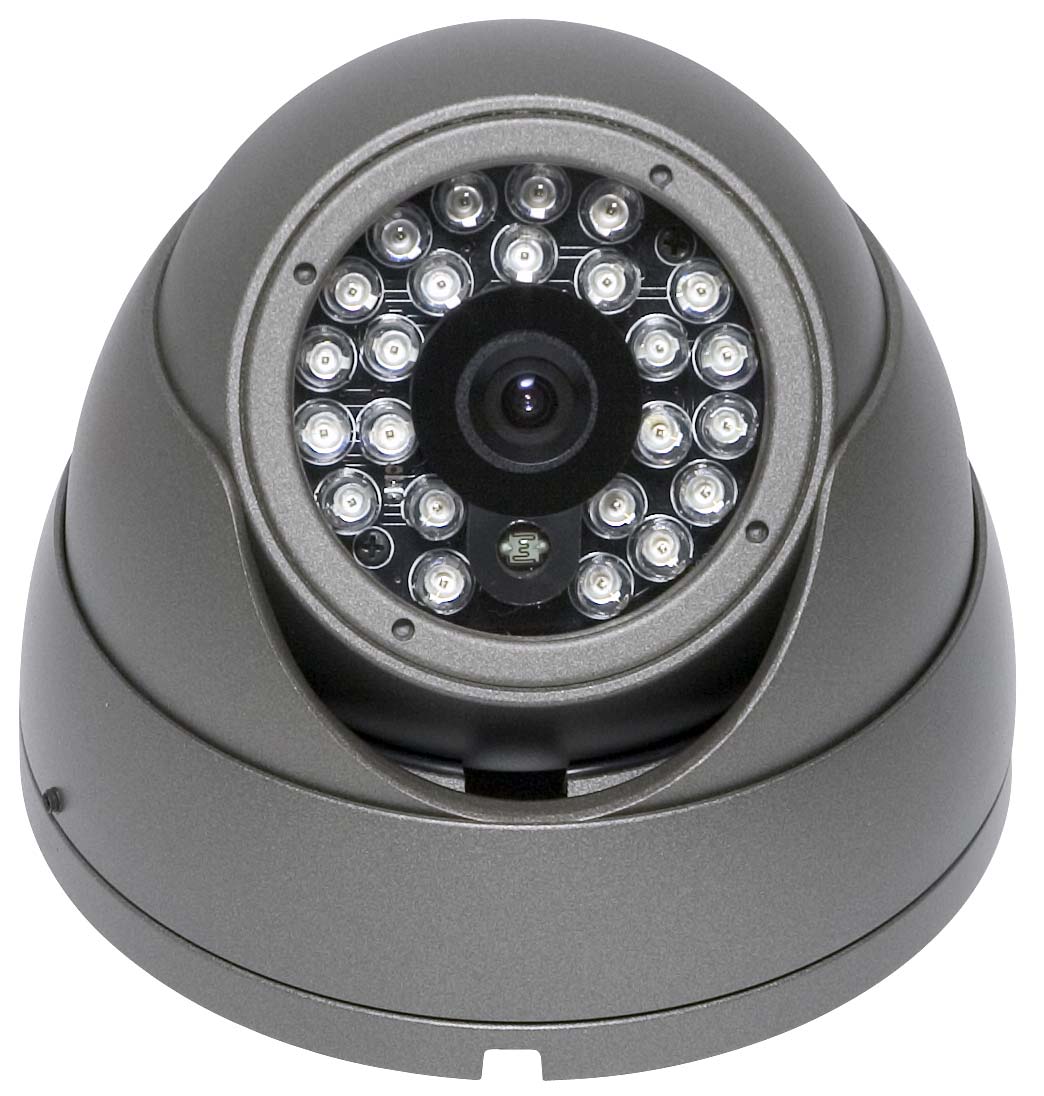

Vandal Resistant!!! Metal Case!
24 IR LED, see up to 60ft in total darkness. Metal case. 1/3” Sony Color CCD. Ultra High Resolution 560/580 TV Lines. 6mm lens.
This small camera can be installed on low ceiling and is able to see straight foward view that other ordinary dome camera can’t. It works really well in high risk/security areas with its sturdy aluminum housings. The Sony high resolution Super HAD CCD imager delivers 560 TV lines of resolution. The standard 6mm fixed lens allow you to setup the camera shot quick and easy. The 24 photocell controlled infrared LED’s will provide invisible lighting up to 60FT away in total darkness. This camera is great for parking lot observation, warehouse, bus barns and gate surveillance. Runs on 12VDC. Be careful if you see same looking camera out there, there are lots of imitation model which has poor quality than the genuine model from the original manufacturer.
- 1/3” Sony Super HAD CCD
- 6mm Fixed Lens
- 560 TV Line in Color
- 60ft Infrared Range / 24 IR LED
- Auto White Balance (AWB) / Back Light Compensation (BLC) / Auto Gain Control (AGC)
- DC 12V / 1500mA Recommended
- Weather & Vandal-Resistant Case
IB5624 | ||
Resolution | 560(Color) / 580(B/W) TV Lines Horizontally | |
Image Pick-up Device | Sony 1/3 inch Super HAD CCD with Sony process chip | |
Picture Elements | 811(H) x 508(V) 410K pixels | |
Effective Picture Elements | 768(H) x 494(V) 380K pixels | |
Scanning Area | 3.65(H) x 2.74(V) mm | |
Scanning System | 2:1 Interface/ 525 Lines / 60 Fields / 30 Frames | |
Iris Mode | DC Iris (only with Auto-Iris Lens) ESC (only with Fixed and Manual-Iris Lens) |
|
Lens | 6mm Fixed Lens | |
Minimum Illumination | 0.3 Lux at F1.2 / 0 Lux (IR On) | |
Sync. System | Internal Only | |
Video Output | 1.0 Vp-p Comp. 75Ω | |
Electronic Iris | 1/60 sec ~1/100,000 sec | |
Backlight Compensation | Built-in | |
Gain Control | Built-in | |
White Balance | AWB | |
Day & Night | Auto / On | |
IR LED | 24 IR LED up to 60ft | |
Gamma | r=0.45 | |
S/N Ratio | 50dB (AGC Off, Eight On) | |
Operating Temp. | 14°F ~ 122°F | |
Power Source | DC 12V | |
Power Consumption (Recommendation) |
120mA (IR LED off) / 1500mA (IR LED On. Max) | |
Dimensions | 4.0”(Ø) x 3.5”(H) / 1.2 lbs / Metal Case |
