Home New Arrivals ED9732H5NV|H.265 Titanium GUI 32CH NVR 2U Case

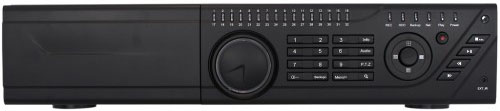

ED9732H5NV|H.265 Titanium GUI 32CH NVR 2U Case
ED9732H5NV|H.265 Titanium GUI 32CH NVR 2U Case
- H.265 Compression
- Titanium Interface
- 32CH IPC
- 32CH Audio In from IPC / 1CH Audio Out
- 8CH Alarm In / 4CH Alarm Out
- 1CH Mic-In
- DVR±RW
- 32CH 30fps/CH @ 5MP
- 2U Case
- HDMI x 2 /VGA (4K)
- RS-485 Control
- ONVIF
- Max HDD: 8x HDD 6TB Each
Model | ED9732H5NV | |
System | ||
Compression | H.265 | |
Camera | ||
Video Output | HDMI x 2 : 4K x 2K / 1080P (1920*1080), VGA | |
Video | ||
Video Resolution | Up to 5MP (2592 x 1944) | |
Bit Rate | 1Mbps ~ 8Mbps | |
Video & Audio | ||
IPC Input | 5MP / 4MP / 3MP / 2MP / 1.3MP / 1.0MP @ 30fps/CH | |
Audio In | 32CH (from IPC input) | |
Audio Out | RCA x 1 | |
2-Way Audio | RCA x 1 | |
Playback | ||
Playback | 16CH | |
Search Mode | Time/ Calendar Search Event (Motion, External Alarm) | |
Recording | ||
Recording Resolution | 5MP: 2592 × 1944, 3MP: 2048 × 1536 / 1080P : 1920 × 1080, 960P : 1280 × 960 / 720P : 1280 × 720 | |
Frame Rate (fps) | 800fps (PAL) / 960fps (NTSC) | |
Encode | CBR | |
Record Mode | Manual, Timer, Motion, Sensor | |
Quality | 6 Levels | |
File Manage | Lock, unlock, reserving time | |
Alarm | ||
Alarm In | 8CH local input, 32CH IPC alarm input | |
Alarm Out | 4CH | |
Trigger Events | Record, PTZ move, alarm out, e-mail, etc | |
Mode | Sensor, Motion, Video Loss | |
Network | ||
Common Interface | RJ45 10M / 100M / 1000M × 1 | |
PoE Ports | N/A | |
Smart Phone | iPhone & Andriod | |
User Access | 10 Users Online, Dual Stream | |
PTZ | ||
Protocol | TCP/IP, UDP, DHCP, DNS, PPPoE, DDNS, Email | |
Storage | ||
Internal HDD | SATA × 8 | |
External HDD | E-SATA × 2 | |
Auxiliary Interface | ||
RS485 | RS485 x 2, connect to PTZ and control keyboard | |
USB | USB 3.0 × 1, USB 2.0 × 2, connect to mouse and USB backup device | |
General | ||
Power Supply | ATX 250W | |
Working Environment | 23℉ ~ 122℉ (-10~55°C) , 10%~90% (Humidity) | |
Dimensions | 16.9" x 11.8" x 3.5"/ 430 x 450 x 89mm (W * D * H) |
