Home Digital Video Recorders - 4-in-1 and 5-in-1 HD-TVI, HD-CVI, A-HD, CVBS, IP 4 Channel Video CCTV DVR Units 4-in-1 and 5-in-1 ED7004TAL | 4CH HD TVI / AHD DVR

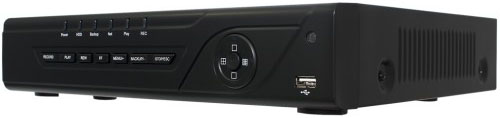

ED7004TAL | 4CH HD TVI / AHD DVR
ED7004TAL | 4CH HD TVI / AHD DVR
- 4 CH HD TVI / AHD / Analog video input, 1CH HD IP video input
- Recording: 12fps/CH@2M (for HD TVI / AHD), 15fps/CH @ 2MP (for IPC)
- Playback: 4CH simultaneously playback; HDMI 1080P output
- Backup: USB, IE, CMS; support multi-file, file cutting when backup
- Pentaplex: live, record, playback, backup and remote operation
- DHCP, DDNS, PPPoE Network protocol, IE browse and CMS supported
- Dual stream technology; Multi-user online simultaneously
- Support PTZ preset and auto cruise, up to 128 presets and 8 cruises
- Cell phone: iPhone, Android
- Complete SDK function, easy to integrate with other applications
Model | ED7004TAL | |
Video & Audio | ||
Video Input | 4 x BNC (HD TVI / HD AHD / 960H) | |
IPC Input | 1 x IP Camera | |
Video Output | HDMI/VGA/CVBS(SPOT) | |
Audio In | 4 x RCA | |
Audio Out | 1 x RCA | |
Playback | ||
Playback | 4CH | |
Search Mode | Time, Motion, Single, or Multi-Channel | |
Recording | ||
Recording Resolution | 720P: 1280x 720,/ 1080P: 1920 x 1080 / 3MP; | |
Frame Rate (fps) | 30fps/CH @ 720P 12fps/CH @ 1080P, 15fps/CH @ 2MP (for IPC) | |
Bit Rate | 1M ~ 6Mbps | |
Encode | VBR/CBR | |
Record Mode | Manual, Timer, Motion | |
Quality | 6 Level | |
File Manage | Lock, Unlock, Reserving Time | |
Alarm | ||
Alarm In | 4CH | |
Alarm Out | 1CH | |
Trigger Events | Record, PTZ Move, E-Mail, etc. | |
Mode | Motion, Video Loss | |
Network | ||
Ethernet | RJ 45 | |
Protocol | TCP/IP, UDP, DHCP, DNS, PPPoE, DDNS | |
User Access | 10 Users online, dual stream | |
Storage | ||
Internal HDD | 1 x SATA (Up to 6TB) | |
External HDD | N/A | |
Auxiliary Interface | ||
RS485 | 1 x RS485, Connect to PTZ or keyboard | |
USB | 2 x USB2.0, one for mouse & one for backup | |
General | ||
Power Supply | DC 12V | |
Power Consumption | 2A | |
Working Environment | 14℉ ~ 122℉ (-10℃ ~ 50℃), 10%~90% (Humidity) | |
Dimensions | 10" x 8.3" x 1.7" (WxDxH) |
