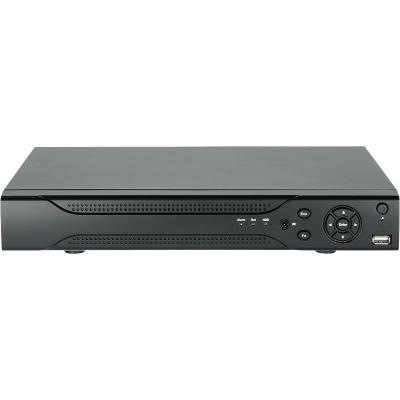

Eyemax CVST-CHR-08 8 Channel 720p HD Standalone HD-CVI DVR System

Additional View

The CHR series are excellent digital monitor product designed for security field and adopt embedded Linux OS to maintain reliable operation. CHR series are easy to use with simple setup and have various functions such as record, playback, monitor at the same time and can guarantee audio video synchronization. CHR series built with advanced technology and strong network data transmission function.

The CHR series adopt embedded design for maximum security and reliability, they can be widely used in various areas such as banking, telecommunication, electric power, interrogation, transportation, intelligent resident zone, factory, warehouse, resources, and water conservancy.

Model	CVST-CHR-08
System
Main Processor	High-performance industrial embedded micro controller
OS	Embedded LINUX
System Resources	Multiplex operations: Multiple-channel record, multiple-channel playback and network operation simultaneously
Interface	User-friendly graphical user interface
Input Devices	USB mouse
Input Method	Arabic number, English character
Shortcut Function	Copy/paste operation, USB mouse right-key shortcut menu, double click USB mouse to switch screen.
Compression Standard
Video Compression	H.264
Audio Compression	G711A, G711U, PCM
Video monitor
Video Input	8-CH composite video input: (NTSC/PAL) BNC (1.0Vp-p, 75?)
Video Output	1-ch VGA output. 1-ch HDMI output. Support VGA/HDMI video output at the same time.
Video Standard	Support PAL/NTSC.
Record Speed	Real-time Mode: PAL 1f/s to 25f/s per channel and NTSC 1f/s to 30f/s per channel
Video Partition	1/4/8/9 windows
Monitor Touring	Support monitor tour functions such as motion detection, and schedule auto control.
Resolution (PAL/NTSC)	Playback: All-ch: 720P 1280?720, 960H 960?576/960?480, D1 704?576/704?480, HD1 352?576/352?480, 2CIF 704?288/704?240, CIF 352?288/ 352?240 , QCIF 176?144/176?120 Support dual streams: extra stream resolution CIF 352?288/ 352?240, QCIF 176?144/176?120
Image Quality	6-level image quality (Adjustable)
Privacy mask	Support one privacy mask of user-defined size in full screen. Support max 4 zones
Image Information	Channel information, time information and privacy mask zone.
TV Adjust	Adjust TV output zone suitable to anamorphic video.
Channel Lock	Cover secret channel with black screen though system is encoding normally. Screen-lock function to prevent unauthorized user seeing secret video.
Channel Information	Channel name, recording status, screen lock status, video loss status and motion detection status are shown on the bottom left of display screen.
Color Configuration	Hue, brightness, contrast, saturation and gain setup for each channel.
Audio
Audio Input	1-ch 200-2000mv 10K?(RCA)
Audio Output	1-ch audio output 200-3000mv 5K?(RCA)
Bidirectional Audio	Reuse the audio input/output channel.
Hard Disk
Hard disk	1 built-in SATA port. Support 1 HDD.
Max. Capacity per SATA	4TB
Hard Disk Occupation	Audio:PCM 28.8MByte/h Video:56-900MByte/h
Record and playback
Recording Mode	Manual recording, motion detection recording, schedule recording and alarm recording Priority: Manual recording> alarm recording>motion detection recording>schedule recording.
Storage Mode	Support channel record quota setup
Recording Length	1 to 120 minutes single record duration (Default setup is 60 minutes)
Playback Repeat Way	When hard disk is full, system can overwrite previous video file.
Record Search	Various search engines such as time, type and channel.
Playback Mode	Various fast play, slow play speeds, manual frame by frame playback and reverse play mode.
Various File Switch Ways	Can switch to previous or next file or any file in current play list. Can switch to file on other channel of the same time. (If there is a file) Support file continuous play, when a file is end system auto plays the next file in the current channel
Playback Way	Support mark playback
Multi-channel Playback	There is 1/4-channel playback mode.
Window Zoom	Switch between self-adaptive screen/full screen when playback
Partial Enlargement	When in one-window full-screen playback mode, you can select any zone to activate partial enlargement function.
Backup function
Backup Mode	HDD backup Support peripheral USB backup device. (Flash disk, portable disk and etc.) Support network download and save
Network Function
Network control	View monitor channel remotely. DVR configuration through client-end and web browser Upgrade via client or browser to realize remote maintenance. View alarm information such as motion detection and video loss via client. Support network PTZ lens control File download backup and playback Multiple devices share information via corresponding software such as professional surveillance software (PSS) Duplex transparent COM Network alarm input and output Zero-channel encoding. Bidirectional audio.
Motion Detection and Alarm
Motion Detection	Zone setup: support 396((PAL 22?18, NTSC 22?15)) detection zones. Various sensitivity levels. Alarm can activate record or external alarm or screen message prompt.
Video Loss	Alarm can activate screen message prompt.
External Alarm	N/A
Manual Alarm Control	N/A
Alarm Input	N/A
Alarm Output	N/A
Alarm Relay	N/A
Interface
USB Interface	2 ? USB 2.0 port.
Network connection	RJ45 10M/100M self-adaptable Ethernet port
RS485	PTZ control port Support various PTZ control protocols.
RS232	N/A
System Information
Hard Disk Information	Display HDD current status
Data stream statistics	Data Stream Statistics for each channel (in wave mode)?
Log statistics	Backup to 1024 log files Support various search engines such as time and type
Version	Display version information: channel amount, system version and release date
On-line user	Display current on-line user
User Management
User Management	Multi-lever user management; various management modes Integrated management for local user, serial port user and network user. Configurable user power. Support user/group and its corresponding rights modification. No limit to the user or group amount.
Password Authentication	Password modification: Administrator can modify other user?s password. Account lock strategy: Five times login failure in thirty minutes may result in account lock.
Upgrade
Web browser, client-end and update tool.
Login, Logout and Shutdown
Password login protection to guarantee safety User-friendly interface when login. Provide the following options: Logout /shutdown/ restart. Right authentication when shut down to make sure only those proper people can turn off DVR
General Parameter
Power	DC 12V
Power Consumption	?15W (With adapter, exclude HDD)
Working Temperature	?10?C~+55?C (14?F ~ 131?F)
Working Humidity	10%~90%
Air Pressure	86kpa~106kpa
Dimension	12.79(W) ? 9.65(D) ? 1.77(H)inch (325(W) ? 245(D) ? 45(H)mm)
Weight	2.76 lbs / 1.25Kg (Exclude HDD)
Installation Mode	Desktop installation
