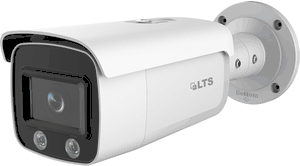

LTS CMIP9C42NW-M 4 MP Full Color Fixed Bullet Network Camera

Model	CMIP9C42NW-M
Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Min. Illumination	0.0014 @ (F1.0, AGC ON), 0 Lux with Light
Shutter Speed	1/3 s to 1/100,000 s
Slow Shutter	Yes
DNR	3D DNR
Wide Dynamic Range	120dB
Angle Adjustment	Pan: 0� to 360�, tilt: 0� to 90�, rotate: 0� to 360�
Lens
Focal length	4 mm
Aperture	F1.0
Focus	Fixed
FOV	4 mm, horizontal FOV: 94�, vertical FOV: 48�, diagonal FOV: 115�
Lens Mount	M16
Compression Standard
Video Compression	Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main stream supports
H.265 Type	Main Profile
H.265+	Main stream supports
Video Bit Rate	32 Kbps to 16 Mbps
Smart Feature-Set
Behavior Analysis	Line crossing detection, intrusion detection, object removal detection, unattended baggage detection
Exception Detection	Scene change detection
Face Detection	Yes
Max. Resolution	2688 � 1520
Main Stream	50Hz: 25fps (2688 � 1520, 2560 � 1440, 2304 � 1296, 1920 � 1080, 1280 � 720) 60Hz: 30fps (2688 � 1520, 2560 � 1440, 2304 � 1296, 1920 � 1080, 1280 � 720)
Sub-Stream	50Hz: 25fps (640 � 480, 640 � 360, 320 � 240) 60Hz: 30fps (640 � 480, 640 � 360, 320 � 240)
Third stream	50Hz: 25fps (1280 � 720, 640 � 360, 352 � 288) 60Hz: 30fp s(1280 � 720, 640 � 360, 352 � 240)
Image Enhancement	BLC/3D DNR/HLC
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch	Day/Night
ROI (Region of Interest)	Support 1 fixed region for main stream and sub-stream separately
Network
Network Storage	Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function	One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
API	ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View	Up to 6 channels
User/Host	Up to 32 users 3 levels: Administrator, Operator and User
Web Browser	Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Interface
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage	Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
General
Operating Conditions	-30 �C to +60 �C (-22 �F to +140 �F), humidity 95% or less (non-condensing)
Power Supply	12 VDC � 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
Power Consumption	12 VDC, 0.7 A, max. 9.5 W PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 11 W
Visible Light Range	Up to 98ft(30m)
Protection Level	IP67
Material	Front cover: metal, back cover: metal
Dimensions	Camera: Φ105 � 290.7 mm (Φ4.1" � 4.1") With package: 385 � 190 � 180 mm (15.2" � 7.5" � 7.1")
Weight	Camera: 1200 g (2.6 lb.) With package: 1800 g (4 lb.)

free shipping

orders $500 and up

Search Product

Products

customer services

By Manufacturer

By Price

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

LTS CMIP9C42NW-M 4 MP Full Color Fixed Bullet Network Camera

SKU#

:

CMIP9C42NW-M

Regular Price

:

$259.95

Sale Price

:

$219.95

You Save

$40.00(15.39% )

Availability

:

Usually ships the next business day
