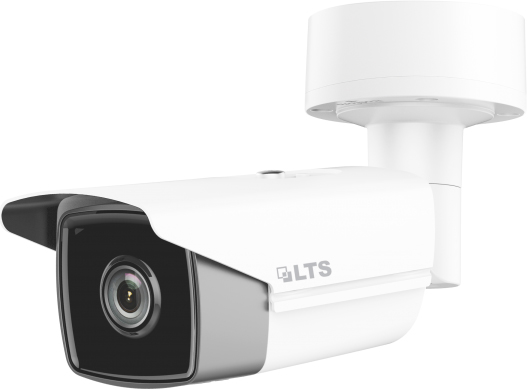

LTS CMIP9342W-28M Platinum Matrix IR Bullet Network IP Camera 4MP - 2.8mm

SKU#

:

CMIP9342W-28M

Regular Price

:

$249.95

Sale Price

:

$169.95

You Save

$80.00(32.01% )

Availability

:

Usually ships the next business day

Power Supply

:

Pre-Made Cat5e Cable

:

Quantity

:

LTS CMIP9342W-28M Platinum Matrix IR Bullet Network IP Camera 4MP - 2.8mm

Model	CMIP9342W-28M
Camera Series	Platinum Series
Camera Resolution	4MP
Camera Technology	IP / Network
Camera Housing	Bullet
Featured Product	No
Camera
Image Sensor	1/3" Progres s ive S can CMOS
Min. Illumination	0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed	1/3 s to 1/100,000s
Lens	2.8mm: horizontal FOV:98�, vertical FOV: 55�, diagonal FOV: 114�
Lens Mount	M12
Day & Night	IR cut filter
DNR	3D DNR
Wide Dynamic Range	120dB
Angle Adjustment	Pan:0� ~ 360�, T ilt: 0� ~ 100�, Rotation: 0� ~ 360�
Compression Standard
Video Compression	Main stream: H.26 5/H.264 Sub stream: H.265/H.26 4/MJPEG Third stream: H.26 5/H.264
H.264 Type	Main Profile / High Profile
H.264 Zip+	Support
H.265	Main Profile
H.265+	Support
Video Bit Rate	32 Kbps ~ 16 Mbps
Max. Resolution	2560 � 1440
Frame Rate	50Hz: 20 fps (3840 � 2160), 25 fps (2560 � 1920, 2560 � 1440, 1920 � 1080, 1280 � 720) 60Hz: 20 fps (3840 � 2160), 30 fps (2560 � 1920, 2560 � 1440, 1920 � 1080, 1280 � 720)
Sub Stream	50Hz: 25fps (640 � 480, 640 � 360, 320 � 240) 60Hz: 30fps (640 � 480, 640 � 360, 320 � 240)
Third Stream	50Hz: 25fps (1280�720, 640�360, 352�288) 60Hz: 30fps (1280�720, 640�360, 352�240)
Behavior Analysis	Line crossing detection, intrusion detection
Face Detection	Yes
Network
Network Storage	Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General	One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
Standard	ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface	1 RJ45 10M/100M Ethernet port
Reset	Yes
General
Working Temperature/Humidity	-22 �F ~ 140�F (-30 �C ~ 60 �C) Humidity 95% or less (non-condensing
Power Supply	DC12V � 25%, PoE (802.3af)
Power Consumption	DC 12V, 0.6A, max. 7.5W
IR Range	Approx. 165ft(50 meters)
Weather Proof Ratings	IP67
Dimensions	Φ4.13″ � 11.80″ (Φ105 � 299.7 mm)
Weight	2.7lbs (1200 g)
