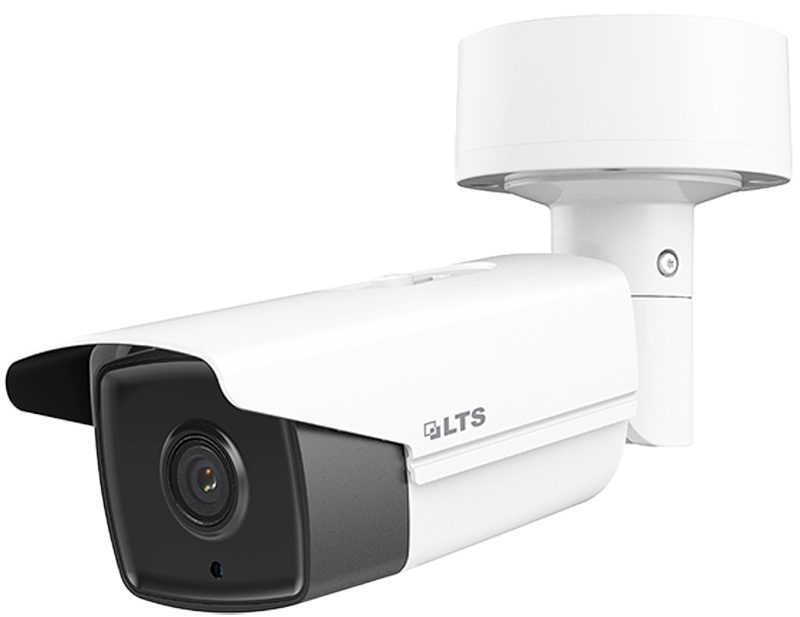

LTS CMIP9142W-6 4.1MP Platinum Matrix IR Bullet Network IP Camera
LTS CMIP9142W-6 4.1MP Platinum Matrix IR Bullet Network IP Camera
- 4.1MP High Definition
- 2688 X 1520P@20fps
- 6mm Fixed Lens
- H.264 Zip+
- 2 Matrix IR up to 165ft
- True WDR 120dB
- 3D DNR, BLC, VCA
- IP66
- DC 12V, PoE
- Junction Box Included
Model | CMIP9142W-6 | |
Camera Series | Platinum Series | |
Camera Resolution | 4.1MP | |
Camera Technology | IP / Network | |
Camera Housing | Bullet | |
Featured Product | No | |
Camera | ||
Image Sensor | 1/3" Progressive Scan CMOS | |
Min. Illumination | 0.01Lux @(F1.2,AGC ON), 0.02 8Lux @(F2.0,AGC ON), 0 Lux with IR | |
Shutter Speed | 1/3 s to 1/10,000 s | |
Slow Shutter | Support | |
Lens | 6mm | |
Lens Mount | M12 | |
Day & Night | IR cut filter with auto switch | |
DNR | 3D DNR | |
Wide Dynamic Range | 120dB | |
Compression Standard | ||
Video Compression | H.264 / MJPEG/H.264 Zip+ | |
H.264 Type | Main Profile | |
Video Bit Rate | 32 Kbps ~ 8 Mbps | |
Image | ||
Max. Resolution | 2688×1520 | |
Frame Rate | 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720) 50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720) | |
Image Setting | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser | |
BLC | Support, zone configurable | |
ROI Codec | Support | |
Network | ||
Network Storage | NAS (Support NFS,SMB/CIFS) | |
Alarm Trigger | Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception | |
Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | |
General | Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access | |
Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI | |
Interface | ||
Communication Interface | 1 RJ45 10M/100M Ethernet port | |
Reset | Yes | |
General | ||
Working Temperature /Humidity | -22 °F ~ 140 °F (-30 °C ~ 60 °C) Humidity 95% or less (non-condensing) | |
Power Supply | DC12V ± 10%, PoE (802.3af) | |
Power Consumption | Max. 7.5W | |
IR Range | Approx. 165ft (50 meters) | |
Weather Proof Ratings | IP66 | |
Dimensions | 11.8’’ × 3.4’’ × 3.35’’ (299.7 × 86.5 × 85.1mm) | |
Weight | 2.7 lbs (1200g) |
