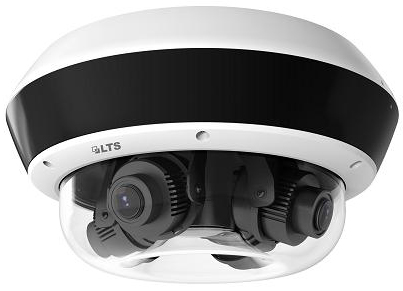

LTS CMIP7553W4-SZ Matrix IR Flexible Panorama Network Camera

Call Toll Free 866-446-CCTV (2288) Mon-Fri 9am-6PM EST

0 Items $0.00

free shipping

to USA & CANADA

orders $500 and up

Click For Details

Search Product

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

One year warranty on all products

Home

IP Cameras and Network Video Recorders NVRs

IP Cameras and NVR's by LTS

H.265 / H.265+ Compression IP Cameras, All Models 2MP-8MP 4K Ultra HD

LTS Platinum Series Dome IP Cameras H.265/H265+

LTS CMIP7553W4-SZ Matrix IR Flexible Panorama Network Camera

Model	CMIP7553W4-SZ
Camera Series	Platinum Series
Camera Resolution	5MP
Camera Technology	IP / Network
Camera Housing	Dome
Featured Product	No
Camera
Image Sensor	1/2.7" Progressive Scan CMOS
Min. Illumination	Color: 0.01 Lux @ (F1.6, AGC ON) B/W: 0.003 Lux @ (F1.6, AGC ON) 0 Lux with IR on
Shutter Speed	1 s - 1/100,000 s
Auto-Iris	No
Day & Night	IR cut filter with auto switch
Digital Noise Reduction	3D DNR
Wide Dynamic Range	True WDR 120dB
3-Axis Adjustment	Four flexiblelensin one track, slide range: -180� to 180�, tilt: 0� to 135�,rotate:0� to 355�
Lens
Focal Length	2.8mm to 12mm
Aperture	F1.6
Field of View	Horizontal field of view: 30�to 101� Vertical field of view: 22.4�to 73� Diagonal field of view: 37� to 137�
Lens Mount	?14
IR
IR Range	10 m to 30 m
Wavelength	850nm
Compression Standard
Video Compression	Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264
H.264 / H.264+ Type	Baseline Profile, Main Profile, High Profile/Support
H.265 / H.265+ Type	Main Profile/Support
Video Bit Rate	32 Kbps to 16 Mbps
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps(AAC)
Smart Feature-set
Behavioral Analysis	Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Exception Detection	Audio exception detection, scene change detection, defocus detection
Face Detection	Yes
Region of Interest	Support 4 fixed region for each stream
Max. Resolution	2560 x 1920
Main Stream	50Hz: 25fps (2560 � 1920, 2048 � 1536, 1920 � 1080, 1280 � 720) 60Hz: 24fps (2560 � 1920, 2048 � 1536, 1920 x 1080,1280 x 720)
Sub Stream	50Hz: 25fps (704 � 576, 640 � 480) 60Hz: 24fps (704 � 480, 640 � 480)
Third Stream	50Hz: 6fps (1920 � 1080, 1280 � 720, 704 � 576, 640 � 480) 60Hz: 8fps (1920 � 1080, 1280 � 720, 704 � 480, 640 � 480)
Image Enhancement	BLC, 3D DNR, EIS
Image Setting	Rotate mode, saturation, brightness, contrast, sharpness, and white balance are adjustable by client software or web browser
SVC	H.264 Support
Day/Night Switch	Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
Picture Overlay	LOGO picture can be overlaid on video with 128 x 128 24bit BMP format
Network
Network Storage	Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP
General Function	One-key reset, anti-flicker, mirror, heartbeat, password protection, privacy mask, watermark, IP address filter
API	ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View	Up to 20 channels
User/Host	Up to 32 users 3 levels: Administrator, Operator and User
Web Browser	IE8+, Chrome31-44, Firefox 30.0 - 51
Interface
Audio	1-ch 3.5 mm input (line in/Mic in), 1-ch 3.5mm output, dual-track, stereo
Communication Interface	1 RJ45 10M/100M/1000M Ethernet port 1 RS-485 interface
On-board Storage	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
Audio
Environment Noise Filtering	Support
Audio Sampling Rate	8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
General
Operating Conditions	-30 �C to 60 �C (-22 �F to 140 �F). -H: -40 �C to 60 �C (-40 �F to 140 �F) Humidity 95% or less (non-condensing)
Power Supply	12 VDC � 20%, 24 VAC � 20% (for customization), three-core terminal block, -IZ, -IZHS/NFC: Hi-PoE: 42.5 VDC to 57 VDC, -Z: PoE (802.3at)
Power Consumption and Current	12 VDC � 20%: max. 28 W/2.3 A 24 VAC � 20%, max. 50 to 60 Hz/2.5 A (for customization) - IZ, -IZHS/NFC: Hi-PoE: 42.5 VDC to 57 VDC, max. 34W/0.9 A to 0.6 A - Z: PoE (802.3at): 42.5 VDC to 57 VDC, max. 17W
Protection Level	IP67, IK10
Material	Aluminum alloy, engineering plastics
Dimensions	Camera: � 290 mm � 145.5 mm (� 11.42" � 5.73") Package: 453 mm � 393 mm � 385 mm (17.8" � 15.47" � 15.16")
Weight	Camera: Approx. 4.7 kg (10.3 lb.) With package: Approx. 7.7 kg (16.8 lb.)
