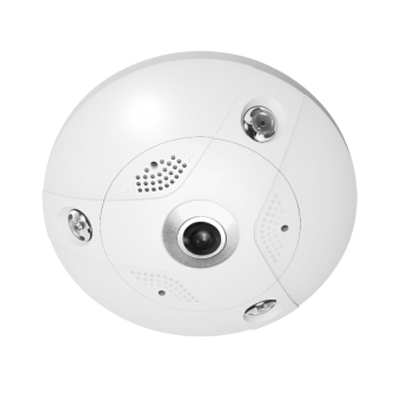

LTS CMIP7532FW 3 Megapixel WDR Fisheye Network Camera

1/3" sensor
3 megapixel image sensor
Up to 2048 x 1536 real-time streaming
120dB wide dynamic range
360�view angel
Multiple viewing modes
Multiple ePTZ streams with preset and
patrol functions
Up to 33ft(10m) IR range

Model	CMIP7532FW
Camera
Image Sensor?	1/3"Sensor
Min. Illumination	0.1Lux @ (F1.2,AGC ON),0.6Lux @ (F2.8,AGC ON ) 0 lux with IR
Shutter Speed	1/25 s to 1/100,000 s
Slow Shutter	Support
Lens	1.19mm @F2.0, angle of view: 360?
Lens mount	M12
Day & Night	ICR
Digital Noise Reduction	3D DNR
Wide dynamic range	120dB WDR
Compression Standard
Video Compression	H.264/MPEG4/MJPEG
H.264 Type	Baseline Profile/Main Profile/High Profile
Video Bit Rate	32 Kbps-16 Mbps
Audio Compression	G.711/G.726/MP2L2
Audio Bit Rate	64Kbps(G.711) / 16Kbps(G.726) / 64Kbps (MP2L2)
Max Resolution	2048?1536
Frame Rate	High-frame Mode: support 50Hz: 1 x fisheye (2048 x 1536, 25fps) or (1536 x 1536, 25fps) or 4 x PTZ (800 x 600, 25fps) 60Hz: 1 ? fisheye (2048*1536, 30fps) or (1536 ? 1536, 30fps) or 4 ? PTZ (800 ? 600, 30fps) Multi-channel Mode: support 50Hz: 1 x fisheye (1536 ? 1536, 20fps) and 1 x panoramic (1600 x 1200, 20fps) and 3 x PTZ (800 x 600, 20fps) 60Hz: 1 x fisheye (1536 ? 1536, 20fps) and 1 x panoramic (1600 x 1200, 20fps) and 3 x PTZ (800 x 600, 20fps)
Image Setting	Saturation, Brightness, Contrast adjust by client software or web browser
Backlight Compensation	Backlight Compensation
Day/night Switch	Auto / Schedule / Alarm trigger
Network
Network Storage	NAS
Alarm trigger	Motion detection, dynamic analysis, tamper alarm, network disconnect, IP address conflict,storage full, storage error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional)
Security	User Authentication, Watermark, IP address filtering, Anonymous access
Standard	ONVIF, PSIA, CGI
Interface
Communication Interface	1 RJ45 10M/100M Ethernet port, 1 RS-485 interface
On-board storage	Built-in Micro SD/SDXC slot, up to 64 GB
General
Working Temperature	-22?F - 140?F(-30 ?C - 60 ?C()
/Humidity	Humidity 95% or less (non-condensing)
Power Supply	12V DC/ PoE
Power Consumption	Max.11W
IR range	Max. 33ft(10m)
Protection	IEC 60068-2-75 test, Eh, 50J; EN 50102, EN50155
Dimension?	164x152.8x45.5mm (6.46"x6.02"x1.79")
Weight	1.7lb(800 g )
