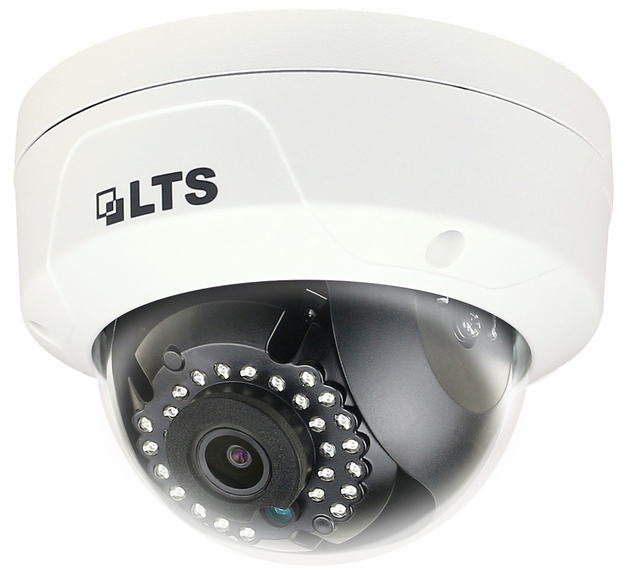

LTS CMIP7442W-28WIFI Platinum Network Mini WiFi Dome Camera 4.1MP

SKU#

:

CMIP7442W-28WIFI

Regular Price

:

$199.95

Sale Price

:

$189.95

You Save

$10.00(5.00% )

Availability

:

Usually ships the next business day

Quantity

:

LTS CMIP7442W-28WIFI Platinum Network Mini WiFi Dome Camera 4.1MP

Model	CMIP7442W-28WIFI
Camera Series	Platinum Series
Camera Resolution	4.1MP
Camera Technology	IP / Network
Camera Housing	Dome
Featured Product	No
Camera
Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Speed	1/3 s to 1/10,000 s
Lens	2.8mm，Angle of view：106 �
Lens Mount	M12
Day & Night	IR cut filter with auto switch
DNR	3D DNR
Wide Dynamic Range	120dB
Angle Adjustment	Pan: 0� - 355�, Tilt: 0� - 75�, Rotation: 0 - 355�
Compression Standard
Video Compression	H.264 / MJPEG
H.264 Type	Main Profile
Video Bit Rate	32 Kbps ~ 8 Mbps
Dual Streams	Support
Max. Resolution	2688�1520
Frame Rate	60Hz: 20fps(2688�1520), 30fps(1920�1080), 30fps(1280�720) 50Hz: 20fps(2688�1520), 25fps(1920�1080), 25fps(1280�720)
Image Setting	Rotate Mode, Saturation, Brightness , Contrast, Sharpness adjustable by client software or web browser
BLC	Support, zone configurable
ROI Codec	Support
Network
Network Storage	NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, Tampering alarm, Network dis connect, IP addres s conflict, Storage exception
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General	One- key reset, Flash- prevention, dual stream, mirror, password protection, privacy mask, watermark, IP address fitering, Anonymous access
Standard	ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface	1 RJ 45 10M / 100M Ethernet port
On-Board Storage	Built-in Micro SD/SDHC/SDXC slot, up to 128GB
Reset	Yes
Wi-Fi
Wireless Standards	IEEE802.11b, 802.11g, 802.11n
Frequency Range	20/40MHz Support
Channel Bandwidth	20/40MHz Support
Protocols	802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transfer Rates	11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range	50 meters *The performance varies based on actual environment
General
Working Temperature /Humidity	- 22�F ~ 140�F (- 30�C ~ 60�C) Humidity 95% or less (non- condensing)
Power Supply	DC12V �10%, PoE (802.3af)
Power Consumption	Max. 5W
IR Range	Approx. 100ft (30 meters )
Weather Proof Ratings	IP67
Impact Protection	IEC60068-2-75Eh, 20J; EN50102, up to IK10
Dimensions	Φ4.4"x3.2" (Φ111x82.0mm)
Weight	1.1 lbs (500 g)
