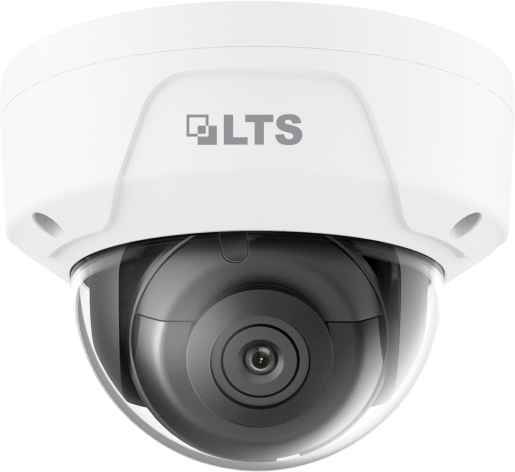

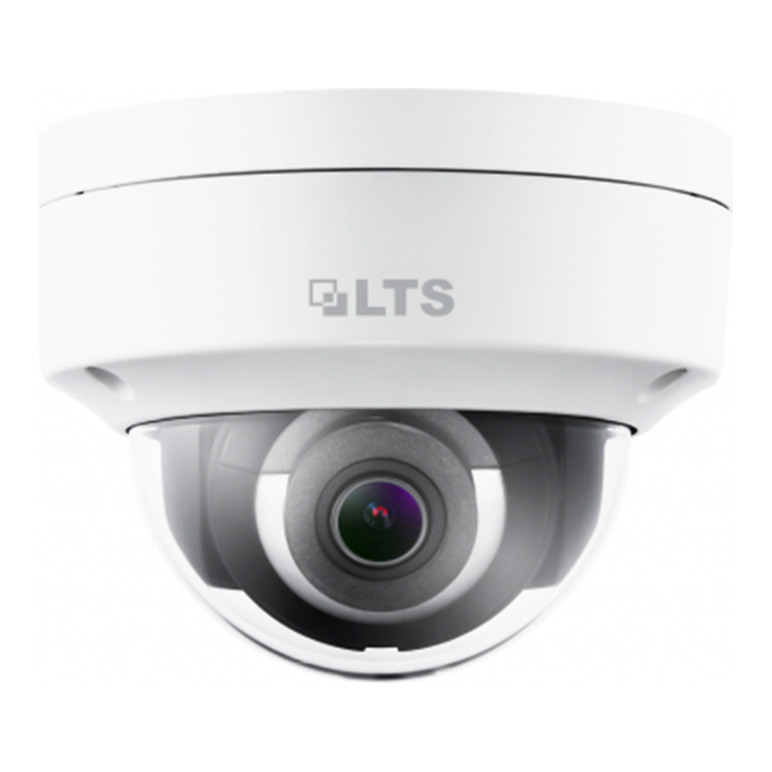

LTS CMIP7342W-28M Platinum Network Vandal Dome IP Camera 4MP - 2.8mm

SKU#

:

CMIP7342W-28M

Regular Price

:

$199.95

Sale Price

:

$124.95

You Save

$75.00(37.51% )

Availability

:

Usually ships the next business day

Power Supply

:

Pre-Made Cat5e Cable

:

Quantity

:

LTS CMIP7342W-28M Platinum Network Vandal Dome IP Camera 4MP - 2.8mm

CMIP7342W-28M Platinum Network Vandal Dome IP Camera 4MP - 2.8mm comes with an alarm function that works in case of Motion Detection, Video Tampering, Network Disconnected, IP Address Conflicted, Illegal Login, HDD error. It offers maximum image resolution of 2560 × 1440 @30fps. It has Micro SD card Slot up to 128GB which can store large sized videos and images.

Model	CMIP7342W-28M
Camera Series	Platinum Series
Camera Resolution	4MP
Camera Technology	IP / Network
Camera Housing	Dome
Featured Product	No
Camera
Image Sensor	1/3" Progres s ive S can CMOS
Min. Illumination	0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed	1/3 s to 1/10,000 s
Lens	2.8 mm: horizontal FOV:98°, vertical FOV: 55°, diagonal FOV: 114°
Lens Mount	M12
Day & Night	IR cut filter
DNR	3D DNR
Wide Dynamic Range	120dB
Angle Adjustment	Pan:0° ~ 360°, T ilt: 0° ~ 75°, Rotation: 0° ~ 360°
Compression Standard
Video Compression	Main stream: H.265+/H.265/H.264 Zip+/H.264 Sub stream: H.265+/H.265/H.264 Zip+/H.264/MJPEG Third stream: H.265+/H.265/H.264 Zip+/H.264
H.264 / H.264+ Type	Main / High Profile
H.265 / H.265+ Type	Main Profile / Sub-stream support
Video Bit Rate	32 Kbps ~ 16 Mbps
Dual Stream	Support
Max. Resolution	2560 × 1440
Main Stream	50Hz:25fps (2560×1440,2304×1296,1920×1080) 60Hz: 30fps (2560×1440,2304×1296,1920×1080)
Sub Stream	50Hz: 25fps (640 × 360, 352 × 288)60Hz: 30fps (640 × 360, 352 × 240)
Third Stream	50Hz: 25fps (1280×720, 640×360, 352×288) 60Hz: 30fps (1280×720, 640×360, 352×240)
Others	Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software
Behavior Analysis	Line Crossing Detection, Intrusion Detection
Network
Network Storage	Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion Detection, VideoTampering, Network Disconnected, IP Address Conflicted, Illegal Login, HDD Full, HDD error
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General	One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
Standard	ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
Reset	Built-in microSD/SDHC/SDXC slot, up to 128 GB
SVC	H.264 and H.265 encoding
General
Working Temperature /Humidity	-22 °F ~+140 °F(-30 °C ~ +60 °C ) Humidity 95% or less (non-condensing)
Power Supply	DC 12V ± 25%,PoE(802.3af)
Power Consumption	Max.6W
IR Range	Up to 100ft (30m)
Weather Proof Ratings	IP67
Impact Protection	IK10
Dimensions	Φ4.4″ × 3.2″ (Φ111 × 82.4 mm)
Weight	1.3lbs (610g)
