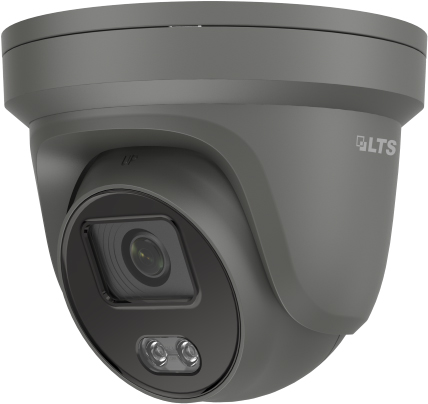

LTS CMIP3C42WB-28M 4 MP Color247 2.8mm Fixed Lens Turret Network Camera Black

Model	CMIP3C42WB-28M
Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Min. Illumination	0.0014 @ F1.0 (1/30 s, AGC ON), 0.002 @ F1.2 (1/30 s, AGC ON), 0 Lux with LED on
Shutter Speed	1/3 s to 1/100,000 s
Slow Shutter	Yes
Focal length	2.8 mm
Focus	Fixed
Aperture	F1.0
FOV	2.8 mm, horizontal FOV: 102�, vertical FOV: 51�, diagonal FOV: 125�
Lens Mount	M16
Auto-Iris	No
DNR	3D DNR
Wide Dynamic Range	120dB
3-Axis Adjustment	Pan: 0� to 355�, tilt: 0� to 75�, rotate: 0� to 355�
Compression Standard
Video Compression	Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264
H.264 Type	Baseline Profile/Main Profile/High Profile
H.264+	Main stream supports
H.265 Type	Main Profile
H.265+	Main stream supports
Video Bit Rate	32 Kbps to 8 Mbps
Max. Resolution	2560 � 1440
Main Stream	50Hz: 25fps (2560 � 1440, 1920 � 1080, 1280 � 720) 60Hz: 24fps (2560 � 1440), 30fps (2304 � 1296, 1920 � 1080, 1280 � 720)
Sub Stream	50Hz: 25fps (640 � 480, 640 � 360, 320 � 240) 60Hz: 30fps (640 � 480, 640 � 360, 320 � 240)
Third stream	50Hz: 1fps (1280 � 720, 640 � 480, 640 � 360, 352 � 288, 320 � 240) 60Hz: 1fps (1280 � 720, 640 � 480, 640 � 360, 352 � 288, 320 � 240)
Image Enhancement	BLC/3D DNR/HLC/Defog
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
ROI (Region of Interest)	No
Network
Network Storage	Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function	One-key reset, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
API	ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View	Up to 6 channels
User/Host	Up to 32 users 3 levels: Administrator, Operator and User
Web Browser	IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage	Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
SVC	H.265 encoding and H.264 encoding support
Smart Feature-set
Behavior Analysis	Line crossing detection, intrusion detection
General
Operating Conditions	-30 �C to +60 �C (-22 �F to +140 �F), humidity 95% or less (non-condensing)
Power Supply	12 VDC � 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
Power Consumption	12 VDC, 0.5 A, max: 6 W PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max: 7.5 W
Visible Light Range	Warm white LEDs (3000K), up to 98ft(30m)
Protection Level	IP67
Material	Camera body: Front cover: plastic, back cover: metal Bottom base: plastic
Dimensions	Camera: Φ130 � 103.6 mm (Φ5.1" � 4.1")
Weight	Camera: 500 g (1.1 lb.)
