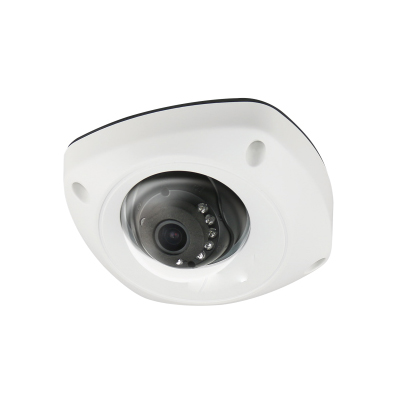

LTS CMIP3132-28S 3.0MP Mini Dome Network Camera
LTS CMIP3132-28S 3.0MP Mini Dome Network Camera
- 2.8mm fixed lens
- 3 megapixel (2048 x 1536) resolution
- HD real-time video
- Up to 10m(33ft) IR range
- DWDR & 3D DNR &BLC
- Onboard storage (up to 64GB)
- IP66 protection,Vandal proof
- Audio/Alarm I/O

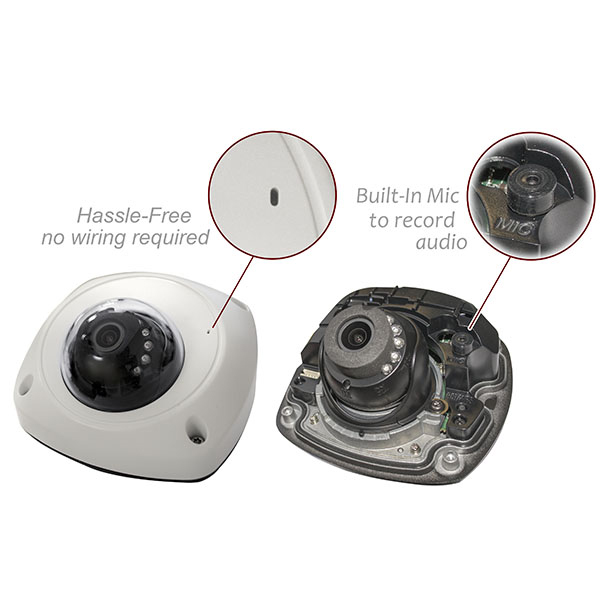

- Built-In Mic
Model | CMIP3132-28S |
Camera | |
Image Sensor? | 1/3" sensor |
Min. Illumination | 0.07 lux@F1.2, AGC on 0 lux with IR |
Shutter Speed | 1/25s ~ 1/100,000s |
Lens | 2.8mm@F2.0 2048 ? 1536:Angle of view: 86? 1920 ? 1080:Angle of view: 98.5? |
Lens Mount | M12 |
Day & Night | ICR |
Digital Noise Reduction | 3D DNR |
Wide Dynamic Range | Digital WDR |
Built-In Mic | Yes |
Backlight compensation | Yes,zone configurable |
Compression Standard | |
Video Compression | H.264 / MJPEG |
H.264 compression profile | Main profile |
Bit Rate | 32 Kbps ~ 16 Mbps |
Audio compression | G.711/G.726/MP2L2 |
Audio bit rate | 64Kbps(G.711) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
Image | |
Max. Resolution | 2048 ? 1536 |
Frame Rate | 60Hz: 20fps (2048 x 1536), 30fps (1920 ? 1080), 30fps (1280 x 720) 50Hz: 20fps (2048 x 1536), 25fps (1920 ? 1080), 25fps (1280 x 720) |
Image Settings | Saturation, brightness, contrast adjustable through client software or web browser |
Network | |
Network Storage | NAS ( iSCSI optional) |
Alarm Trigger | Motion detection, tampering alarm,network disconnect , IP address conflict, storage exception |
Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP, UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour |
System Compatibility | ONVIF, PSIA, CGI, ISAPI |
General functionalities | Flickerless, dual stream, heartbeat, mirror, user authentication, video mask, watermark |
Interface | |
Communication Interface | 1 RJ45 10M / 100M ethernet port |
On-board Storage | Built-in Micro SD card slot, up to 64 GB |
Alarm interface | 1/1 alarm I/O |
General | |
Working Temperature/Humidity | -30 ?C ~ 60 ?C (-22 ?F ~ 140 ?F), humidity 95% or less (non-condensing) |
Power Supply | DC12V ? 10%, PoE (802.3af) |
Power Consumption | Max. 5W |
Impact Protection | IEC60068-2-75Eh, 50J; EN50102, up to IK08 |
Ingress Protection Level | IP66 |
IR Range | Up to 10m(33ft) |
Dimension? | 99.3 ? 96.7 ? 52.8mm(3.9" ? 3.8" ? 2.1") |
Weight | 600g(1.3lb) |
