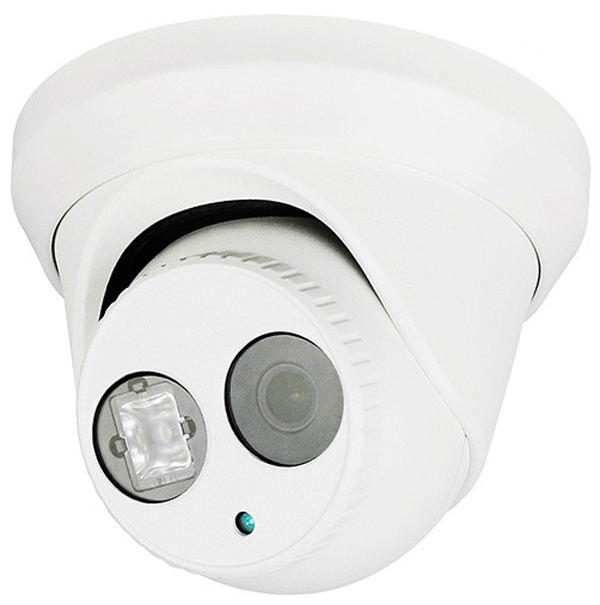

LTS CMIP3022W-28 Platinum Fixed Lens Turret 2.1MP - 2.8mm IP Camera

SKU#

:

CMIP3022W-28

Regular Price

:

$239.95

Sale Price

:

$129.95

You Save

$110.00(45.84% )

Availability

:

Usually ships the next business day

Quantity

:

Description
Features
Specifications
Accessories
Downloads
Product Review

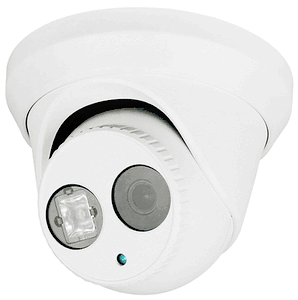

LTS CMIP3022W-28 Platinum Fixed Lens Turret 2.1MP - 2.8mm IP Camera

2.1MP High Definition
True 120dB Wide Dynamic Range
2.8mm Fixed Lens
1920x1080P@30fps
1 Matrix IR LED up to 100ft
3D DNR, BLC
Intelligent H.264 Zip+
IP66
DC 12V
PoE

Model	CMIP3022W-28
Camera Series	Platinum Series
Camera Resolution	2.1MP / 1080P
Camera Technology	IP / Network
Camera Housing	Turret
Featured Product	No
Camera
Image Sensor	1/2.8 " Progressiv e Sca n CMOS
Min. Illumination	0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed	1/3 s to 1/10,000 s
Lens	2.8mm
Lens Mount	M12
Day & Night	IR cut filter with auto switch
DNR	3D DNR
Wide Dynamic Range	120dB
Angle Adjustment	Pan:0� ~ 360�, Tilt: 0� ~ 75�, Rotation: 0� ~ 360�
Compression Standard
Video Compression	H.264 / MJPEG/H.264 Zip+
H.264 Type	Main Profile
Video Bit Rate	32 Kbps ~ 8 Mbps
Dual streams	Support
Max. Resolution	1920�1080
Frame Rate	60Hz: 30fps (1920 � 1080), 30fps (1280 � 960), 30fps (1280 � 720) 50Hz: 25fps (1920 � 1080), 25fps (1280 � 960), 25fps (1280 � 720)�
Image Setting	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software�or web browser
BLC	Support, zone configurable
ROI Codec	Support
Network
Network Storage	NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE,�NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General	One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection,�privacy mask, watermark, IP address filtering, Anonymous access
Standard	ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface	1 RJ45 10M/100M Ethernet port
Reset	Yes
General
Working Temperature /Humidity�	-22 � F ~ 140 �F (-30 �C ~ 60 �C) Humidity 95% or less (non-condensing)�
Power Supply	DC12V � 10%, PoE (802.3af)
Power Consumption	Max. 5.5W (Max. 7.5W with ICR on)
IR Range	Approx. 100ft (30 meters)
Weather Proof Ratings	IP66
Dimensions	Φ 5.0� � 3.8� (?127�97.5mm)
Weight	1.5 lbs (670g)
