LTS CMIP1142W-28 Platinum IP Fixed Lens Turret Matrix 4.1MP - 2.8mm IR Camera

SKU#

:

CMIP1142W-28

Regular Price

:

$299.95

Sale Price

:

$169.95

You Save

$130.00(43.34% )

Availability

:

Usually ships the next business day

Quantity

:

Description
Features
Specifications
Accessories
Downloads
Product Review

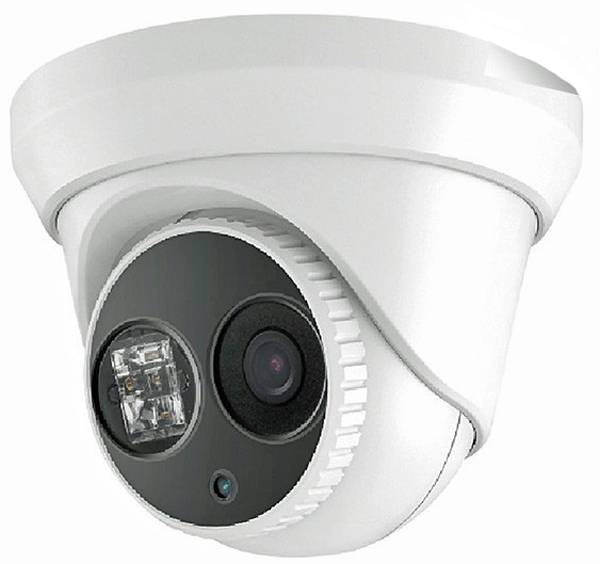

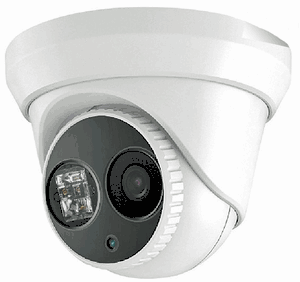

LTS CMIP1142W-28 Platinum IP Fixed Lens Turret Matrix 4.1MP - 2.8mm IR Camera

4MP High Definition
2688x1520P@20fps
120dB True WDR
3D DNR, BLC
Intelligent H.264 Zip+
1 Matrix IR up to 100ft
IP66
DC 12V
PoE

Model	CMIP1142W-28
Camera Series	Platinum Series
Camera Resolution	4.1MP
Camera Technology	IP / Network
Camera Housing	Turret
Featured Product	No
Camera
Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed	1/3 s to 1/10,000 s
Lens	2.8mm
Lens Mount	M12
Day & Night	IR cut filter with auto switch
DNR	3D DNR
Wide Dynamic Range	120dB
Angle Adjustment	Pan:0� ~ 360�, Tilt: 0� ~ 75�, Rotation: 0� ~ 360�
Compression Standard
Video Compression	H.264 / MJPEG/H.264 Zip+
H.264 Type	Main Profile
Video Bit Rate	32 Kbps ~ 8 Mbps
Dual Streams	Support
Max. Resolution	2688�1520
Frame Rate	60Hz: 20fps (2688�1520), 30fps (1920�1080), 30fps(1280�720) 50Hz: 20fps (2688�1520), 25fps(1920�1080), 25fps(1280�720)�
Image Setting	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software�or web browser
BLC	Support, zone configurable
ROI Codec	Support
Network
Network Storage	NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE,�NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General	One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection,�privacy mask, watermark, IP address filtering, Anonymous access
Standard	ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface	1 RJ45 10M/100M Ethernet port
Reset	Yes
General
Working Temperature /Humidity	-22 �F ~ 140 �F (-30 �C ~ 60 �C) Humidity 95% or less (non-condensing)
Power Supply	DC12V � 10%, PoE (802.3af)
Power Consumption	Max. 5.5W (Max. 7.5W with ICR on)
IR Range	Up to 100ft (30 meters)
Weather Proof Ratings	IP66
Dimensions	Φ 5.0� � 3.8� (?127�97.5mm)
Weight	1.5 lbs (670g)
