Home HD-TVI High Definition Cameras and DVRs HD-TVI Security Cameras Bullet Indoor/Outdoor HD TVI Cameras LTS CMHR9683D-ZF 8 MP 4-in-1 Bullet Camera

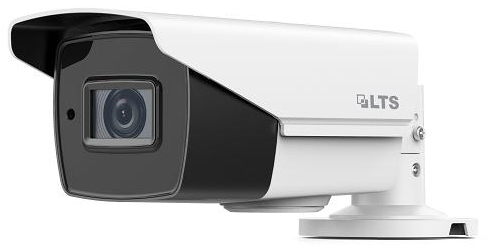

LTS CMHR9683D-ZF 8 MP 4-in-1 Bullet Camera
LTS CMHR9683D-ZF 8 MP 4-in-1 Bullet Camera
- 8.29 MP high performance CMOS
- Auto focus
- 3840 × 2160 resolution
- 2.7 mm to 13.5 mm motorized vari-focal lens
- Matrix IR 2.0, smart IR, up to 197ft(60 m) IR distance
- DWDR, DNR
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP67
- OSD Menu via UTC technology with Platinum DVR
Model | CMHR9683D-ZF | |
Camera Series | Platinum Series | |
Camera Resolution | 4K | |
Camera Technology | HD-TVI | |
Camera Housing | Bullet | |
Featured Product | No | |
CAMERA | ||
Image Sensor | 8.29 megapixel progressive scan CMOS | |
Signal System | PAL/NTSC | |
Frame Rate | TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 5MP@20fps CVBS: 960H P/N | |
Min. Illumination | Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR | |
Lens | 2.7 mm to 13.5 mm motorized vari-focal lens | |
Shutter Speed | PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s | |
Day & Night | ICR cut filter | |
Synchronization | Internal | |
Resolution | 3840 (H) × 2160 (V) | |
Angle Adjustment (Bracket) | Pan: 0° to 360°, Tilt:0° to 90°, Rotate: 0° to 360° | |
Lens Mount | F 14 | |
DWDR (Digital Wide Dynamic) | 105 dB | |
MENU | ||
AGC | Yes | |
D/N Mode | Color/ BW/ Auto | |
White Balance | Auto/Manual | |
BLC | Yes | |
Function | Brightness,Sharpness,Digital Noise Reduction, Mirror, Smart IR | |
GENERAL | ||
Working Temperature /Humidity | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) | |
Power Supply | 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC | |
Power Consumption | Max. 10.8 W | |
Weather Proof Ratings | IP67 | |
IR Range | Up to 263ft(80 m) | |
Dimensions | 84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10") | |
Weight | Approx. 695 g (1.53 lb.) |
