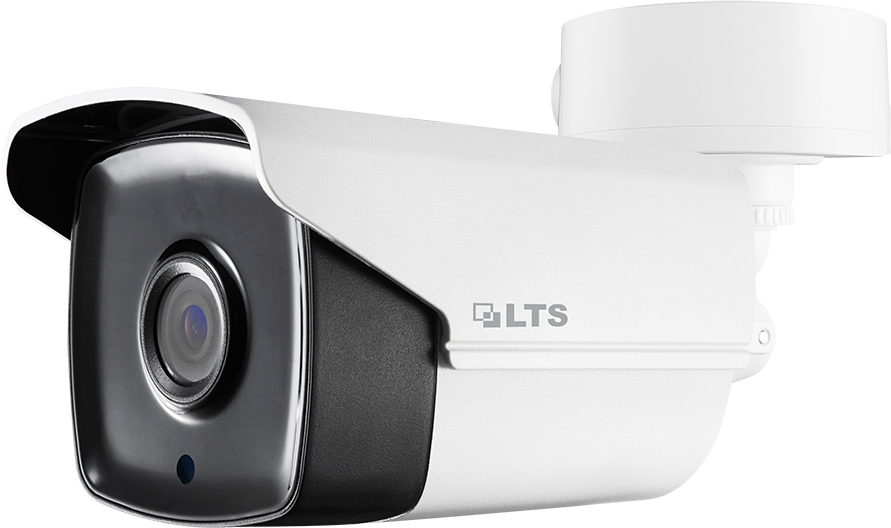

LTS CMHR9252WE-28F 5 MP Ultra-low-light Bullet Camera
LTS CMHR9252WE-28F 5 MP Ultra-low-light Bullet Camera
- 5 MP high performance CMOS
- 2560 × 1944 resolution
- 2.8 mm fixed lens
- Matrix IR 2.0, smart IR, up to 197ft(60 m) IR distance
- 3D DNR, 130 dB true WDR
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP67
- OSD Menu via UTC technology with Platinum DVR
Model | CMHR9252WE-28F |
Camera | |
Image Sensor | 5 megapixel progressive scan CMOS |
Signal System | PAL/NTSC |
Resolution | 2560 (H) × 1944 (V) |
Min. Illumination | Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR |
Frame Rate | TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps CVI: 4 MP@25fps, 4 MP@30fps CVBS: PAL, NTSC |
Shutter Time | PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s |
Lens | 2.8 mm fixed lens |
Horizontal Field of View | 98° (2.8 mm) |
Lens Mount | M12 |
Day & Night | IR cut filter |
Angle Adjustment (Bracket) | Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360° |
Synchronization | Internal synchronization |
WDR (Wide Dynamic Range) | ≥ 130 dB |
Menu | |
AGC | Yes |
Day/Night Mode | Auto/Color/BW (Black and White) |
White Balance | Auto/Manual |
BLC (Backlight Compensation) | Yes |
WDR | Yes |
3D DNR | Level 1 to 9 |
Privacy Mask | 4 programmable privacy masks |
Motion Detection | 4 programmable areas |
Language | English |
Functions | Brightness, Sharpness, 3D DNR, Mirror, Smart IR |
Interface | |
Video Output | 1 HD analog output |
Switch Button | TVI/AHD/CVI/CVBS |
General | |
Operating Conditions | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), humidity: 90% or less (non-condensation) |
Power Supply | 12 VDC ±25% |
Power Consumption | Max. 5.8 W |
Protection Level | IP67 |
Material | Metal |
IR Range | Up to 197ft(60 m) |
Communication | Up the coax, TVI output |
Dimensions | 81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58" ) |
Weight | Approx. 570 g (1.26 lb.) |
