Home HD-TVI High Definition Cameras and DVRs HD-TVI Security Cameras Bullet Indoor/Outdoor HD TVI Cameras LTS CMHR9252W-28CF 5MP Full Time Color Camera Large Bullet

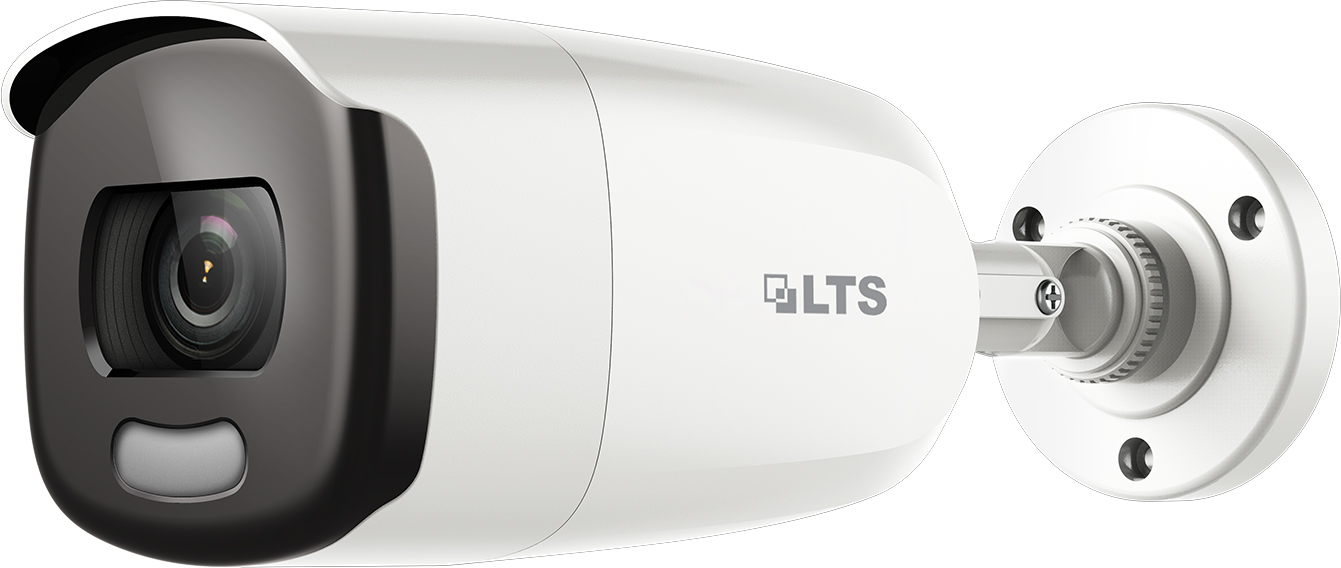

LTS CMHR9252W-28CF 5MP Full Time Color Camera Large Bullet
LTS CMHR9252W-28CF 5MP Full Time Color Camera Large Bullet
- 5MP High Definition
- 2.8mm Fixed Lens
- 2560x1944@20fps
- 0.0005 Lux@F1.0
- Clear White Light up to 131ft
- True WDR 120dB
- TVI/AHD/CVI/960H Switchable
- IP67
- Junction Box Included
Model | CMHR9252W-28CF |
Camera | |
Image Sensor | 5 MP CMOS |
Signal System | PAL/NTSC |
Resolution | 2560 (H) × 1944 (V) |
Frame Rate | TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC |
Min. illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with White Light |
Shutter Time | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
Slow Shutter | Max. 16 times |
Lens | 2.8 mm fixed lens |
Horizontal Field of View | 2.8 mm, horizontal FOV: 99.7°, vertical FOV: 72°, diagonal FOV: 139.8° |
Lens Mount | M16 |
Strobe Light Alarm | Yes |
Day & Night | Color |
WDR (Wide Dynamic Range) | ≥130 dB |
Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360° |
Menu | |
White Light | Auto/Off |
Image Mode | STD/HIGH-SAT |
AGC | Yes |
Day/Night Mode | Color |
White Balance | Auto/Manual |
AE (Auto Exposure) Mode | WDR/BLC/HLC/Global/HLS/Anti-banding |
Privacy Mask | 4 programmable privacy masks |
Motion Detection | 4 programmable motion areas |
Noise Reduction | 3D DNR |
Language | English |
Function | Brightness, Sharpness, Mirror, Smart Light |
Interface | |
Video Output | Switchable TVI/AHD/CVI/CVBS |
General | |
Operating Conditions | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), humidity: 90% or less (non-condensing) |
Power Supply | 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera. |
Power Consumption | Max. 4.9 W |
Protection Level | IP67 |
Material | Front Cover: Metal Main Body: Plastic |
White Light Range | Up to 131ft(40 m) |
Dimensions | 82.6 mm × 77.1 mm × 215.7 mm (3.25" × 3.04" × 8.49") |
Weight | Approx. 415 g (0.91 lb.) |
