Home HD-TVI High Definition Cameras and DVRs HD-TVI Security Cameras Dome Cameras, HD TVI Indoor/Outdoor LTS CMHD3553DWE-ZF 5 MP Ultra-Low-Light Dome Camera

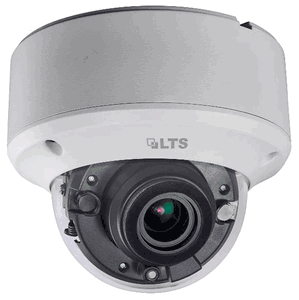

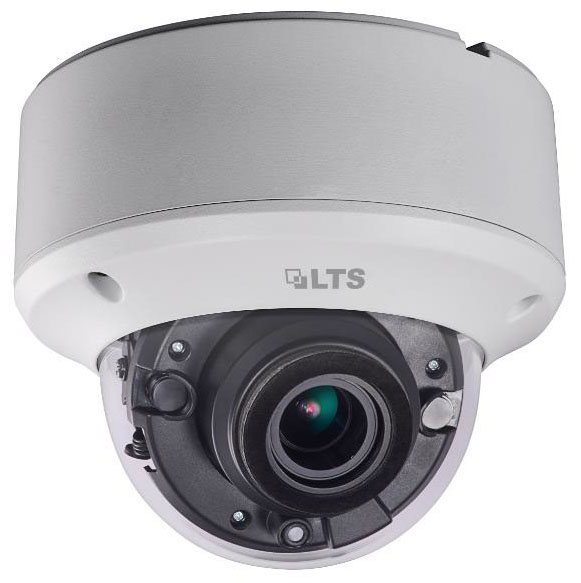

LTS CMHD3553DWE-ZF 5 MP Ultra-Low-Light Dome Camera
LTS CMHD3553DWE-ZF 5 MP Ultra-Low-Light Dome Camera
- 5 MP high performance CMOS
- Auto focus
- 2560 × 1944 resolution
- 2.7 mm to 13.5 mm motorized varifocal lens
- Matrix IR 2.0, smart IR, up to 197ft(60 m) IR distance
- 3D DNR, 130 dB true WDR
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP67, IK10
- OSD Menu via UTC technology with Platinum DVR
Model | CMHD3553DWE-ZF | |
Camera Series | Platinum Series | |
Camera Resolution | 5MP | |
Camera Technology | IP / Network | |
Camera Housing | Dome | |
Featured Product | No | |
Camera | ||
Image Sensor | 5 megapixel progressive scan CMOS | |
Signal System | PAL/NTSC | |
Resolution | 2560 (H) × 1944 (V) | |
Min. Illumination | Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR | |
Frame Rate | TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps CVI: 4 MP@25fps, 4 MP@30fps CVBS: PAL, NTSC | |
Shutter Time | PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s | |
Lens | 2.7 mm to 13.5 mm motorized varifocal lens | |
Horizontal Field of View | 92.3° to 29.3° | |
Lens Mount | φ 14 | |
Day & Night | IR cut filter | |
Angle Adjustment | Pan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355° | |
Synchronization | Internal synchronization | |
WDR (Wide Dynamic Range) | ≥ 130 dB | |
Menu | ||
AGC | Yes | |
Day/Night Mode | Auto/Color/BW (Black and White) | |
White Balance | Auto/Manual | |
BLC (Backlight Compensation) | Yes | |
WDR | Yes | |
3D DNR | Level 1 to 9 | |
Privacy Mask | 4 programmable privacy masks | |
Motion Detection | 4 programmable areas | |
Language | English | |
Functions | Brightness, Sharpness, 3D DNR, Mirror, Smart IR | |
Interface | ||
Video Output | 1 HD analog output | |
Switch Button | TVI/AHD/CVI/CVBS | |
General | ||
Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing) | |
Power Supply | 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC | |
Power Consumption | Max. 8 W | |
Protection Level | IP67, IK10 | |
Material | Metal | |
IR Range | Up to 197ft(60 m) | |
Communication | Up the coax, TVI output | |
Dimensions | Φ 145.2 mm × 124.1 mm (Φ 7.1" × 4.9") | |
Weight | Approx. 640 g (1.41 lb.) |
