Home HD-TVI High Definition Cameras and DVRs HD-TVI Security Cameras Dome Cameras, HD TVI Indoor/Outdoor LTS CMHD3423D-Z Platinum HD-TVI Varifocal Motorized Dome Camera with 2.1MP

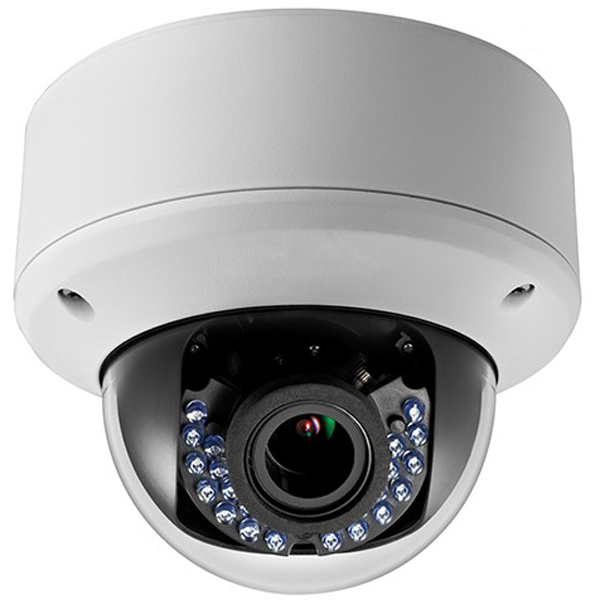

LTS CMHD3423D-Z Platinum HD-TVI Varifocal Motorized Dome Camera with 2.1MP
LTS CMHD3423D-Z Platinum HD-TVI Varifocal Motorized Dome Camera with 2.1MP
- 2.1MP High Definition
- 1920x1080P@30fps
- 2.8-12mm Varifocal Motorized Lens
- 42 IR LEDs up to 131ft (40m)
- True Day/Night
- Smart IR
- OSD Menu via UTC technology with Platinum HD-TVI DVR
- IP66 weatherproof
- Dual Voltage DC 12V / AC 24V
Model | CMHD3423D-Z |
Camera Series | Platinum Series |
Camera Resolution | 2.1MP / 1080P |
Camera Technology | TVI |
Camera Housing | Dome |
Featured Product | No |
Camera | |
Image Sensor | 1/2.7" CMOS |
Signal System | NTSC/PAL |
Effective Pixels | 1930(H)*1088(V) |
Min. Illumination | 0.01 Lux, 0 Lux with IR |
Shutter Speed | 1/30(1/25) s to 1/50,000 s |
Lens | Motorized Lens: 2.8-12mm Angle of View: 105.2°-32.8° |
Day & Night | ICR |
Synchronization | Internal |
Video Frame Rate | 1080p@30fps/1080p@25fps |
HD Video Output | 1 Analog HD Output |
S/N Ratio | More than 52dB |
Menu | |
Camera ID | On/off (0-255) |
AGC | Support |
D/N Mode | Color/BW/Smart |
White Balance | Auto/ User/ Push/ 8000K/ 6000K/ 4200K/ 3200K/HOLD |
Privacy Mask | On/ Off, maximum 2 zones |
Motion Detection | On/ Off |
BLC | Support |
Anti-Flicker | On/off |
Language | English/ Chinese |
Function | Digital noise reduction, Mirror |
General | |
Working Temperature | -40 °F - 140 °F (-40°C - 60 °C) |
Humidity | Humidity 90% or less (non-condensing) |
Power Supply | DC 12V |
Power Consumption | Max. 5W |
Weather Proof Ratings | IP66 |
IR Range | Up to 131ft(40m) |
Dimension | 5.7"×4.9" (145.3×124.2mm) |
Weight | 2.0lb(880g) |
