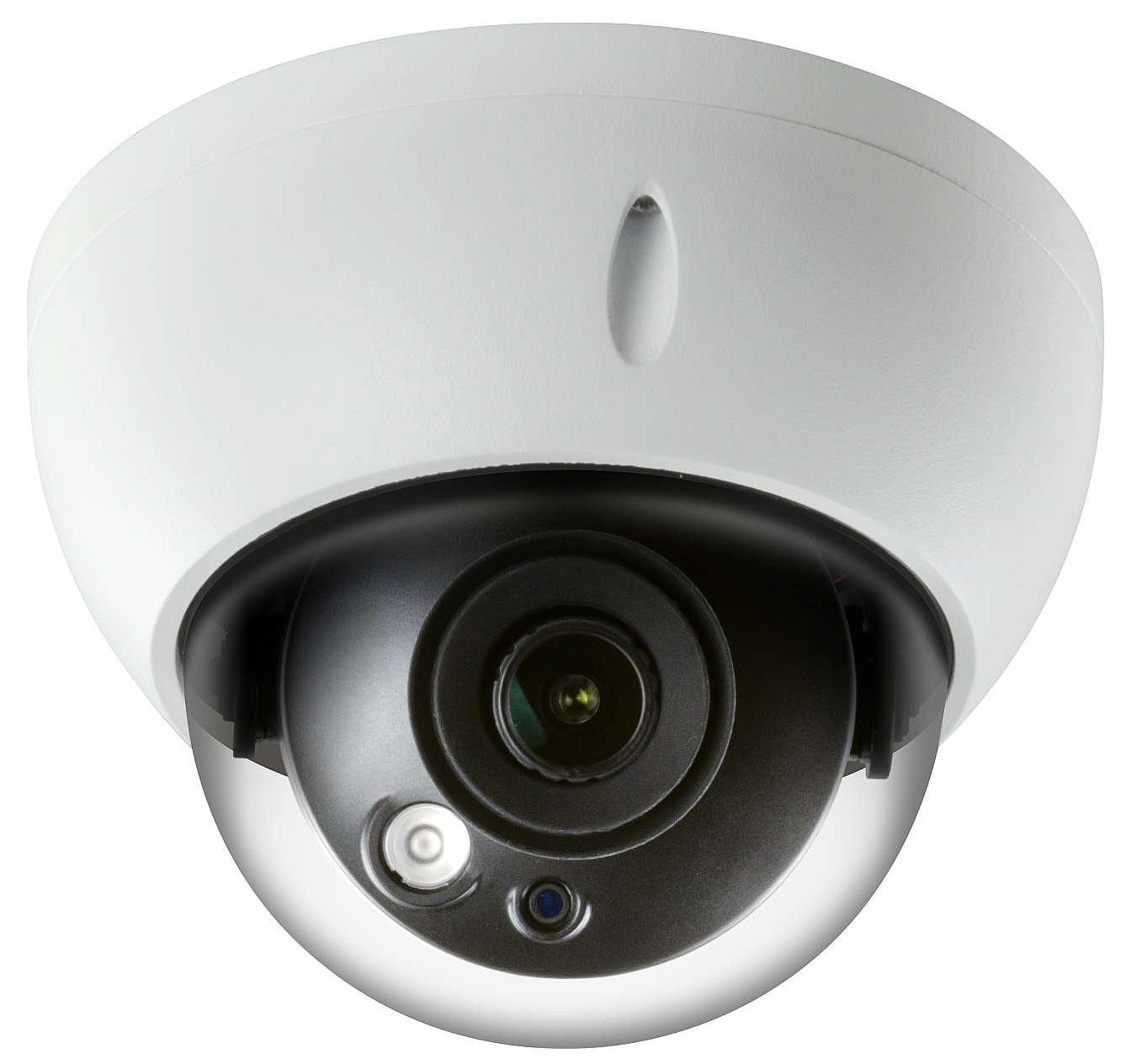

Eyemax CIV-E8132-W28 | 4K(8MP) CVI Outdoor IR Dome Camera, Starlight, True-WDR, Fixed Lens, UL-Listed, IR Range up to 98ft, IP67, IK10, DC12V

Model	CIV-E8132-W28
Camera
Image Sensor	1/2" CMOS
Effective Pixels	3840(H)�2160(V), 8MP
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/4s~1/100,000s NTSC: 1/3s~1/100,000s
Minimum Illumination	0.005Lux/F1.5, 30IRE, 0Lux IR on
S/N Ratio	More than 65dB
IR Distance	Up to 30m (98feet)
IR On/Off Control	Auto / Manual
IR LEDs	1
Lens
Lens Type	Fixed lens / Fixed iris
Mount Type	Board-in
Focal Length	2.8mm
Max Aperture	F1.6
Angle of View	H: 87� (110.8�)
Focus Control	Auto / Manual
Close Focus Distance	2500mm (1800mm, 6100mm) 98.43" (70.87")
Dori Distance
Note: The DORI distance is a �general proximity� of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
Detect	Definition � 25px/m (8px/ft) Distance � 2.8mm : 84m(276ft) / 3.6mm : 104m(341ft)
Observe	Definition � 63px/m (19px/ft) Distance � 2.8mm : 34m(112ft) / 3.6mm : 42m(138ft)
Recognize	Definition � 125px/m (38px/ft) Distance � 2.8mm : 17m(56ft) / 3.6mm : 21m(69ft)
Identify	Definition � 250px/m (76px/ft) Distance � 2.8mm : 8m(26ft) / 3.6mm : 10m(33ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation	Pan: 0� ~ 355� Tilt: 0� ~ 75� Rotation: 0� ~ 355�
Video
Resolution	8MP (3840�2160)
Frame Rate	15fps@4K, 20fps@6MP, 25/30fps@4MP
Video Output	1-channel BNC high definition video output / CVBS video output (DIP switch)
Day/Night	Auto (ICR) / Manual
OSD Menu	Multi-language
BLC Mode	BLC / HLC / WDR
WDR	120dB
Gain Control	AGC
Noise Reduction	2D/3D
White Balance	Auto / Manual
Smart IR	Auto / Manual
Certifications
Certifications	CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Inderface	1
Electrical
Power Supply	12V DC�30%
Power Consumption	Max 7W (12VDC, IR on)
Environmental
Operating Conditions	-30�C ~ +60�C (-22�F ~ +140�F) / Less than 90% RH * Start up should be done at above-30�C (-22�F)
Storage Conditions	-30�C ~ +60�C (-22�F ~ +140�F) / Less than 90% RH
Ingress Protection & Vandal Resistance	IP67 & K10
Construction
Casing	Aluminium
Dimensions	ϕ122mm�88.9mm (ϕ4.8"�3.5")
Net Weight	0.41kg (0.9lb)
Gross Weight	0.59kg (1.3lb)
