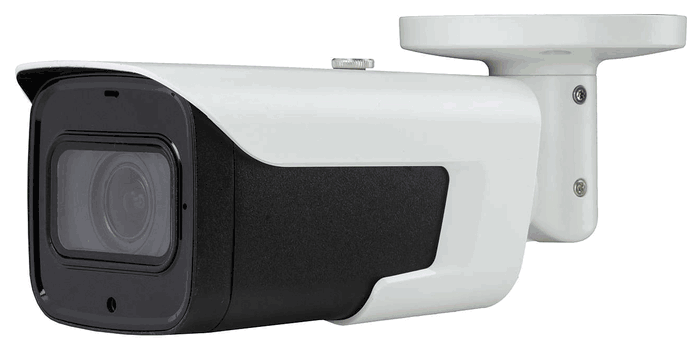

Eyemax CIR-ME8184V-W | 4K(8MP) CVI Outdoor IR Bullet Camera, Starlight, True WDR, Motorized 3.7~11mm, UL Listed, IR Range up to 262ft, IP67, Mic Built-in, DC12V/AC 24V

Model	CIR-ME8184V-W
Camera
Image Sensor	1/2" CMOS
Effective Pixels	3840(H)�2160(V), 8MP
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/4s~1/100,000s NTSC: 1/3s~1/100,000s
Minimum Illumination	0.005Lux/F1.5, 30IRE, 0Lux IR on
S/N Ratio	More than 65dB
IR Distance	Up to 80m (262feet)
IR On/Off Control	Auto / Manual
IR LEDs	4
Lens
Lens Type	Motorized lens / Fixed iris
Mount Type	Board-in
Focal Length	3.7-11mm
Max Aperture	F1.5
Angle of View	H: 112�~46�
Focus Control	Auto / Manual
Close Focus Distance	200mm 7.87"
Dori Distance
Note: The DORI distance is a �general proximity� of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
Detect	Definition : 25px/m (8px/ft) Distance : 83m(272ft) ~ 190m(623ft)
Observe	Definition : 63px/m (19px/ft) Distance : 33m(108ft) ~ 76m(249ft)
Recognize	Definition : 125px/m (38px/ft) Distance : 17m(56ft) ~ 38m(125ft)
Identify	Definition : 250px/m (76px/ft) Distance : 8m(26ft) ~ 19m(62ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation	Pan: 0� ~ 360� Tilt: 0� ~ 90� Rotation: 0� ~ 360�
Video
Resolution	8MP (3840�2160)
Frame Rate	15fps@4K, 20fps@6MP, 25/30fps@4MP
Video Output	1-channel BNC high definition video output / CVBS video output (DIP switch)
Day/Night	Auto (ICR) / Manual
OSD Menu	Multi-language
BLC Mode	BLC / HLC / WDR
WDR	120dB
Gain Control	AGC
Noise Reduction	2D/3D
White Balance	Auto / Manual
Smart IR	Auto / Manual
Certifications
Certifications	CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Inderface	1ch in & Built-in Mic
Electrical
Power Supply	AC 24V�30% / DC 12V�30%
Power Consumption	Max 15W (12V DC, IR on)
Environmental
Operating Conditions	-30�C ~ +60�C (-22�F ~ +140�F) / Less than 90% RH * Start up should be done at above-30�C (-22�F)
Storage Conditions	-30�C ~ +60�C (-22�F ~ +140�F) / Less than 90% RH
Ingress Protection & Vandal Resistance	IP67
Construction
Casing	Aluminium
Dimensions	244.1mm�90.4mm�90.4mm (9.61"�3.56"�3.56")
Net Weight	0.8kg (1.76lb)
Gross Weight	1.05kg (2.31lb)
