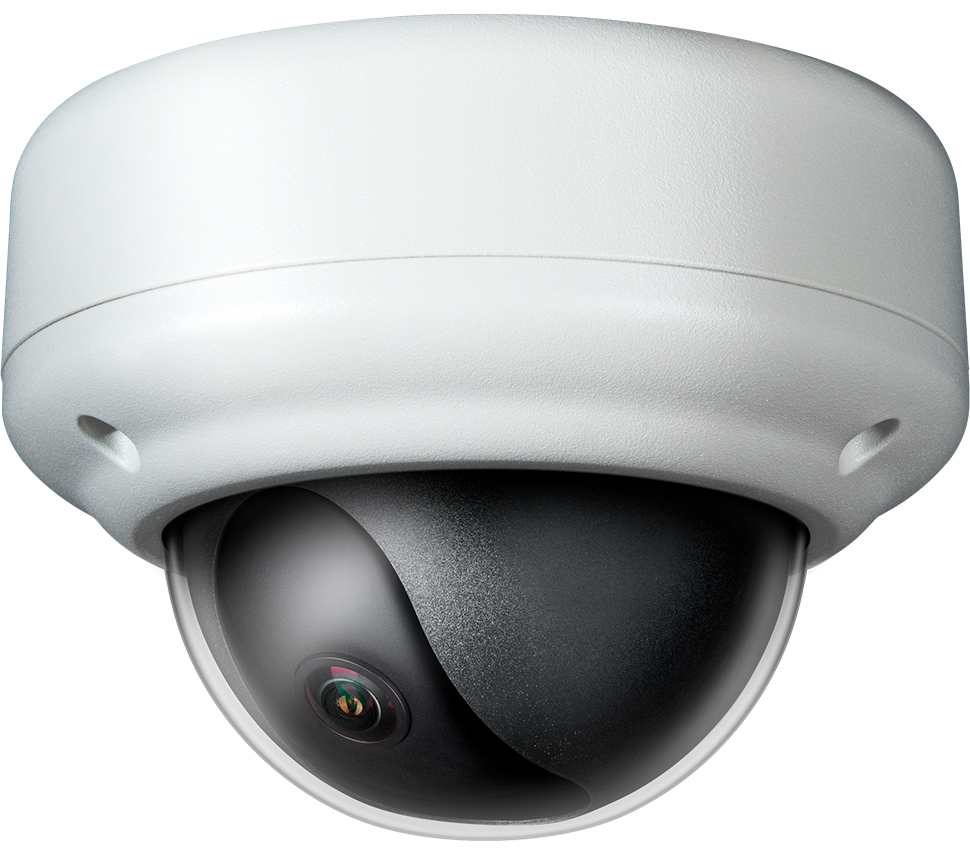

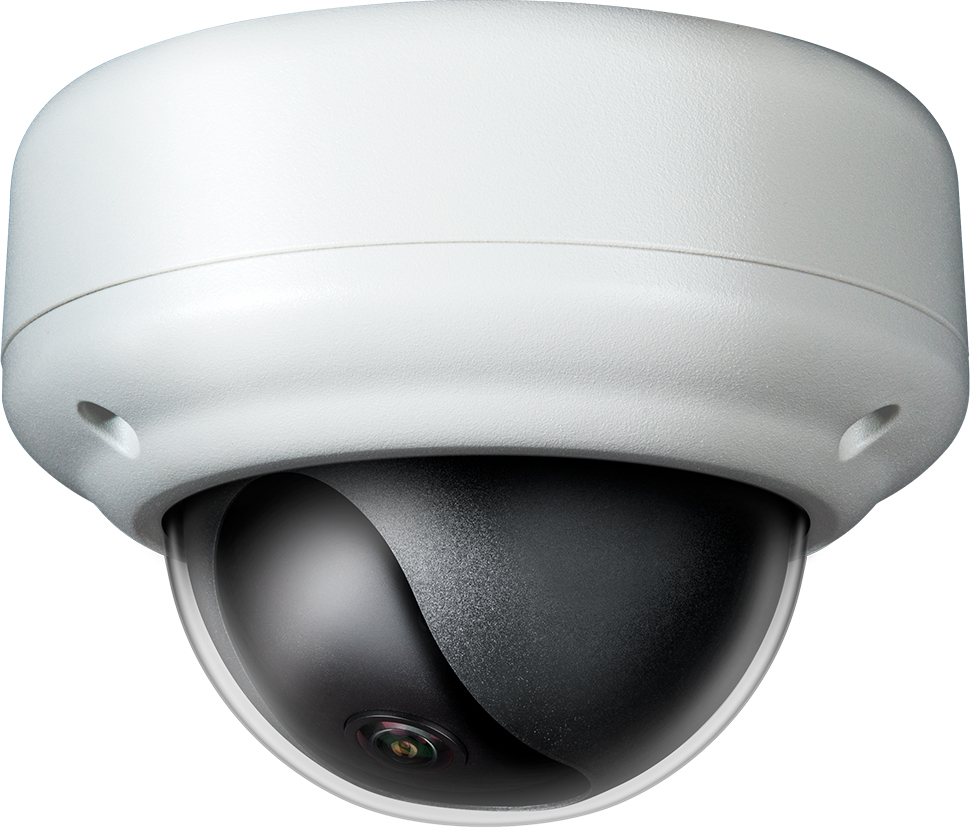

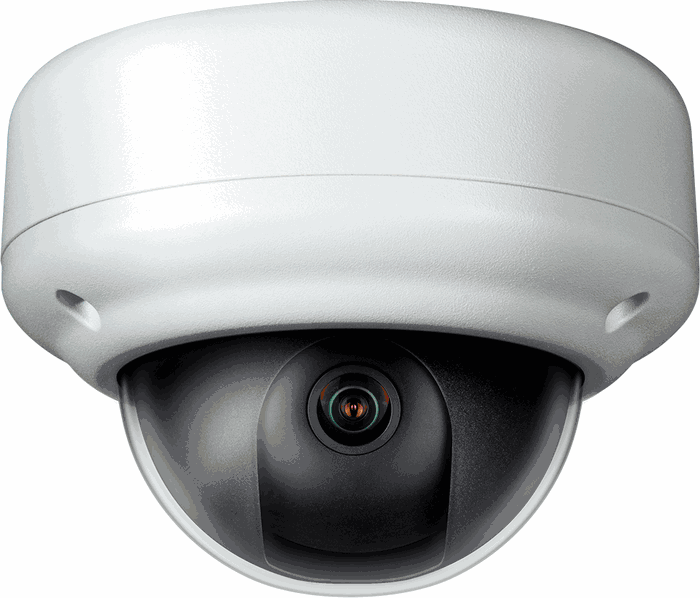

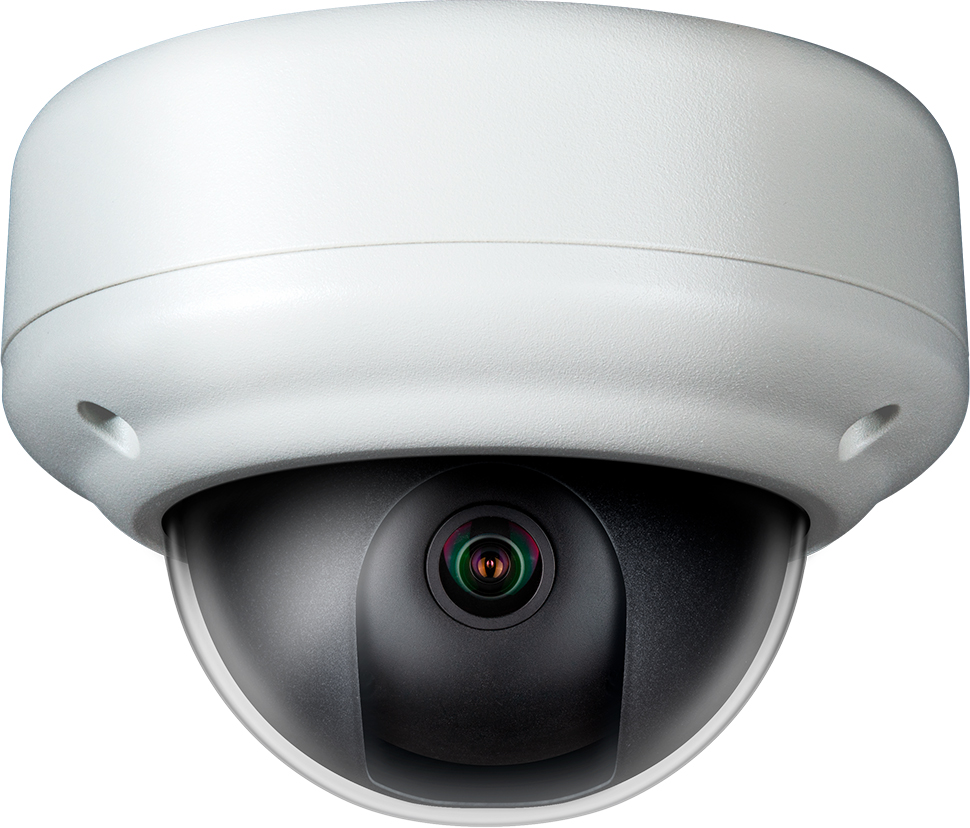

Clinton Electronics CE-VX180QHD 4MP EX-SDI 2.0 Panoramic 180° Vandal X
PANORAMIC 5MP LENSThe 1.7mm (ƒ2.0) True D/N Fixed Panoramic Lens provides an ultra-wide field of view. |
IP68 WEATHER RATEDQuad HD 1440p live view @ 30 FPS (30 FPS with WDR turned on). |
DUAL OUTPUTS
Get the best of both worlds with 4MP EX-SDI 2.0 and selectable HD Analog video outputs.
- 1/2.8 SONY Starvis 5.14MP CMOS Sensor
- 1440p @ 30fps Over RG59 Coax
- 1.7mm (2.0) Fixed True D/N Panoramic Lens
- Dual Video Outputs: 4MP EX-SDI 2.0 / 2MP EX-SDI 2.0 / HD-SDI & HD Analog / Analog (selectable)
- EXHD 2.0 4MP DSP
- OSD Menu Control via Built-In Joystick, CE-REMOTE or UCC*
- 3 Axis Adjustment
- DOL-WDR @ 30fps w/ Simultaneous Analog Output
- Mounts to large variety of Conduit Boxes
- RVM (Rated Voltage Monitoring)
- PoC (Power Over Coax)
- DC12V/AC24V
- IP68 Weather Rated
Model | CE-VX180QHD |
Camera | |
Image Sensor: | 1/2.8 SONY Starvis 5.14MP CMOS Sensor |
Resolution: | Quad HD: 1440p / 4MP |
Effective Pixels: | 2560 (H) x 1440 (V) |
Scanning System: | Progressive Scan |
S/N Ratio: | More than 52dB (AGC Off) |
Frame Rate: | 1440p: 30 FPS 1080p: 30 FPS |
Minimum Illumination: | Color: 1 Lux Black and White: 0.1 Lux |
Shutter Speed: | 1/30 1/30,000 sec. / AUTO |
Lens | |
Type: | Fixed True D/N |
Focal Range: | 1.7mm |
Max. Aperture Ratio: | 2.0 |
Field Of View: | 180° (Horizontal) 140° (Vertical) |
True Day / Night: | Yes |
DSP | |
DSP Version: | EXHD 4MP |
Menu Control | |
Joystick: | Built-in |
DIN Port: | For use with optional CE-REMOTE |
UCC: | UCC allows camera adjustments (OSD settings) to be made remotely through a UCC equipped DVR channel |
Connections | |
HD Video Output: | 1 BNC Output (Black & Gold): 4MP EX-SDI 2.0 / 2MP EX-SDI 2.0, EX-SDI & HD-SDI selectable |
Analog Video Output: | 1 BNC Output (Green & Silver): CVBS, A_HD, C_VI, T_VI Selectable |
Remote Control Input: | 1 DIN Input |
Power Requirements | |
Type: | DC12V, AC24V, or PoC (Power over Coax) |
Power Consumption: | DC12V: 200mA (Max +/- 10%) AC24V: 80mA (Max +/- 10%) PoC: 45mA (Max +/- 10%) |
Materials | |
Housing | Aluminum |
Dome | Polycarbonate |
Environmental | |
Weather Rating | IP68 |
Operating Temperature: | -20° to 122° F (-28.8° to 50° C) |
Operating Humidity: | 0% to 95% RH |
Standards | |
FCC: | Part 15B, Class A |
RoHS: | Compliant |
Whats Included | |
Torx Wrench 4 Mounting Screws 4 Wall Anchors Mounting Template | |
Physical | |
Product Dimensions: | 5.74" (Dia.) x 4.13" (H) 145.8mm (Dia.) x 104.9mm (H) |
Weight: | 1.7 lbs (0.77 kg) |
