High Definition Pan Tilt Zoom EX-SDI and HD-SDI Cameras Full 1080p Resolution

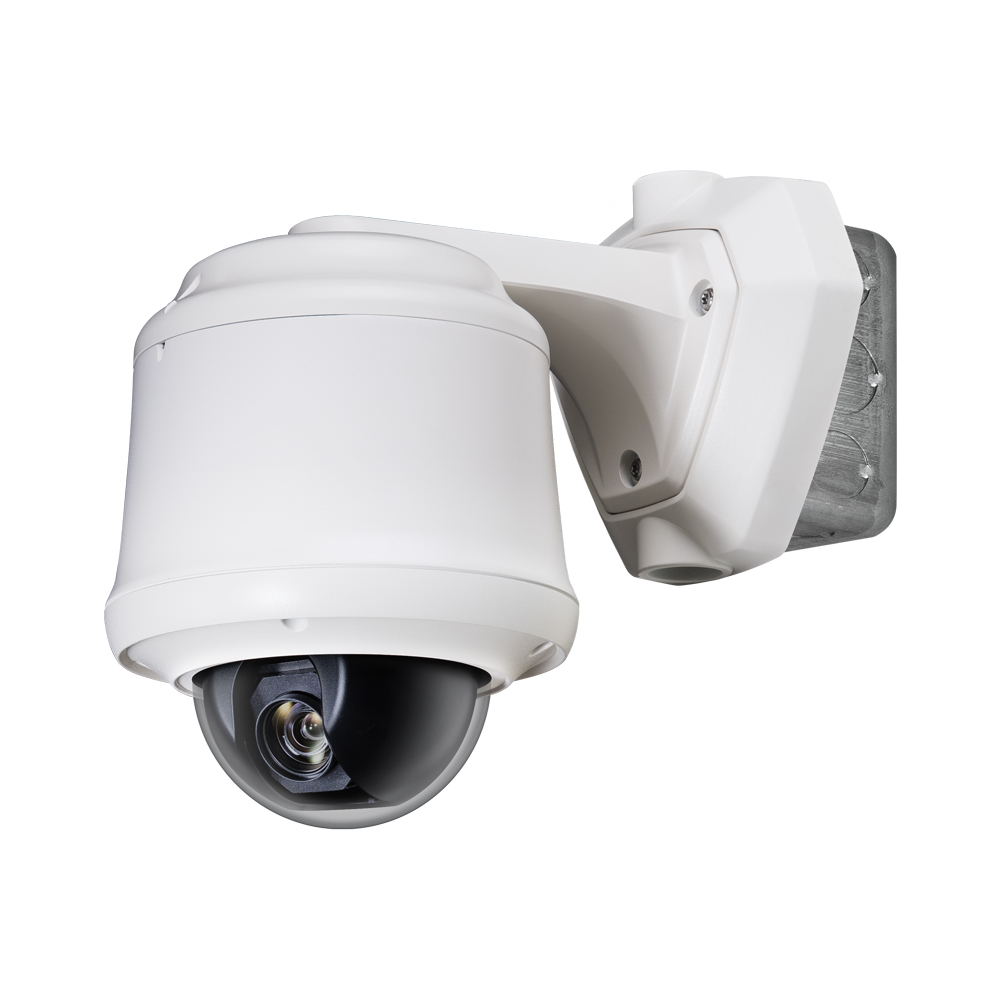

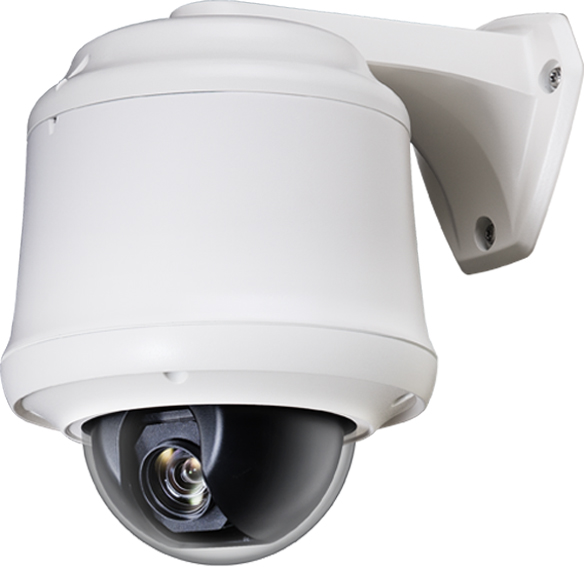

Clinton Electronics CE-PTZ10XHD HD-SDI TDN Indoor/Outdoor 10x PTZ

Additional View

Clinton Electronics CE-PTZ10XHD HD-SDI TDN Indoor/Outdoor 10x PTZ

SKU#

:

CE-PTZ10XHD

Availability

:

Usually ships the next business day

Power Supply

:

Quantity

:

Description
Features
Specifications
Downloads
Product Review

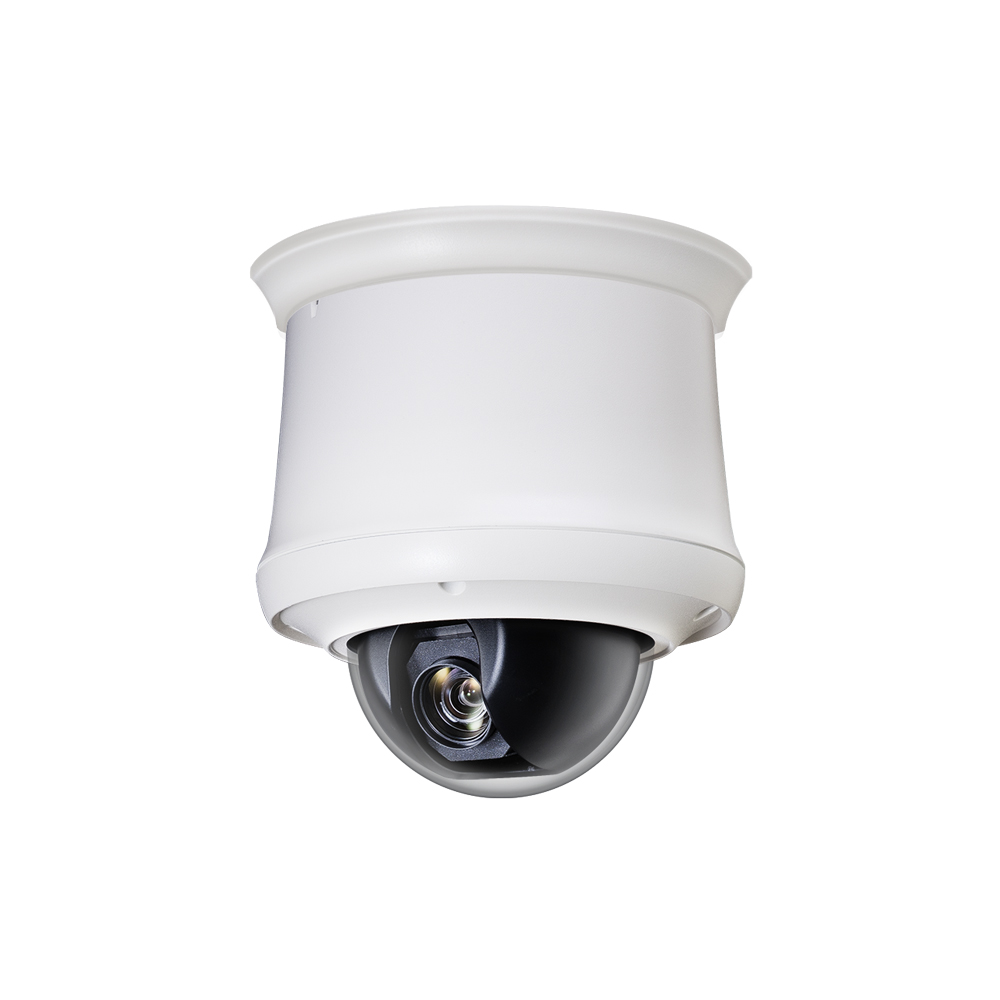

CEILING MOUNT

Use the included Ceiling Mount for Indoor applications that require the PTZ to be installed on a ceiling.

DOUBLE GANG OPTION

Use the included adapter bracket to mount to a double gang box. Features threaded conduit holes on the top and bottom.

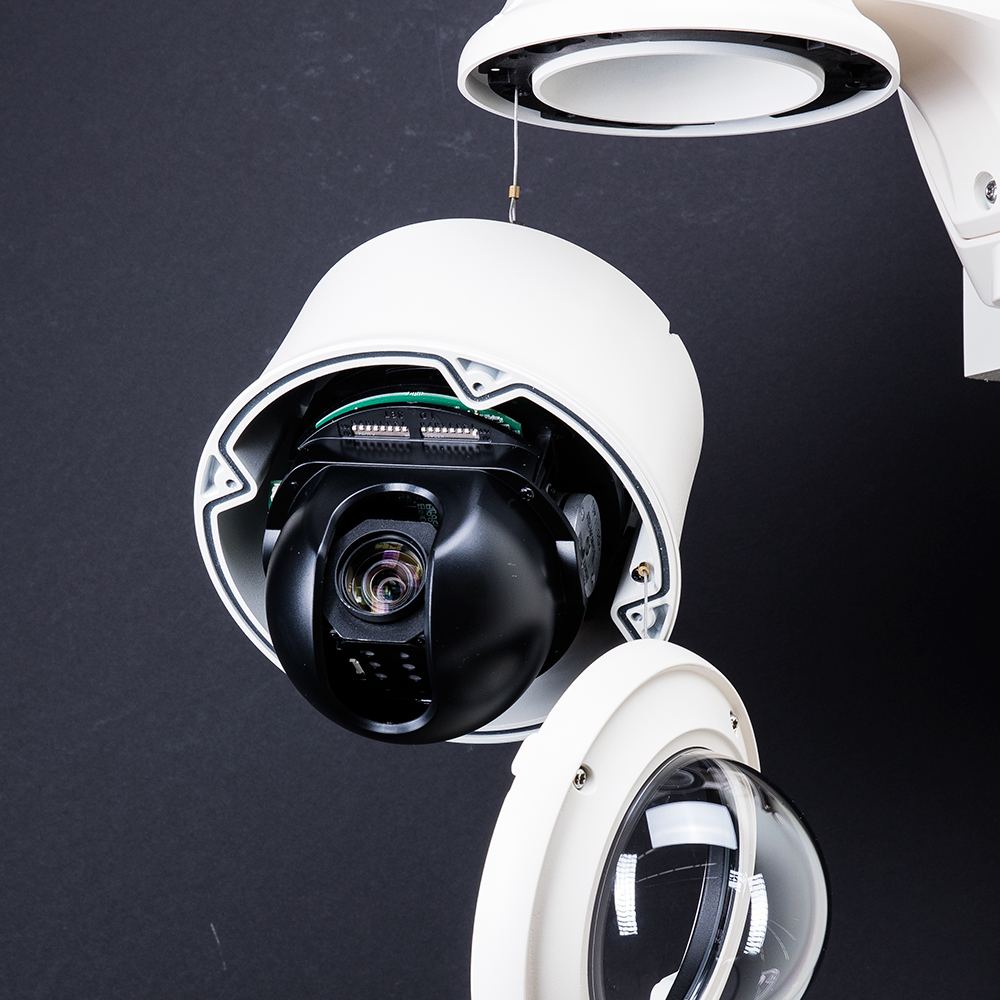

SAFETY CABLE

Built-in retractable safety cable that prevents the PTZ assembly from falling during installation or routine maintenance.

1/3" PANASONIC 2 Megapixel CMOS Sensor
1080p at 60 or 30 FPS; 720p at 60 FPS
HD Over Coax (1080p HD-SDI) or Analog (700 TVL)
5.1~51mm (�1.6~�1.8) True D/N Lens
10x Optical Zoom and 32x Digital Zoom
Temperature Controlled by Heater and Fan
255 Presets, 8 Tours, 8 Scans, 4 Patterns, 16 Areas, and 2 Alarms
360� Horizontal (Pan) and 0� to 90� Vertical (Tilt)
IP67 Weather-rated Aluminum Housing
Safety Cable prevents the PTZ from falling during Installation and Maintenance
Includes Wall Bracket and Double Gang Box Adapter
Includes Ceiling-Mountable Bracket
RS-485 or RS-422 Communication
2 Alarm Inputs / 2 Alarm Outputs
DC12V/AC24V (Power Supply Sold Separately)
Supports Multiple Protocols

Model	CE-PTZ10XHD
Camera
Image Sensor	1/3" PANASONIC CMOS
Resolution	HD-SDI: 1080p CVBS: 700 TVL
Effective Pixels	1944 (H) x 1092 (V) = 2.12 Megapixels
Scanning System	Progressive Scan
S/N Ratio	More than 50dB (AGC Off)
Frame Rate	1080p: 60 or 30 FPS 720P: 60 FPS
Minimum Illumination	Day: 0.5 Lux Night: 0.1 Lux
Shutter Speed	1/30(25) � 1/30,000 sec.
Lens
Type	Motorized Vari-Focal Auto-Focusing
Focal Range	5.1~51mm
Aperture Ratio	�1.6~�1.8
True Day / Night	Yes
Angle of View (Horizontal)	Wide: 54� Tele: 4.9�
Zoom Ratio	Optical: 10x Digital: 32x
Communication
Data Type	RS-485 or RS-422
Protocols	Clinton, Pelco D, Pelco P, AD
Baudrate	2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
Connections
HD Video Output	1 BNC Output (HD-SDI)
Composite Video Output	1 BNC Output
Alarm	2 Inputs / 2 Outputs
Power Requirements
Type	DC12V and AC24V
Power Consumption	DC12V: 15.6 Watts (1.3 Amps) AC24V: 12 Watts (0.5 Amp)
Physical
Product Dimensions (Without Wall Bracket)	6.75" (Dia.) x 7.25" (H) 172mm (Dia.) x 185mm (H)
Product Dimensions (With Wall Bracket)	6.75" (W) x 10.35" (H) x 10.25" (D) 172mm (W) x 262.89mm (H) x 260.35mm (D)
Product Weight (Without Wall Bracket)	4.85 lbs (2.2 kg)
Product Weight (With Wall Bracket)	6.8 lbs (3.084 kg)
Materials
Housing	Aluminum
Environmental
Weather Rating	IP67
Operating Temperature	-40� to 140� F (-40� to 60� C)
Operating Humidity	0% to 90% RH
What's Included
	Wrench 2 Rubber Gaskets 2 Dome Seals Key for Dome Seals 7 Mounting Screws 1 Safety Screw Wall Bracket Double Gang Adapter
Warranty & Support
Warranty	3 Year Warranty w/1st Year Advance Replacement
Technical Support	Free Lifetime Technical Support via Phone (1-800-549-6393)
