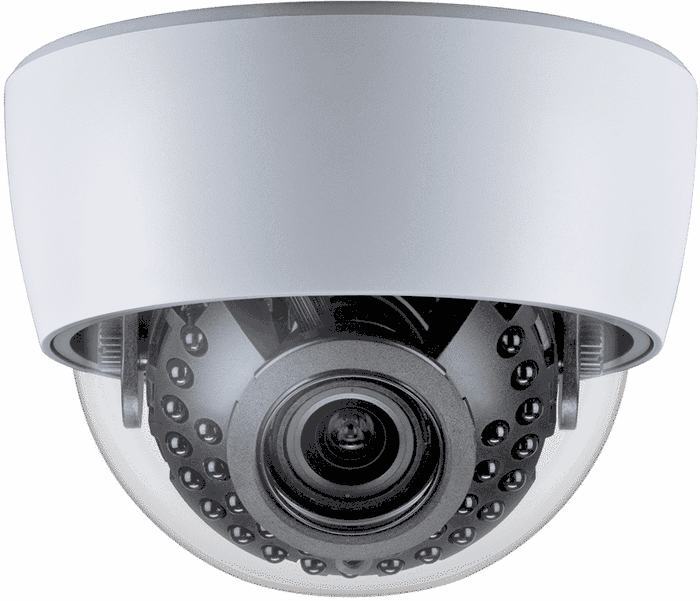

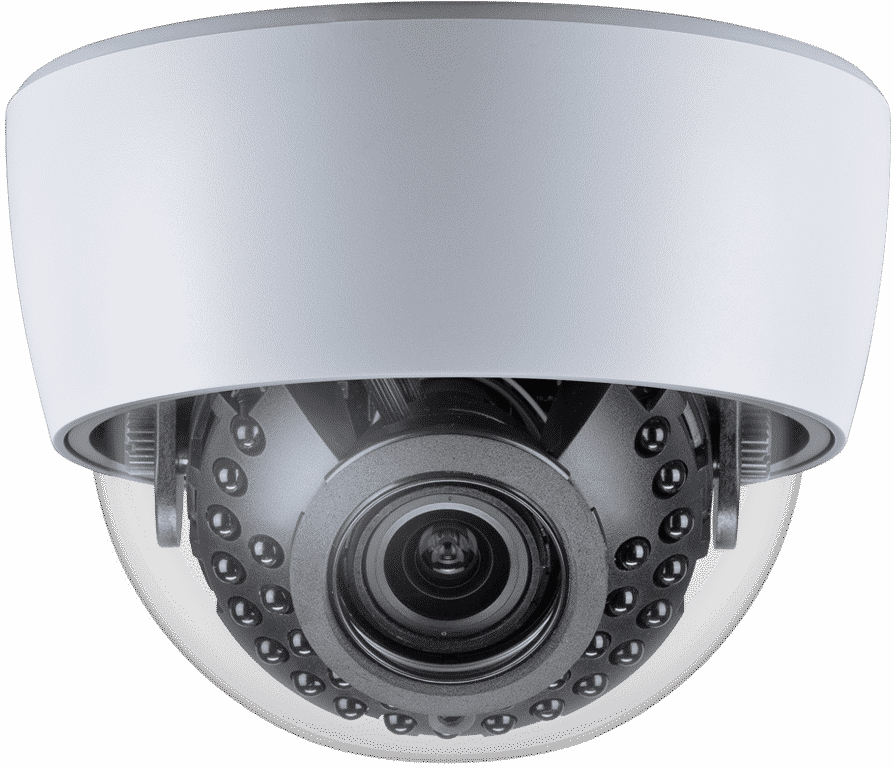

Clinton Electronics CE-IDX30 NX4 IR IDX - White
Clinton Electronics CE-IDX30 NX4 IR IDX - White
- 1/3" Sharp 960H CCD Sensor
- 700 TVL Resolution
- 29 IR LEDs
- 2.8~12mm (ƒ1.4) True Day / Night Lens
- NX4 Digital Signal Processor
- OSD Menu Control via Built-in Joystick or CE-REMOTE
- 3 Axis Adjustment
- Mounting Plate
- DC12V/AC24V
- UL Listed
Model | CE-IDX30 |
Camera | |
Image Sensor | 1/3" Sharp 960H CCD |
Resolution | 700 TVL |
Effective Pixels | 976 (H) x 494 (V) |
Scanning System | 2:1 Interlace |
S/N Ratio | 52dB (AGC Off) |
Minimum Illumination | Color: 0.15 Lux Sens-Up: 0.0006 Lux |
Shutter Speed | AUTO, 1/60, 1/50 1/100,000 sec. |
Lens | |
Type | Vari-Focal |
Focal Range | 2.8~12mm |
Max. Aperture Ratio | ƒ1.4 |
True Day / Night | Yes |
IR LEDs | |
Quantity | 29 IR LEDs |
DSP | |
DSP Version | NX4 |
Menu Control | |
Joystick | Built-in |
DIN Port | For use with optional CE-REMOTE |
Connections | |
Composite Video Output | 1 BNC Output |
Remote Control Input | 1 DIN Input |
Power Requirements | |
Type | DC12V or AC24V |
Power Consumption | DC12V: 520mA (6.24 Watts) AC24V: 210mA (5.04 Watts) |
Physical | |
Product Dimensions | 4.8" (Dia.) x 3.7" (H) 121.9mm (Dia.) x 93.9mm (H) |
Product Weight | 0.7 lb (317.515 g) |
Materials | |
Housing | Plastic |
Dome | Polycarbonate |
Mounting | |
Included Mounts | Includes Mounting Plate |
Environmental | |
Operating Temperature | 32° to 113° F (0° to 45° C) |
Operating Humidity | 0% to 90% RH |
Standards | |
FCC | Part 15B, Class A |
RoHS | Compliant |
UL | Listed |
Whats Included | |
Mounting Plate Mounting Template BNC Test Cable 4 Mounting Screws | |
Warranty & Support | |
Warranty | 3 Year Warranty w/1st Year Advance Replacement |
Technical Support | Free Lifetime Technical Support via Phone (1-800-549-6393) |
