Home EX-SDI and HD-SDI Digital Video Recorders and Cameras EX-SDI and HD-SDI Dome Cameras Clinton Electronics CE-IDX1HDBL EX-SDI 2.0 IDX Lite - Black

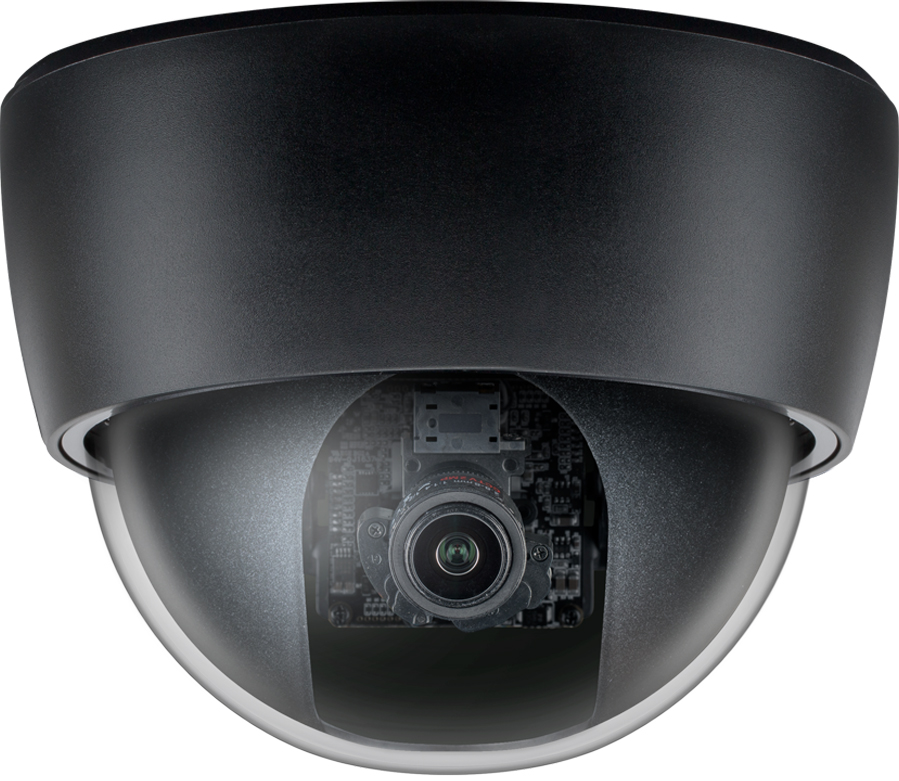

Clinton Electronics CE-IDX1HDBL EX-SDI 2.0 IDX Lite - Black
MOTORIZED 3MP LENS2.8~8mm (ƒ1.6) True D/N Autofocus Lens |
DUAL OUTPUTSGet the best of both worlds with EX-SDI 2.0 and HD Analog video outputs. |
FLEXIBLE INSTALLThe IDX mounting plate installs on Single Gang, Double Gang, 3-1/4" & 3-1/2", or 4" Oct/Rd Conduit Boxes. |
30 FPS / 30 FPS WDRFull HD 1080p live view @ 30 FPS (30 FPS with WDR turned on). |
- 1/2.8" SONY Starvis 2.13 Megapixel CMOS Sensor
- 1080p @ 30fps Over RG59 Coax
- 2.8~8mm (ƒ1.6) True D/N Autofocus Lens
- EX-SDI 2.0 / HD-SDI & HD Analog outputs
- EXHD Lite 2.0
- OSD Menu Control via Built-In Joystick, CE-REMOTE or UCC*
- RVM (Rated Voltage Monitoring)
- DC12V/AC24V
- UL Listed
Model | CE-IDX1HDBL |
Camera | |
Image Sensor | 1/2.8" SONY Starvis 2.13 Megapixel CMOS Sensor |
Resolution | 1080p |
Effective Pixels | 1944 (H) x 1092 (V) |
Scanning System | Progressive Scan |
S/N Ratio | More than 52dB (AGC Off) |
Frame Rate | 1080p: 30 FPS 720p: 30 FPS |
Minimum Illumination | Color: 1 Lux (Sens-Up x32) Black and White: 0.1 Lux (Sens-Up x32) |
Shutter Speed | 1/30 - 1/60,000 sec. / AUTO |
Lens | |
Type | Motorized Vari-Focal Autofocus |
Focal Range | 2.8~8mm |
Max. Aperture Ratio | ƒ1.6 |
Field Of View | 114.2° ~ 54.7° (Horizontal) |
DSP | |
DSP Version | EXHD Lite 2.0 |
Menu Control | |
Joystick | Built-in |
DIN Port | For use with optional CE-REMOTE |
UCC | UCC allows camera adjustments (zoom/focus & OSD settings) to be made remotely through a UCC equipped DVR channel |
Connections | |
HD Video Output | 1 BNC Output (Black & Gold): EX-SDI 2.0, EX-SDI, HD-SDI Selectable |
Composite Video Output | 1 BNC Output (Green & Silver): CVBS (1,000 TVL), A_HD, C_VI, T_VI Selectable |
Remote Control Input | 1 DIN Input |
Power Requirements | |
Type | DC12V and AC24V |
Power Consumption | DC12V: 3.6 Watts (0.3 Amp) AC24V: 4.8 Watts (0.2 Amp) |
Physical | |
Product Dimensions | 4.8" (Dia.) x 3.7" (H) 121.9mm (Dia.) x 93.9mm (H) |
Product Weight | 0.6 lb (0.27 kg) |
Materials | |
Housing | Plastic |
Dome | Polycarbonate |
Mounting | |
Included Mounts | Includes Mounting Plate |
Environmental | |
Operating Temperature | 32° to 113° F (0° to 45° C) |
Operating Humidity | 0% to 90% RH |
Standards | |
FCC | Part 15B, Class A |
RoHS | Compliant |
UL | Listed |
What’s Included | |
Mounting Plate Mounting Template BNC Test Cable 4 Mounting Screws | |
Warranty & Support | |
Warranty | 3 Year Warranty w/1st Year Advance Replacement |
Technical Support | Free Lifetime Technical Support via Phone (1-800-549-6393) |
